The "RFC" (request for comments) process is intended to provide a consistent and controlled path for changes to Amaranth (such as new features) so that all stakeholders can be confident about the direction of the project.

Many changes, including bug fixes and documentation improvements can be implemented and reviewed via the normal GitHub pull request workflow.

Some changes though are "substantial", and we ask that these be put through a bit of a design process and produce a consensus among the Amaranth community.

The responsibility for evolving an Amaranth "subsystem" (a clearly defined part of the Amaranth project) lies on a subsystem maintainer. The assignment of maintainers to subsystems is:

  • Core: Catherine @whitequark
    • The "core" subsystem includes the HDL frontend, backend, and simulator, as well as the build and platform systems.
    • This covers the amaranth-lang/amaranth repository and the amaranth Python package.
  • SoC: Jean-François @jfng
    • The "SoC" subsystem includes the SoC infrastructure.
    • This covers the amaranth-lang/amaranth-soc repository and the amaranth_soc Python package.
  • Other repositories and Python packages are not currently covered by the RFC process and changes are implemented on an ad-hoc basis.

Table of Contents

When you need to follow this process

You need to follow this process if you intend to make "substantial" changes to any of the subsystems listed above.

What constitutes a "substantial" change is evolving based on community norms and varies depending on what part of the ecosystem you are proposing to change, but may include the following:

  • Any semantic or syntactic change to the language (amaranth.hdl) that is not a bugfix.
  • Behavioral changes to the standard library (amaranth.lib).
  • Behavioral changes to the simulator interface (amaranth.sim).
  • Behavioral changes to the toolchain interface (amaranth.vendor).

Some changes do not require an RFC:

  • Rephrasing, reorganizing, refactoring, or otherwise "changing shape does not change meaning".
  • Additions that strictly improve objective, numerical quality criteria (warning removal, speedup, better platform coverage, handling more errors, etc.)

If you submit a pull request to implement a new feature without going through the RFC process, it may be closed with a polite request to submit an RFC first. When in doubt, please open an issue to discuss the feature first and the subsystem maintainer will say if the change requires an RFC or not.

Before creating an RFC

A hastily-proposed RFC can hurt its chances of acceptance. Low quality proposals, proposals for previously-rejected features, or those that don't fit into the near-term roadmap, may be quickly rejected, which can be demotivating for the unprepared contributor. Laying some groundwork ahead of the RFC can make the process smoother.

Although there is no single way to prepare for submitting an RFC, it is generally a good idea to pursue feedback from other project developers beforehand, to ascertain that the RFC may be desirable; having a consistent impact on the project requires concerted effort toward consensus-building.

The most common preparations for writing and submitting an RFC include talking the idea over on our IRC channel, #amaranth-lang at libera.chat, or opening an issue on the corresponding repository to gather feedback.

What the process is

In short, to get a major feature added to Amaranth, one must first get the RFC merged into the RFC repository as a markdown file. At that point the RFC is "active" and may be implemented with the goal of eventual inclusion into Amaranth.

  • Fork the RFC repository.
  • Copy 0000-template.md to text/0000-my-feature.md (where "my-feature" is descriptive). Don't assign an RFC number yet; This is going to be the PR number and we'll rename the file accordingly if the RFC is accepted.
  • Fill in the RFC. Put care into the details: RFCs that do not present convincing motivation, demonstrate lack of understanding of the design's impact, or are disingenuous about the drawbacks or alternatives tend to be poorly-received.
  • Submit a pull request. As a pull request the RFC will receive design feedback from the larger community, and the author should be prepared to revise it in response.
  • Now that your RFC has an open pull request, use the issue number of the PR to update your 0000- prefix to that number.
  • Build consensus and integrate feedback. RFCs that have broad support are much more likely to make progress than those that don't receive any comments. Feel free to reach out to the RFC assignee in particular to get help identifying stakeholders and obstacles.
  • RFCs rarely go through this process unchanged, especially as alternatives and drawbacks are shown. You can make edits, big and small, to the RFC to clarify or change the design, but make changes as new commits to the pull request, and leave a comment on the pull request explaining your changes. Specifically, do not squash or rebase commits after they are visible on the pull request.
  • At some point, the subsystem maintainer will make a decision on the disposition for the RFC (merge, close, or postpone).
    • This step is taken when enough of the tradeoffs have been discussed that the subsystem maintainer is in a position to make a decision. That does not require consensus amongst all participants in the RFC thread (which is usually impossible). However, the argument supporting the disposition on the RFC needs to have already been clearly articulated, and there should not be a strong consensus against that position.

The RFC life-cycle

Once an RFC becomes "active" then authors may implement it and submit the feature as a pull request to the corresponding repository. Being "active" is not a rubber stamp, and in particular still does not mean the feature will ultimately be merged; it does mean that in principle all the major stakeholders have agreed to the feature and are amenable to merging it.

Furthermore, the fact that a given RFC has been accepted and is "active" implies nothing about what priority is assigned to its implementation, nor does it imply anything about whether a developer has been assigned the task of implementing the feature. While it is not necessary that the author of the RFC also write the implementation, it is by far the most effective way to see an RFC through to completion: authors should not expect that other project developers will take on responsibility for implementing their accepted feature.

Modifications to "active" RFCs can be done in follow-up pull requests. We strive to write each RFC in a manner that it will reflect the final design of the feature; but the nature of the process means that we cannot expect every merged RFC to actually reflect what the end result will be at the time of the next major release.

In general, once accepted, RFCs should not be substantially changed. Only very minor changes should be submitted as amendments. More substantial changes should be new RFCs, with a note added to the original RFC. Exactly what counts as a "very minor change" is up to the subsystem maintainers to decide.

Reviewing RFCs

While the RFC pull request is up, the subsystem maintainers may schedule meetings with the author and/or relevant stakeholders to discuss the issues in greater detail, and the topic may be discussed at weekly meetings. In either case a summary from the meeting will be posted back to the RFC pull request.

The subsystem maintainer makes final decisions about RFCs after the benefits and drawbacks are well understood. These decisions can be made at any time, but the subsystem maintainer will regularly issue decisions. When a decision is made, the RFC pull request will either be merged or closed. In either case, if the reasoning is not clear from the discussion in thread, the subsystem maintainer will add a comment describing the rationale for the decision.

Merging an RFC

Once the decision is made to merge an RFC, the text must be prepared first. To do this:

  • Update the RFC text to reflect any changes that had to be made to achieve consensus.
  • Ensure that the "Unresolved questions" section does not have any unanswered questions.
  • Create a tracking issue in the relevant repository.
  • Fill in the RFC header fields (start date, RFC PR, tracking issue).
  • Rename the RFC filename to include the number of the RFC PR instead of 0000.
    • This step can be done either as a part of the merge commit in the next step, or by the RFC author right after submitting the PR.
  • Merge the RFC PR with the commit message "RFC #NNNN: Title of the RFC".
    • This step can only be done by someone with the write access to the RFC repository.

Implementing an RFC

Some accepted RFCs represent vital features that need to be implemented right away. Other accepted RFCs can represent features that can wait until some arbitrary developer feels like doing the work. Every accepted RFC has an associated issue tracking its implementation in the corresponding repository.

The author of an RFC is not obligated to implement it. Of course, the RFC author (like any other developer) is welcome to post an implementation for review after the RFC has been accepted.

If you are interested in working on the implementation for an "active" RFC, but cannot determine if someone else is already working on it, feel free to ask (e.g. by leaving a comment on the associated issue).

RFC Postponement

Some RFC pull requests are tagged with the "postponed" label when they are closed (as part of the rejection process). An RFC closed with "postponed" is marked as such because we want neither to think about evaluating the proposal nor about implementing the described feature until some time in the future, and we believe that we can afford to wait until then to do so. Postponed pull requests may be re-opened when the time is right. We don't have any formal process for that, you should ask the subsystem maintainer.

Usually an RFC pull request marked as "postponed" has already passed an informal first round of evaluation, namely the round of "do we think we would ever possibly consider making this change, as outlined in the RFC pull request, or some semi-obvious variation of it." (When the answer to the latter question is "no", then the appropriate response is to close the RFC, not postpone it.)

Acknowledgements

The process described in this document is based on the Rust RFC process. It has been simplified to match the needs of the much smaller Amaranth community; in particular, policy (including the RFC process itself) is not currently defined through the RFC process.

License

This repository is licensed under the MIT license.

Aggregate data structure library

Amendments The behavior described in this RFC was updated by RFC #8, RFC #9, and RFC #15.

Summary

Add a rich set of standard library classes for accessing hierarchical aggregate data an idiomatic way, to fill one of the two major use cases of Record while avoiding its downsides.

See also RFC #2.

Motivation

Amaranth has a single data storage primitive: Signal. A Signal can be referenced on the left hand and the right hand side of an assignment, and so can be its slices. Although a signal serves the role of a numeric and bit container type fine, designs often include signals used as bit containers whose individual bits are named and have unique meanings. A mechanism that allows referring to such bit fields by name is essential.

Currently, the role of this mechanism is served by Record. However, Record has multiple major drawbacks:

  1. Record attempts to do too much: it is both a mechanism for controlling representation (including implicitly casting a record to a value) and a mechanism for defining interfaces (specifying signal directions and facilitating connections between records).

    These mechanisms should be defined separately, since the only aspect they have in common is using a container class that consists of multiple named fields. Conflating the two mechanisms constraints the design space, making addressing the other drawbacks impossible, and the ill-defined scope encourages bugs in downstream code.

  2. Record has limited composability: records can only be nested within each other. Practical designs (in particular, implementations of protocols) use data with complex representation beyond nested sequences of fields: these include overlaid sequences of fields (where interpretation alternates based on some discriminant) and arrays of fields (where a field can be indexed by a non-constant), where any individual field can have a complex representation itself.

    Record is structured as a sequence of Signals, which is a part of its API. As such, it cannot support overlaid fields, and implementing support for arrays of fields is challenging.

  3. Record has limited introspectability: while its layout member can be accessed to enumerate its fields, the results do not include field boundaries, and the types of the returned shape-castable objects are preserved only as an implementation detail. Layout objects themselves are also not shape-castable.

    Record and Layout are structured as a sequence of Signals rather than a view into an underlying bit container, which is reflected in its API. Thus, Layout does not fit into Amaranth's data model, which concerns individual values.

  4. Record comes with its own storage: while its fields argument can be used to substitute the signals that individual fields are pointing to (in an awkward and error-prone way), it is still a collection of Signals. Using Record to impose structure on an existing Value requires a Module and a combinatorial assignment. This is an unnecessary complication, especially in helper functions.

  5. Record does not play well with Python's type annotations. Amaranth developers often inherit from Record as well as Layout, but in both cases the class definition syntax is usually little more than a way to define a callable returning a Record with a specific layout, and provides no benefits for IDE users.

  6. Record reserves a lot of names, including commonly used names like connect, any, all, and matches. Conversely, it defines a lot of arithmetic methods that are rarely if ever used on field containers.

  7. Layout's DSL is very amorphous. It passes around variable length tuples. The second element of these tuples (the shape) can be another Layout, which is neither a shape nor a shape-castable object.

  8. Neither Record nor Layout allow defining fields whose shapes are arbitrary ShapeCastable classes.

Since these drawbacks are entrenched in the public API and heavily restrict usefulness of Record as a mechanism for specifying data representation, a new mechanism must replace it.

Overview and examples

This section shows a bird's eye view of the new syntax and behavior proposed in this RFC. The detailed design is described afterwards.

from amaranth import *
from amaranth.lib import data


# Declaring a simple structure:
class Float32(data.Struct):
    fraction: unsigned(23)
    exponent: unsigned(8)
    sign: unsigned(1)


# Defining a signal with the structure above:
flt_a = Float32()

# Reinterpreting an existing value with the same structure:
flt_b = Float32(Const(0b00111110001000000000000000000000, 32))

# Referencing and updating structure fields by name:
with m.If(flt_b.fraction > 0):
    m.d.comb += [
        flt_a.sign.eq(1),
        flt_a.exponent.eq(127)
    ]


# Declaring a simple union, referencing an existing structure:
class FloatOrInt32(data.Union):
    float: Float32
    int: signed(32)


# Using the union to bitcast an IEEE754 value from an integer:
f_or_i = FloatOrInt32()
is_sub_1 = Signal()
m.d.comb += [
    f_or_i.int.eq(0x41C80000),
    is_sub_1.eq(f_or_i.float.exponent < 127) # => 1
]


class Op(enum.Enum):
  ADD = 0
  SUB = 1


# Programmatically declaring a structure layout:
adder_op_layout = data.StructLayout({
    "op": Op,
    "a": Float32,
    "b": Float32
})

# Using the layout defined above to define appropriately sized storage...
adder_op_storage = Signal(adder_op_layout)
len(adder_op_storage) # => 65

# ... and wrap it for the fields to be accessible.
adder_op = data.View(adder_op_layout, adder_op_storage)
m.d.comb += [
    adder_op.op.eq(Op.SUB),
    adder_op.a.eq(flt_a),
    adder_op.b.eq(flt_b)
]

Detailed design

This RFC proposes a number of language and library additions:

  • Adding a ShapeCastable interface, similar to ValueCastable;
  • Adding classes that hierarchically describe representation of aggregate values: named field containers with non-overlapping fields (structs), named field containers with overlapping fields (unions), and indexed field containers (arrays);
  • Adding a wrapper class that accepts a Value (or a ValueCastable object) and provides accessors that slice it according to the corresponding aggregate representation;
  • Adding an ergonomic and IDE-compatible interface for building descriptions of non-parametric layouts of aggregate values.

User-defined shape-castable objects

ShapeCastable is an interface for defining Shape-like values outside of the core Amaranth language. It is functionally identical to ValueCastable, and could be used like:

from amaranth import *


class Layout(ShapeCastable):
    def __init__(self, fields):
        self.fields = fields

    def as_shape(self):
        return unsigned(sum(len(field) for field in self.fields))

Value layout descriptions

Aggregate value layouts are represented using two classes: amaranth.lib.data.Field and amaranth.lib.data.Layout:

  • A Field(shape_castable, offset=0) object describes a field of the given shape starting at bit number offset of the aggregate value.
  • A Layout() object describes an abstract aggregate value. It can be iterated, returning (name, field) or (index, field) pairs; or indexed (__getitem__) by the name or index of the field. It has a .size in bits, determined by the type of the layout, and is shape-castable, being converted to unsigned(layout.size()).
    • A StructLayout(members={"name": shape_castable}) object describes an aggregate value with non-overlapping named fields (struct). The fields are placed at offsets such that they immediately follow one another, from least significant to most significant.
    • A UnionLayout(members={"name": shape_castable}) object describes an aggregate value with overlapping named fields (union). The fields are placed at offset 0.
    • An ArrayLayout(element=shape_castable, length=1) object describes an aggregate value with indexed fields (array). The fields all have identical shape and are placed at offsets such that they immediately follow one another, from least significant to most significant.
    • A FlexibleLayout(fields={"name": field, 0: field}, size=16) object describes a aggregate value with fields arbitrarily placed within its bounds.

The representation of a discriminated union could be programmatically constructed as follows:

import enum
from amaranth.lib import data


class Kind(enum.Enum):
    ONE_SIGNED = 0
    TWO_UNSIGNED = 1


layout = data.StructLayout({
    "kind": Kind,
    "value": data.UnionLayout({
        "one_signed": signed(2),
        "two_unsigned": data.ArrayLayout(unsigned(1), 2)
    })
})

Aggregate value access

Aggregate values are manipulated through the amaranth.lib.data.View class. A View(layout, value_castable) object wraps a value-castable object (which may be a valid assignment target) and provides access to fields according to the layout. A view is itself value-castable, being converted to the object it's wrapping. If the view is wrapping a valid assignment target, then the accessors also return a valid assignment target.

Fields can be accessed using either __getitem__ (for both named and indexed fields) or __getattr__ (for named fields). To avoid name collisions when using __getattr__ to access fields, views do not define any non-reserved attributes of their own except for the .as_value() casting method. Field names starting with _ are reserved as attribute names and and can only be accessed using the view["name"] indexing syntax.

When a view is used to access a field whose shape is an ordinary Shape object, the accessor returns a Value of the corresponding shape that slices the viewed object.

When a view is used to access a field whose shape is an aggregate value layout, the accessor returns another View with this layout, wrapping the slice of the viewed object. For fields that have any other shape-castable object set as their shape, the behavior is the same as for the Shape case.

Views that have an ArrayLayout as their layout can be indexed with a Value. In this case, the viewed object is sliced with Value.word_select.

A signal can be manipulated with its structure viewed as the discriminated union defined above as follows:

# creates an unsigned(3) signal by shape-casting `layout`
sig = Signal(layout)
view = data.View(layout, sig)

# if the second argument is omitted, a signal with the right shape is created internally;
# the line below is equivlent to the two lines above
view = data.View(layout)

m = Module()
m.d.comb += [
    view.kind.eq(Kind.TWO_UNSIGNED),
    view.value.two_unsigned[0].eq(1),
]

Ergonomic layout definition

Rather than using the underlying StructLayout and UnionLayout classes, struct and union layouts can be defined using the Python class definition syntax, with the shapes of the members specified using the PEP 526 variable annotations:

class SomeVariant(data.Struct):
    class Value(data.Union):
        one_signed: signed(2)
        two_unsigned: data.ArrayLayout(unsigned(1), 2)

    kind: Kind
    value: Value


# this class can be used in the same way as a `data.View` without needing to specify the layout:
view2 = SomeVariant()
m.d.comb += [
    view2.kind.eq(Kind.ONE_SIGNED),
    view2.value.eq(view.value)
]

When they refer to other structures or unions defined in the same way, the variable annotations are also valid PEP 484 type hints, and will be used by IDEs to derive types of properties and expressions. Otherwise, the annotations will be opaque to IDEs or type checkers, but are still useful for a human reader.

The classes defined in this way are shape-castable and can be used anywhere a shape or a aggregate value layout is accepted:

sig2 = Signal(SomeVariant)
layout2 = data.StructLayout({
    "ready": unsigned(1),
    "payload": SomeVariant
})

Implementation note: This can be achieved by using a custom metaclass for Struct and Union that inherits from ShapeCastable.

If an explicit Layout object is nevertheless needed (e.g. for introspection), it can be extracted from the class using Layout.cast:

layout == data.Layout.cast(SomeVariant) # => True

Conversely, the shape-castable object defining the layout of a View (which might be a Layout subclass or a Struct/Union subclass) can be extracted from the view using Layout.of:

SomeVariant is data.Layout.of(view2) # => True

Advanced usage: Parametric layouts

The ergonomic definitions using the Struct and Union base classes are concise and integrated with Python type annotations. However, they cannot be used if the layout of an aggregate value is parameterized. In this case, a class with similar functionality can be defined in a more explicit way:

class Stream8b10b(data.View):
    data: Signal
    ctrl: Signal

    def __init__(self, value=None, *, width: int):
        super().__init__(data.StructLayout({
            "data": unsigned(8 * width),
            "ctrl": unsigned(width)
        }), value)


len(Stream8b10b(width=1).data) # => 8
len(Stream8b10b(width=4).data) # => 32

Since the parametric class name itself does not have a fixed layout, it cannot be used with Layout.cast. Similarly, the type annotations cannot include specific field widths; they are included only to indicate the presence of a corresponding attribute to IDEs and type checkers.

Structure field ordering

The fields of a structure layout object are ordered from least significant to most significant:

float32_layout = data.StructLayout({
    "fraction": unsigned(23),   # bits  0..22
    "exponent": unsigned(8),    # bits 23..30
    "sign": unsigned(1)         # bit  31
})

class Float32(data.Struct):
    fraction: unsigned(23)      # bits  0..22
    exponent: unsigned(8)       # bits 23..30
    sign: unsigned(1)           # bit  31

In other words, the following identity holds:

float32_storage = Signal(float32_layout)
float32 = data.View(float32_layout, float32_storage)

float32_storage == Cat(float32.fraction, float32_layout.exponent, float32.sign)

Customizing the automatically created Signal

When a view is instantiated without an explicit view target, it creates a Signal with a shape matching the view layout. The View constructor accepts all of the Signal constructor keyword arguments and passes them along; the reset= argument accepts a struct or an array (according to the type of the layout):

flt_neg_reset = data.View(float32_layout, reset={"sign": 1})

flt_reset_less = Float32(reset_less=True)

Drawbacks

This feature introduces a language-level concept, shape-castable objects, increasing language complexity.

This feature introduces a finely grained hierarchy of 5 similar and related classes for describing layouts.

Alternatives

Do nothing. Record will continue to be used alongside the continued proliferation of ad-hoc implementations of similar functionality.

Remove ArrayLayout from this proposal. The array functionality is niche and introduces the complexity of handling by-index accessors alongside by-name ones.

Remove ArrayLayout, UnionLayout, and FlexibleLayout from this proposal. Their functionality is less commonly used than that of StructLayout and introduces the substantial complexity of handling fields at arbitrary offsets. (This would make amaranth.lib.data useless for slicing CSRs in Amaranth SoC.) This change would bring this proposal close to the original PackedStruct proposal discussed in https://github.com/amaranth-lang/amaranth/issues/342.

Combine the Layout and all of its derivative classes into a single Layout(fields={"name": Field(...), 0: Field(...)}) class that provides a superset of the functionality. This simplifies the API, but makes introspection of aggregate layouts very difficult and can be inefficient if large arrays are used. In this case, factory methods of the Layout class would be provided for more convenient construction of regular struct, union, and array layouts.

Remove Struct and Union annotation-driven definition syntax. This makes the API simpler, less redundant, and with fewer corner cases, also avoiding the use of variable annotations that are not valid PEP 484 type hints, at the cost of a continued jarring experience for IDE users.

Include a more concise and less visually noisy way to build StructLayout and UnionLayout objects (or their equivalents) using a builder pattern. This may make the syntax slightly nicer, though the RFC author could not come up with anything that would actually be such.

Bikeshedding

The names of the Field, *Layout, and View classes could be changed to something better.

  • IrregularLayout was renamed to FlexibleLayout.

Future work

This feature could be improved in several ways that are not in scope of this RFC:

  • StructLayout, UnionLayout, and ArrayLayout could be extended to generate layouts with padding at the end (for structs and unions) or between elements (for arrays). Currently this requires the use of a FlexibleLayout.
  • StructLayout could be extended to accept a list of fields in addition to a map of field names to values. In this case, it would represent an aggregate value with non-overlapping indexed fields (tuple).
  • Struct and/or StructLayout could be extended to treat certain reserved field names (e.g. "_1", "_2", ...) as designating padding bits. In this case, the offset of the following fields would be adjusted, and the fields with such names would not appear in the layout.
  • Struct and/or StructLayout could be extended to treat certain reserved field names (e.g. "_" for Struct and None for StructLayout) as designating an anonymous inner aggregate. In this case, the members of the anonymous inner aggregate would be possible to access as if they were the members of the outer aggregate.
  • The automatic wrapping of accessed aggregate fields done by View could be extended to call a user-specified cast function rather than hard-coding a check for whether the shape is a Layout. This would allow seamless inclusion of user-defined value-castable types in aggregates.
  • The PEP 484 generics could be used to define layouts parametric over field shapes, using type annotations alone. Since Python does not have type-level integers, layouts parametric over field sizes would still need to be defined explicitly.
  • The struct, union, and enum support could be used as the building blocks to implement first-class discriminated unions. Discriminated unions will also benefit from tuples, described above. (Suggestion by @lachlansneff.)

Acknowledgements

@modwizcode, @Kaucasus, and @lachlansneff provided valuable feedback while this RFC was being drafted.

Interface definition library RFC

Summary

Add standard ways of declaring that a component of a design conforms to a particular interface and connecting components with complementary interfaces together, to fill the other of the two major use cases of Record while avoiding its downsides.

See also RFC #1.

Motivation

Digital designs are composed of densely packed components that communicate with each other using well-defined interfaces. Mechanisms to denote the boundary of a component, to ensure that a component complies to a specified interface, and to make reliable connections between components are essential.

Currently, Amaranth provides none of these mechanisms. A component implemented in Amaranth, however well-defined conceptually, has no more external structure than a loose collection of Signals assigned to its attributes; and whether any one of them is a part of the interface or the implementation is up to a guess. Even when an interface is described using amaranth.hdl.rec.Layout, such a description cannot be used to verify even the simplest aspects of compliance, such as presence of fields. Although building components by composing smaller components together is ubiquitous, amaranth.hdl.rec.Layout is not able to compose their interface with the same ease. Connecting components using amaranth.hdl.rec.Record.connect is difficult enough that it sees very little use.

Originally, Record was aimed at solving many of these issues. However, it has multiple major drawbacks:

  1. Record attempts to do too much: it is both a mechanism for controlling representation (including implicitly casting a record to a value) and a mechanism for defining interfaces (specifying signal directions and facilitating connections between records).

    These mechanisms should be defined separately, since the only aspect they have in common is using a container class that consists of multiple named fields. Conflating the two mechanisms constraints the design space, making addressing the other drawbacks impossible, and the ill-defined scope encourages bugs in downstream code.

  2. Record's model of signal directions is too complex. Because it attempts to model both aggregates with controlled representation and interfaces with defined directionality, every signal can have one of the three directions, the third option being non-directed. While this can be applied in a robust way--FIRRTL has only one aggregate type that it uses for both purposes--this gives rise to a large combination of features and requires handling many edge cases.

  3. Record's model of signal directions is too limited. The two static directionalities it has are the confusingly named "fanout" and "fanin", which really mean "from initiator to target" and "from target to initiator". This is insufficient to describe common, straightforward interactions such as two components exchanging streams of data across pairs of identical, complementary endpoints.

  4. Records are hard to customize. Records create and hold their signals, only providing the caller with an ability to place caller-created signals into individual fields. Signals often need adjustments: primarily setting a reset value or adding a decoder, but sometimes adding attributes or renaming. These adjustments must be performed at the record creation site, which is burdensome.

  5. Record fields can be (apart from sub-records) only plain signals. In many cases, an interface between components carries structured data rather than opaque bit vectors. It is not possible to define inner structure for record fields other than through a sub-record, and using a sub-record for this means that an application-specific endpoint that defines such structure cannot be connected to a generic endpoint that does not.

  6. Records are hard to compose. The natural way to define a record is to call the Record constructor with a layout, but this creates the entire layout hierarchy unless parts of it are replaced; and it requires having the layout of the result in advance.

  7. Record.connect determines the direction of data flow that it will create by the relative position of the interfaces being connected, with x.connect(y) and y.connect(x) having the oposite polarity of assignments. However, the direction of data flow is defined by the component that exposes the interface. Thus, every call of Record.connect can be done in one of the two very similar ways, one of which is always wrong.

  8. Record.connect uses wired-OR to gather the "fanin" signals, a feature that exists so that it could be used to connect e.g. Wishbone endpoints together without additional gateware. The assumption that the response signals of inactive endpoints will remain all-zero is, generally, unsound.

  9. Record.connect manages connections between interfaces with optional signals at the call site using an include/exclude mechanism. However, the semantics of the non-implemented optional signals are a property of the interface, not the connection.

  10. Record and rec.Layout are often used as base classes. The Record.like facility, frequently used because of the poor ergonomics of rec.Layout, loses this information and returns an instance of the base class; rec.Layout does the same when indexed. As a result, there is little value in defining methods and attributes on the subclass, and Record subclasses are little more than a callable computing a layout.

  11. Due to the limitations of Record, one might define a plain Python class that exposes compatible attributes. An instance of such a class cannot be compared to a known rec.Layout nor can it be embedded in another Record.

  12. Record is value-castable and implements the .eq() protocol. Although useful when all fields are non-directional, using .eq() instead of .connect() when connecting directional interfaces is, generally, unsound. It also reserves commonly used names such as any, all, and matches, and implements arithmetic operations that are rarely if ever used on field containers.

  13. rec.Layout's DSL is very amorphous. It passes around variable length tuples. The second element of these tuples (the shape) can be another rec.Layout, which is neither a shape nor a shape-castable object.

Since these drawbacks are entrenched in the public API and make Record nearly useless for defining interfaces, a new mechanism must replace it.

Outline of the design space

Although some HDLs and IRs (Migen, Chisel, FIRRTL, ...) choose to use the same basic aggregate data type to represent structured data and directional interfaces, these mechanisms are in direct conflict. Complex forms of structured data, such as unions, are incompatible with associating directionality independently with every leaf member; and the non-directional nature of stored data requires complicated and error-prone rules when it can become a part of a directional connection.

Amaranth, instead, opts to include two superficially similar mechanisms for defining and accessing hierarchical aggregate data: amaranth.lib.data (RFC #1) and amaranth.lib.wiring (this RFC). amaranth.lib.data provides data views that reinterpret bit containers as complex aggregates, and entirely avoids directionality. amaranth.lib.wiring provides signatures that give a concrete shape to signals at component boundaries, and always treats them as directional.

When connections are made strictly between an output and a correspondingly named input, interfaces gain a dualistic nature: every connection is made between two interfaces whose port directions are the inverse of each other, and which are identical otherwise. To describe interfaces without repeating oneself, then, one has to pick an arbitrarily preferred directionality (and stick with it). Many interfaces are asymmetric, with data flowing from a source to a sink, or transactions issued from an initiator to a target. Amaranth picks the source or initiator perspective; an interface, examined in isolation, defines as outputs the signals that would be outputs of an initiator (and inputs of a target). Then, when an interface with true (non-flipped) directionality describes a component's output, the same interface with inverse (flipped) directionality symmetrically describes an input.

To eliminate the major usability issues with Record.connect, the interface connection mechanism assigns no precedence to interfaces and has no effect on signal directionality; whether a signal is an input or an output depends only on the interface itself. A connection is only made from an output to a matching input, and any other combination is rejected with a diagnostic. This way, connecting a pair of interfaces always leads to the same outcome, regardless of their order.

The choice to always treat interface signals as directional and to make their directionality dependent only on the interface itself leaves only one aspect of the design open: when and how interface directionality is flipped. The decisions that determine it affect both ergonomics and soundness. Record.connect in effect gives the programmer an option to flip directionality even when it would create an illegal connection. Conversely, rec.Layout provides no such affordance, even though it is necessary for composing components.

To facilitate composing components, the interface's directionality is flipped when it is used as an input, whether a top-level input of a component, or as a constituent of a larger interface. This way, the existing mechanism of annotating the directionality of an interface signal or a module port transparently handles interface composition.

Guide-level explanation

Amaranth designs are made out of components (Python classes implementing Elaboratable) whose attributes include signals. These signals have directions: "in" signals are sampled by the component, while "out" signals are driven by it, or left at their reset value, and are provided to be sampled by other components.

At the moment, these directions are completely informal, and described in the documentation and/or in the signal name as an i_ or o_ prefix (to make it clearer what the direction is at the point of use, or to disambiguate the ports that would otherwise have identical name):

class SequenceSource(Elaboratable):
    """
    Ports
    -----
    data : Signal(width), out
    ready : Signal(1), in
    valid : Signal(1), out
    """
    def __init__(self, width=16):
        self.data = Signal(width)
        self.ready = Signal()
        self.valid = Signal(reset=1)

    def elaborate(self, platform):
        m = Module()
        with m.If(self.ready):
            m.d.sync += self.data.eq(self.data + 1)
        return m

The SequenceSource component is implemented as a simple counter producing values for an output stream that is connected to some other component consuming them. On each clock tick, if the consumer is ready, it samples the data (the counter value), and simultaneously with that, the producer advances the data to the next item (the incremented value). Since there is always a next item available and it is ready for consumption on the next clock cycle, the stream always contains valid results.

Note It is not, in general, possible to infer the directions of the signals from the implementation—here, ready and valid have different directions and different intended uses, but they look similar to the Amaranth implementation since they are both undriven in the component.

This RFC proposes a way of describing signal directions that can be applied to any Python object. In addition to elaboratables, it includes Python objects that are used to group together signals with a similar purpose, such as those that are parts of a bus.

To describe signal directions, only a single addition is needed: the signature property:

from amaranth.lib.wiring import Signature, In, Out


class SequenceSource(Elaboratable):
    ...

    signature = Signature({
        "data": Out(16),
        "ready": In(1),
        "valid": Out(1)
    })

Consider another component that is consuming these values:

class NumberSink(Elaboratable):
    ...

    def elaborate(self):
        m = Module()
        processing = Signal()
        m.d.comb += self.ready.eq(~processing)
        with m.If(self.valid & ~processing):
            m.d.sync += processing.eq(1)
        with m.Elif(processing):
            ... # process it somehow

    signature = Signature({
        "data": In(16),
        "ready": Out(1),
        "valid": In(1)
    })

Currently, the only way (given the tools provided by the language and the standard library) to connect the output stream of the SequenceSource to the input stream of the NumberSink is to do this signal-wise:

m = Module()
m.submodules.source = source = SequenceSource()
m.submodules.sink = sink = NumberSink()
m.d.comb += [
    sink.data.eq(source.data),
    source.ready.eq(sink.ready),
    sink.valid.eq(source.valid)
]

This is tedious, verbose, and error-prone. It is possible to define an application-specific function abstracting this operation, and many applications do, but something this universal should be defined on the language level.

This RFC introduces a way to describe interfaces (collections of directional signals; more on this later) and a single operation: connecting. The code above now transforms into:

from amaranth.lib.wiring import connect


m = Module()
m.submodules.source = source = SequenceSource()
m.submodules.sink = sink = NumberSink()
connect(m, sink, source)

The order of arguments to connect does not matter as the directionality is defined by the components themselves. It could just as well be written as:

connect(m, source, sink)

However, this approach still has flaws. Most importantly, the signature for SequenceSource and NumberSink is written twice, but their signature is exactly the same except that the direction is flipped: In members become Out, and vice versa. To avoid error-prone repetition here, the signature can be defined once:

Stream16BitSignature = Signature({
    "data": Out(16),
    "ready": In(1),
    "valid": Out(1)
})

and then used twice, for both the source and the sink:

class SequenceSource(Elaboratable):
    ...

    signature = Stream16BitSignature

class NumberSink(Elaboratable):
    ...

    signature = Stream16BitSignature.flip()

The Signature.flip() method returns a flipped signature object: a signature object whose members have inverse direction but which is otherwise identical.

Since this approach has reusable signatures defined with a specific direction, it is necessary to make an arbitrary choice: pick the kind of object whose signature will use the non-flipped directions. This RFC picks the object that is the source of data (for stream-like interfaces), the transaction initiator (for bus-like interfaces), and so on to use non-flipped directions by convention.

Although some duplication was eliminated, some more remains: currently, it is necessary to define a stream signature for every kind of stream (a stream of 16-bit values, a stream of RGB colors, and so on). It is possible to define a reusable stream signature by inheriting from the Signature class:

class StreamSignature(Signature):
    def __init__(self, payload_shape):
        super().__init__({
            "payload": Out(payload_shape),
            "ready": In(1),
            "valid": Out(1)
        })

The elaboratables above can then be defined as:

class SequenceSource(Elaboratable):
    ...

    signature = StreamSignature(16)

class NumberSink(Elaboratable):
    ...

    signature = StreamSignature(16).flip()

Usually, elaboratables have more than one interface. For example, a very simple DSP block could sink a stream of signed numbers, take their absolute value, and source a stream of unsigned numbers. It would then have a pair of ready, valid, and payload signals each: one for the input steam, and another for the output stream.

To handle this case, signature's members can be signatures themselves. These members also have directionality; an Out signature leaves the directionality of its members unchanged, while an In signature flips it. The signature method of the processing block could be defined as:

class AbsoluteProcessor(Elaboratable):
    ...

    signature = Signature({
        "i": In(StreamSignature(signed(16))),
        "o": Out(StreamSignature(unsigned(16)))
    })

To be compliant with this signature, an AbsoluteProcessor instance must have an i attribute compliant with a StreamSignature(signed(16)).flip(), and an o attribute compliant with a StreamSignature(unsigned(16)). These could be defined manually:

class AbsoluteProcessor(Elaboratable):
    def __init__(self):
        self.i = object()
        self.i.payload = Signal(signed(16))
        self.i.ready = Signal()
        self.i.valid = Signal()
        self.i.signature = StreamSignature(signed(16)).flip()

        self.o = object()
        self.o.payload = Signal(unsigned(16))
        self.o.ready = Signal()
        self.o.valid = Signal()
        self.o.signature = StreamSignature(unsigned(16))

    ...

Once more, to reduce error-prone repetition, the Signature class offers a way to define objects just like the ones created above, making the complete definition be:

class AbsoluteProcessor(Elaboratable):
    def __init__(self):
        self.i = StreamSignature(signed(16)).flip().create()
        self.o = StreamSignature(unsigned(16)).create()

    signature = Signature({
        "i": In(StreamSignature(signed(16))),
        "o": Out(StreamSignature(unsigned(16)))
    })

    ...

Signature subclasses can also override the create method to add functionality not present in the base class. For example, a signature for a bus such as Wishbone or AXI could return an instance of a class rather than a simple object(), and include attributes indicating which optional features of the bus are enabled.

However, since the interface of AbsoluteProcessor as a whole can itself be described as a signature, it is possible to further shorten it by deriving from component.Component instead of Elaboratable, in which case the attributes will be filled in from the signature automatically:

from amaranth.lib.wiring import Component


class AbsoluteProcessor(Component):
    signature = Signature({
        "i": In(StreamSignature(signed(16))),
        "o": Out(StreamSignature(unsigned(16)))
    })

    def elaborate(self):
        m = Module()
        with m.If(self.i.payload > 0):
            m.d.comb += self.o.payload.eq(self.i.payload)
        with m.Else():
            # Does not overflow, since -(-32768) [least signed(16)] is less
            # than 65536 [greatest unsigned(16)].
            m.d.comb += self.o.payload.eq(-self.i.payload)
        return m

Python variable annotations can also be used in cases like the above, where the signature is the same for every instance of the class (i.e. the component is not parameterized during creation):

class AbsoluteProcessor(Component):
    i: In(StreamSignature(signed(16)))
    o: Out(StreamSignature(unsigned(16)))

    def elaborate(self):
        m = Module()
        with m.If(self.i.payload > 0):
            m.d.comb += self.o.payload.eq(self.i.payload)
        with m.Else():
            # Does not overflow, since -(-32768) [least signed(16)] is less
            # than 65536 [greatest unsigned(16)].
            m.d.comb += self.o.payload.eq(-self.i.payload)
        return m

All of the import statements in the code examples above can be replaced with:

from amaranth.lib.wiring import *

Reference-level explanation

This RFC proposes a number of library additions:

  • Adding classes that describe a hierarchy of Amaranth objects (an elaboratable object and the objects containing its interface signals) and ease instantiating such hierarchies.
  • Adding a function that connects such hierarchies to each other.

It also introduces a number of technical terms:

  • A component is an Amaranth elaboratable object.
  • An interface (a concept) is a shared boundary across which several Amaranth components exchange data. It is comprised of a set of signals and the invairants that govern their use.
  • An interface object (an implementation of the concept) a Python object that includes:
    1. attributes whose value is an Amaranth value-castable, or another interface;
    2. a signature attribute whose value is a signature that is compliant with this object;
    3. a description of the invariants applying to its use (in form of documentation, testbenches, formal tests, etc.).
  • A signature is a Signature instance describing requirements applicable to a hierarchy of interace objects.
  • A signature member is a Member instance describing requirements applicable to a single attribute of an interface object. Two kinds of signature members exist: port members (requiring the value of the attribute to be a Signal), and interface members (requiring the value of the attribute to be another interface object).
  • An object is compliant with a signature (therefore making it an interface object) if every member of the signature corresponds to an attribute of the object whose value fits the requirements.

A single elaboratable object will often have several interfaces; e.g. a peripheral can have a CSR and/or Wishbone bus interface, and a pin interface. However, the elaboratable object itself can be an interface object as well, which makes it easy to convert it to Verilog and use standalone since its signature defines the ports the Verilog module needs to have.

Interface description

Interfaces are described using an enumeration, amaranth.lib.wiring.Flow, and two classes, amaranth.lib.wiring.Member and amaranth.lib.wiring.Signature:

  • Flow is an enumeration with two values, In and Out.

    • Flow.__call__(arg, **kwargs) forwards to Member(self, arg, **kwargs).
      • Thus, Out(unsigned(16), reset=0x1234) is a shorthand for Member(Flow.Out, unsigned(16), reset=0x1234).
    • flow.flip() flips the value from In to Out and back.

  • A Member(flow, ...) object describes a part of an interface. It is immutable.

    • A Member(flow, shape_castable, reset=reset_value) object describes a port with the given shape and flow direction. The returned Member object has:
      • the .flow property be flow;
      • the .is_port property be True;
      • the .is_signature property be False;
      • the .shape property be shape_castable;
      • the .reset property be reset_value;
      • the .signature property raise TypeError;
      • the .dimensions property be ().
    • A Member(flow, signature) object describes a constituent interface with the given flow direction. If flow is Flow.In, then the actual flow of every port recursively described by signature is the reverse of the stated direction. The returned Member object has:
      • the .flow property be flow;
      • the .is_port property be False;
      • the .is_signature property be True;
      • the .shape property raise TypeError;
      • the .reset property raise TypeError;
      • the .signature property return signature if flow is Out, signature.flip() if flow is In.
      • the .dimensions property be ().
    • member.array(*dimensions) returns a new Member object whose .dimensions property is dimensions, which is any amount of non-negative numbers, and all other properties are the same as those of member. Calling .array() on a member with dimensions prepends the new dimensions before the old ones, for composability.
    • member.flip() returns a new Member object whose .flow property is ~member.flow, and all other properties are the same as those of member.

  • A Signature(...) object describes an interface comprised of named members: ports and nested interfaces (which themselves are described using signature objects).

    The Signature class can be derived from. Instances of Signature itself are termed anonymous signatures, and instances of derived classes are named signatures.

    • A Signature({"name": Member(...)}) object can be constructed from a name to member mapping.
    • signature.members is a mutable mapping that can be used to alter the description of a non-frozen signature.
      • signature.members += {...} adds members from the given mapping to signature.members if the names being added are not already used. Raises NameError otherwise.
    • signature.freeze() (or signature.members.freeze()) prevents any further modifications of signature (and in particular signature.members), enabling the caller to rely on a particular layout. It is applied recursively to constituent interfaces.
      • It returns self to aid assignments in class definition like:
        class X:
    signature = Signature({
        ...
    }).freeze()
    • signature.flip() returns a signature where every member is member.flip()ped. The exact object returned is a proxy object that overrides the methods and attributes defined here such that the flow is flipped, and otherwise forwards attribute accesses untouched. That is, signature.x = <value> and signature.flip().x = <value> both define an attribute on the original signature object, and never on the proxy object alone. When calling method signature.f as signature.flip().f, self is the flipped signature.
    • signature.flatten(object) returns an iterator yielding a path, member, value tuples for each of the ports recursively contained in the signature, where:
      • path is a tuple of strings or integers indicating the sequence of attribute or index accesses that were used to retrieve value from object
      • member is the port member corresponding to value, with the flow flipped as appropriate
      • value is a value-castable object corresponding to the port (usually but not always a Signal)
    • signature.is_compliant(object) checks whether an arbitrary Python object is compliant with this signature. To be compliant with a signature:
      • for every member of the signature, the object must have a corresponding attribute
      • if the member is a port, the attribute value must be a value-castable such that Value.cast(object.attr) method returns a Signal or a Const that has the same width and signedness, and for signals, is not reset-less and has the same reset value as the member
        • a warning may be emitted if the .shape of the member and the .shape() of object.attr are not equal
      • if the member is an interface, the attribute value must be compliant with the signature of the member
      • if the member's dimensions are (p, q, ...), the requirements below hold instead for every result of indexing the attribute value with [i][j]... where i in range(p), j in range(q), ...
    • signature.members.create() creates a dictionary of members from it. This is a helper method for the common part of signature.create(). For every member of the signature, the dictionary contains a value equal to:
      • If the member is a port, Signal(member.shape, reset=member.reset).
      • If the member is a signature, member.signature.create() for Out members, and member.signature.flip().create() for In members.
    • signature.create() creates an interface object from this signature. To do this, it calls the constructor of Interface described below. This method is expected to be routinely overridden in Signature subclasses to instantiate subclasses of Interface.

All of the methods that can be called on signature can be called on the object returned by signature.flip(), and self in that case is signature.flip(). This means that in a method defined on a subclass of Signature, self can be an instance of that type, or an instance of a different type, FlippedSignature, which implements the flipping behavior. In the rare case where it is useful to determine which one it is, it is possible to use type(self) is amaranth.lib.wiring.FlippedSignature.

Any object can be an interface object if it has the appropriate signature property. However, an amaranth.lib.wiring.Interface class is introduced, serving two purposes: instantiating interfaces from an anonymous signature, and serving as a convenient base class for custom interface classes. The Interface class implements only the __init__() method, accepting a signature as a parameter. It assigns self.signature to be that signature, and for each item in signature.members.create() it creates a corresponding attribute on self.

Interface connection

Interface objects may be connected to each other using the amaranth.lib.wiring.connect(m, *objects) free function.

This function connects interface objects that satisfy the following requirements:

  • The set of members (considered by their paths) is exactly the same for each of the objects.
  • For each given path, all members are either signature members or port members.
  • For each given path where all members are port members, the width of every member with the same path is equal, though the exact types of the objects returned by the .shape property may differ.
  • For each given path where all members are port members, the reset values of all members with the same path must match.
  • For each given path where all members are port members, exactly one member has an Out flow.

If the In port member is a signal, it is connected to the Out port member with the same path as follows:

m.d.comb += input_port.eq(output_port)

If the In port member is a constant, no connection is actually made. The Out port member with the same path (if any) must be a constant with the same value.

Forwarding interfaces

In some cases, an outer elaboratable object creates an inner elaboratable object and exposes an interface of the inner object as its own:

class Outer(Component):
    bus: Out(BusSignature())

    def __init__(self):
        super().__init__()

        self.inner = Inner()

    def elaborate(self, platform):
        m = Module()
        m.d.comb += [
            self.inner.bus.addr.eq(self.bus.addr),
            self.inner.bus.w_data.eq(self.bus.w_data),
            self.bus.r_data.eq(self.inner.bus.r_data),
            # ...
        ]
        return m


class Inner(Component):
    bus: Out(BusSignature())

    ...

In this case, amaranth.lib.wiring.connect(...) won't help, since an output needs to be connected to an output, and an input to an input.

An additional function amaranth.lib.wiring.flipped(obj) is added to assist in this case. It returns a proxy object obj_flipped where obj_flipped.signature equals obj.signature.flip(), and everything else is forwarded identically otherwise. So, the Outer.elaborate method can be rewritten as:

class Outer(Component):
    bus: Out(BusSignature())

    def __init__(self):
        super().__init__()

        self.inner = Inner()

    def elaborate(self, platform):
        m = Module()
        connect(m, flipped(self.bus), self.inner.bus)
        return m

Component definition

This RFC in effect introduces a particular kind of elaboratable object: one that has a signature. While connecting an elaboratable as a whole (as opposed to its sub-interfaces) will rarely, if ever, happen, it is still convenient to have an elaboratable define its signature, for three reasons:

  1. It is a declaration of intent, separating the signals that are purposefully a part of its interface from ones that just happen to be assigned to attributes, and stating their direction;
  2. It simplifies and standardizes assignment of the interface attributes, making the signature property the single source of truth for the module's interface;
  3. It makes it easy to convert a single standalone elaboratable to Verilog.

To this end, a class amaranth.lib.wiring.Component is introduced:

  • Component.__init__ (typically called as super().__init__()) updates self.__dict__ with the result of self.signature.members.create(). (If there is a name conflict, it raises an error.)
  • Component.signature collects PEP 526 variable annotations in the class's method resolution order chain up to Component, if any, and returns a signature object constructed from these, or raises an error otherwise. The signature object is created per-instance, not per-class, so that it can be safely mutated if this is a part of the workflow.

Alternatives and rationale

  • Do nothing. Record will continue to be used alongside the continued proliferation of ad-hoc implementations of similar functionality, and continue to impair the use of Amaranth components together.

  • Replace the amaranth.lib.wiring.connect free function with a function amaranth.hdl.dsl.Module.connect.

    • It is not a function on amaranth.hdl.dsl.Module to avoid privileging the standard interface library over any other library that may be written downstream. At the moment nothing in amaranth.lib is special in any way other than its name, and preserving this is valuable to the author.

Naming questions

  • Should amaranth.lib.wiring be called something else, like amaranth.lib.bus or amaranth.lib.component?
    • bus is short, but not every interface is a bus interface; component (or module, really) puts too much emphasis on the things being interfaced, rather than the interfaces (@jfng)
    • i wouldn't want the bus keyword to already be taken in my namespaces (@jfng)
    • I guess my point is mostly that bus is not the opposite of data, but wiring is (@whitequark)
    • I don't like how long "component" is (@whitequark)
  • Should Signature.compatible be named something else, like Signature.is_implemented_by, Signature.is_compliant, Signature.complies_with?
    • Signature.compatible misses an is_ and does not look like a query method (@jfng)
    • I mean, "compatible" could mean that two signatures could be connected together. when checking if an object is compliant to a signature, directions also matters (@zyp)
    • Signature.complies_with reverses subject and object (@zyp)
    • Signature.is_implemented_by is verbose (@jfng)
  • Should amaranth.lib.wiring.forward be named something else, like amaranth.lib.wiring.forwarded or amaranth.lib.wiring.forwarding or amaranth.lib.wiring.flip or amaranth.lib.wiring.transpose or ``amaranth.lib.wiring.transposeoramaranth.lib.wiring.inner`?
    • having two essentially unrelated operations called flip when one is already confusing is too much (@whitequark)
    • reflective programming is a thing (@zyp)
    • inner(inner(interface)) to flip it back to the original wouldn't make much sense (@zyp)

Future work

  • One-to-many connections between interfaces are currently provided only with a fan-out topology: a single interface with output members only can be connected with multiple interfaces with input members only. This avoids the question of what to do with an input that must be driven by multiple outputs. The interface library could be enriched by adding a small amount of fixed fan-in topologies, e.g. wired-OR and wired-AND, specified as a Member() constructor parameter that must match between all of the respective members.

Enumeration shapes

Amendments The behavior described in this RFC was updated by RFC #4.

Summary

Allow explicitly specifying shape for enumerations as an alternative to implicitly inferring it.

Motivation

Hardware development includes a lot of enumerated values, so first class support for enumerations is important, and so is integration with the standard Python mechanisms for specifying enumerations.

Amaranth accepts enum.Enum subclasses anywhere a shape is expected, and enum.Enum instances anywhere a value is expected:

>>> from amaranth import *
>>> from enum import Enum
>>> class Kind(Enum):
...     MUL = 0
...     ADD = 1
...     SUB = 2
...
>>> Shape.cast(Kind)
unsigned(2)
>>> Value.cast(Kind.SUB)
(const 2'd2)

However, this does not cover an important use case: a enumeration where many values are reserved. For example, if the Kind enumeration above may need to be extended in the future, it would be necessary to reserve space for additional values, which may require additional storage bits. Right now there is no way to specify that Kind should be cast to e.g. unsigned(4).

Guide-level explanation

The Amaranth standard library module, amaranth.lib.enum can be used as a drop-in replacement for the Python standard library enum module. It exports the same classes as the ones provided by Python's enum (namely Enum, Flag, IntEnum, and IntFlag) and provides the same functionality, adding the possibility of specifying a shape for the enumeration when it is defined:

>>> from amaranth.lib.enum import Enum
>>> class Kind(Enum, shape=unsigned(4)):
...    MUL = 0
...    ADD = 1
...    SUB = 2
...
>>> Shape.cast(Kind)
unsigned(4)
>>> Value.cast(Kind.SUB)
(const 4'd2)

If the shape= keyword argument is not specified, the enumeration is treated exactly the same as the corresponding standard Python class.

If the values specified for the members are not representable with the explicitly provided shape, a warning is emitted:

>>> class Funct3(Enum, shape=unsigned(3)):
...     SUB = 8
...
<stdin>:1: RuntimeWarning: Value of enumeration member <Funct3.SUB: 8> will be truncated to enumeration shape unsigned(3)
>>> class Funct3(Enum, shape=unsigned(3)):
...     SUB = -1
...
<stdin>:1: RuntimeWarning: Value of enumeration member <Funct3.SUB: -1> is signed, but enumeration shape is unsigned(3)

A shape that is specified for a base class will be inherited in subclasses:

>>> class Enum3(Enum, shape=unsigned(3)): pass
...
>>> class Funct3(Enum3):
...     SUB = 2
...
>>> Shape.cast(Funct3)
unsigned(3)

If a enumeration without an explicitly defined shape is used in a concatenation, a warning is emitted:

>>> class Kind(Enum):
...     ADD = 1
...
>>> Cat(Kind.ADD)
<stdin>:1: SyntaxWarning: Argument #1 of Cat() is an enumeration Kind.ADD without a defined shape used in bit vector context; define the enumeration by inheriting from the class in amaranth.lib.enum and specifying the 'shape=' keyword argument
(cat (const 1'd1))

Reference-level explanation

The Amaranth standard library module, amaranth.lib.enum, exports all of the public names of the Python standard library enum module. The EnumMeta class adds the functionality for storing and casting to shapes, and inherits from ShapeCastable. The Enum, Flag, IntEnum, and IntFlag classes in this module derive from enum.Enum, enum.Flag, enum.IntEnum, and enum.IntFlag respectively, and use amaranth.lib.enum.EnumMeta as their metaclass, which makes subclasses of amaranth.lib.enum.Enum, etc be instances of ShapeCastable.

When a new amaranth.lib.enum.Enum subclass is defined, amaranth.lib.enum.EnumMeta.__new__ checks that the enumeration members are valid (currently, Amaranth requires these to be integers), and if the shape= argument is provided, stores it in an internal attribute. Importantly, the attribute is only set if the argument is provided, making it possible to distinguish these cases later. It also checks that all of the members can be represented by the given shape.

When an amaranth.lib.enum.Enum subclass is cast to a shape, if the internal attribute is set, the shape in it is returned. Otherwise it is cast to a shape using exactly the same logic as what Shape.cast uses for enum.Enum subclasses.

When an instance of a enum.Enum subclass is used in a concatenation, and it is not an instance of ShapeCastable, or if it lacks the _amaranth_shape_ attribute, a warning is emitted. This approach avoids a circular dependency between amaranth.hdl.ast and amaranth.lib.enum.

Drawbacks

  • Introducing a new standard library module increases the API surface.
  • The names of enumeration base classes are the same as the standard library enumeration base classes, which may be confusing.
  • Deriving from a different class requires changes to the enumeration at its point of definition, meaning that it is not possible to annotate a enum that comes from an external library with an Amaranth shape.

Rationale and alternatives

Ultimately, this feature boils down to defining an internal variable on an enum, which is then used by Shape.cast and other core Amaranth code. There are a few possible options for doing this.

  1. Special class variable:

    class SomeEnum(enum.Enum):
    _amaranth_shape_ = unsigned(4)

  2. Class decorator:

    @amaranth.shape(unsigned(4))
class SomeEnum(enum.Enum):

  3. Class keyword argument (this proposal):

    class SomeEnum(amaranth.lib.enum.Enum, shape=unsigned(4)):

Alternative (1) has the following drawbacks:

  • It is not possible to check that the enumeration members can be represented by the specified shape at the point of definition.
  • It exposes what should be an implementation detail to the user.
  • The documentation for the standard enum module does not specify whether it's OK to use _sunder_ names for one's own purposes, but it would have to be a part of the stable API.

Its advantages are:

  • No additional methods or classes in the API surface.
  • _amaranth_shape_ makes it immediately clear what's going on.
  • The variable can be defined on any enum, even an external one.

Alternative (2) has the following drawbacks:

  • It's not clear where the shape decorator should be. It can only be applied to enums, but there's no enum-specific namespace in Amaranth core to put it into.
  • SomeEnum would inherit from the standard Enum class and therefore isinstance(SomeEnum, ShapeCastable) would be False unless ShapeCastable.__instancecheck__ is overridden to fix that.

Its advantages are:

  • The decorator can be applied to an external enum.

Alternative (3) has the drawbacks specified above, and the following advantages:

  • isinstance(SomeEnum, ShapeCastable) naturally works.
  • As a consequence, no additional code is required in the core language. All of the functionality necessary for the feature to work lives in amaranth.lib.enum.
  • The shape argument matches Signal(shape=) (even though no one uses the keyword form) and works the way one would naturally expect.
  • Uses of import enum can be transparently replaced with from amaranth.lib import enum without updating the call sites, making the migration as easy as the other alternatives.

Prior art

None.

Unresolved questions

None.

Future possibilities

None.

Const-castable expressions

Summary

Define a subset of expressions that are "const-castable" and accept them in contexts where currently only integers and enumerations with integer values are accepted.

Motivation

In certain contexts, Amaranth requires a constant to be used. These contexts are: with m.Case(...):, Value.matches(...), and the value of an enumeration member that is being cast to a value.

Currently, only integers and enumeration members with integer values are considered constants. However, this is too limiting. For example, when developing a CPU, one might want to define control signals for several functional units and combine them into instructions, or conversely, match an instruction against a combination of control signals:

class Func(Enum):
    ADD = 0
    SUB = 1

class Src(Enum):
    MEM = 0
    REG = 1

class Instr(Enum):
    ADD  = Cat(Func.ADD, Src.MEM)
    ADDI = Cat(Func.ADD, Src.REG)
    ...

with m.Switch(instr):
    with m.Case(Cat(Func.ADD, Src.MEM)):
        ...

Currently, all of these cases would produce syntax errors.

There is a private Value._as_const method. It is not used internally, however Amaranth developers have started using it due to unmet needs. Removing it without providing a replacement would be disruptive, and will result in downstream codebases defining their own equivalent.

Guide-level explanation

In any context where a constant is accepted (with m.Case(...):, Value.matches(...), and the value of an enumeration member), a "const-castable" expression can be used. The following expressions are const-castable:

  • int;
  • Const;
  • Cat where all operands are const-castable;
  • instance of a Enum subclass where the value is const-castable.

A const-castable expression can be converted to a Const using Const.cast:

>>> Const.cast(1)
(const 1'd1)
>>> Const.cast(Cat(1, 0, 1))
(const 3'd5)
>>> Const.cast(Cat(Func.ADD, Src.REG))
(const 2'd2)

Reference-level explanation

The Const.cast static method casts its argument to a value and examines it. If it is a Const, it is returned. If it is a const-castable expression, the operands are recursively cast to constants, and the expression is evaluated.

The list of const-castable expressions is:

  • Cat

The m.Case(...) (through the Switch() constructor) and Value.matches(...) methods accept two kinds of operands: const-castable expressions, or a string containing a bit pattern (a sequence of 0, 1, or - meaning a wildcard).

The Shape.cast method accepts enumerations where all members have const-castable expressions as their values. The shape of an enumeration is a shape with the smallest width that can represent the value of any enumeration member.

RFC 3: The EnumMeta.__new__ method accepts enumerations where all members have const-castable expressions as their values. The value of each member is the value of the constant resulting from casting the user-provided expression.

Drawbacks

  • A new language-level concept makes it harder to learn the language.
    • Most developers already have an intuitive understanding of which expressions are const-castable.
  • Const.cast shadows an existing Value.cast method since Const inherits from Value.
    • No one is calling Value.cast through the Const.cast binding.
    • Const.cast has a compatible interface (it returns a Value) and performs a similar function (it calls Value.cast first). However, it's not Liskov-compatible.

Rationale and alternatives

Alternatives:

  1. Do not add this functionality. Developers will define their own const-casting functions, continue to rely on the undocumented and private ._as_const() method, or use other workarounds.
  2. Make ._as_const() public (i.e. rename it to .as_const()).
  3. Add a new Const.cast method (this option).

Alternatives (2) and (3) both introduce a new language-level concept, the only difference is in the interface that is used to access it.

Alternative (3) fits the language better: Value.cast takes something value-castable and returns a Value, Shape.cast takes something shape-castable and returns a Shape, so Const.cast is a logical addition in that it takes something const-castable and returns a Const.

Prior art

Rust and C++ provide functionality (const fn and constexpr respectively) for performing computation at compile time, restricted to a strict subset of the full language. In particular, it can be used to initialize constants, which makes it similar to the functionality proposed here.

One challenge these languages face is the question of how large the subset should be. Rust in particular started off heavily restricting const fn, where it did not have any control flow. The functionality was gradually introduced later as needed.

Unresolved questions

None.

Future possibilities

Expanding the set of const-castable expressions to include arbitrary arithmetic operations. This RFC limits it to the most requested expression, Cat. This simplifies implementation and reduces the likelihood of introducing bugs in the constant evaluation code, most of which would be almost never used.

Remove Const.normalize

Summary

Remove Const.normalize(value, shape).

Motivation

From the name it is not clear what it is supposed to achieve (it's truncation and inversion according to the shape) and it does not check types of arguments.

We already have Const(value, shape).value and most developers should be aware of it. Having Const.normalize(value, shape) as well provides no benefit over the former. It's also longer.

Explanation

The Const.normalize method is deprecated (with the suggestion to use Const().value) and removed.

Drawbacks

  • Churn.

Rationale and alternatives

We could keep it. Removing it reduces the API surface and makes the language a bit more elegant.

Prior art

None.

Unresolved questions

None.

Future possibilities

None.

CRC generator

Summary

Add a cyclic redundancy check (CRC) generator to the Amaranth standard library.

Motivation

Computing CRCs is a common requirement in hardware designs as they are used by a range of communication and storage protocols to detect errors and thereby ensure data integrity. Because of the standard structure and typical set of variations used by CRCs, it is readily possible to provide a general-purpose CRC generator in the standard library which should cover the majority of use cases efficiently.

See the Wikipedia page on CRCs for more background and use cases.

Guide-level explanation

The Amaranth standard library includes a generator for a cyclic redundancy check (CRC) module, which can be used to compute and/or validate most common CRCs used by transmission and storage protocols.

There are many different CRC algorithms in use, but they can almost all be described by the following parameters:

  • The bit width of the CRC, commonly (but not always) a power of 2,
  • The generator polynomial, represented as an integer where each bit is a 0 or 1 term in a binary-valued polynomial with as many terms as the CRC width,
  • The initial value of the CRC register, commonly non-zero to allow detection of additional 0-valued data words at the start of a message,
  • Whether to process input words least- or most-significant-bit first, allowing the CRC processing order to match the transmission or storage order of the data bits,
  • Whether to flip the final output so that its least-significant-bit becomes the most-significant bit, set for the same reason as reflecting the input when the CRC value will also be transmitted or stored with a certain bit order,
  • What value, if any, to XOR the output bits with before using the CRC value, often used to invert all bits of the output.

This set of parameters is commonly known as the Williams or Rocksoft model. For more information, refer to "A Painless Guide to CRC Error Detection Algorithms".

For a list of parameters to use for standard CRCs, refer to:

  • reveng's catalogue, which uses the same parameterisation
  • crcmod's predefined list, but remove the leading 1 from the polynomials, XOR the "Init-value" with "XOR-out" to obtain initial_crc, and where Reversed is True, set both ref_in and ref_out to True.
  • CRC Zoo, which only lists polynomials; use the "explicit +1" form but remove the leading 1.

The CRC algorithms described in the reveng catalogue are also available in the Amaranth standard library in the crc.catalog module.

In Amaranth, the crc.Algorithm class holds the parameters that describe a CRC algorithm:

  • crc_width: the bit width of the CRC
  • polynomial: the generator polynomial of the CRC, excluding an implicit leading 1 for the "x^n" term
  • initial_crc: the initial value of the CRC, loaded when computation of a new CRC begins
  • reflect_input: if True, input words are bit-reversed so that the least significant bit is processed first
  • reflect_output: if True, the final output is bit-reversed so that its least-significant bit becomes the most-significant bit of output
  • xor_output: a value to XOR the output with

The crc.Algorithm class may be constructed manually, but for many commonly used CRC algorithms a predefined instance is available in the crc.catalog module.

To fully define a CRC computation, the width of input data words to the CRC must also be specified. This is commonly 8 for processing byte-wise data, but can be any length greater than 0. The combination of a crc.Algorithm and the data_width makes a crc.Parameters instance, for example:

from amaranth.lib import crc
algo = crc.Algorithm(crc_width=8, polynomial=0x2f, initial_crc=0xff,
                     reflect_input=False, reflect_output=False,
                     xor_output=0xff)
params1 = algo(data_width=8)
params2 = crc.catalog.CRC8_AUTOSAR(data_width=8)

If not specified, the data width defaults to 8 bits.

The crc.Parameters class can be used to compute CRCs in software with its compute() method, which is passed an iterable of integer data words and returns the resulting CRC value.

from amaranth.lib import crc
params = crc.catalog.CRC8_AUTOSAR()
assert params.compute(b"123456789") == 0xdf

To generate a hardware CRC module, either call create() on crc.Parameters or manually construct a crc.Processor:

from amaranth.lib import crc
algo = crc.Algorithm(crc_width=8, polynomial=0x2f, initial_crc=0xff,
                     reflect_input=False, reflect_output=False,
                     xor_output=0xff)
params = algo(data_width=8)
crc1 = m.submodules.crc1 = crc.Processor(params)
crc2 = m.submodules.crc2 = crc.Catalog.CRC8_AUTOSAR().create()

The crc.Processor module begins computation of a new CRC whenever its start input is asserted. Input on data is processed whenever valid is asserted, which may occur in the same clock cycle as start. The updated CRC value is available on the crc output on the clock cycle after valid.

With the data width set to 1, a traditional bit-serial CRC is implemented for the given polynomial in a Galois-type shift register. For larger values of data width, a similar architecture computes every new bit of the CRC in parallel.

The match_detected output signal may be used to validate data that contains a trailing CRC. If the most recently processed word(s) form a valid CRC for all the data processed since start, the CRC register will always contain a fixed value which can be computed in advance, and the match_detected output indicates whether the CRC register currently contains this value.

Reference-level explanation

The proposed new interface is:

  • A crc.Algorithm class which holds the parameters for a CRC algorithm, all of which are passed to the constructor:
    • crc_width: bit width of the CRC register
    • polynomial: generator polynomial for CRC algorithm
    • initial_crc: initial value of CRC at start of computation
    • reflect_input: if True, input words are bit-reversed
    • reflect_output: if True, output values are bit-reversed
    • xor_output: value to XOR the CRC value with at output
  • crc.Algorithm implements __call__(data_width=) which is used to create a crc.Parameters instance with the specified data width.
  • A crc.Parameters class which is constructed using a crc.Algorithm and a data_width.
  • crc.Parameters has the following methods:
    • compute(data) performs a software CRC computation on data, an iterable of input data words, and returns the CRC value
    • create() returns a crc.Processor instance preconfigured to use these parameters
    • residue() returns the residue value for these parameters, which is the value left in the CRC register after processing an entire valid codeword (data followed by its own valid CRC)
    • algorithm() returns an crc.Algorithm with the same settings as this crc.Parameters instance
  • A crc.Processor class which inherits from Elaboratable and implements the hardware generator
  • A crc.catalog module which contains instances of crc.Algorithm

The hardware implementation uses the property that CRCs are linear, and so the new value of any bit of the CRC register can be found as a linear combination of the current state and all the input bits. By expressing the CRC computation as a linear system like this, we can then determine the boolean equation used to update each bit of the CRC in parallel. A software CRC calculator is implemented in Python in order to find these logic equations.

The proposed CRC generator is already implemented and available in PR 681. The docstrings and comments in it should explain its operation to a suitably technical level of detail.

Drawbacks

Users could always write their own CRC or use an external library; Amaranth does not need to provide one for them. However, since it's a very common requirement that we can satisfy efficiently for a lot of users, it seems reasonable to include in the standard library.

Rationale and alternatives

As far as I'm aware, the method here is the optimal technique for generating the logic equations required for this combinatorial CRC generation.

One alternative to the combinatorial logic equations is to store intermediate values in a lookup table; the table needs to contain a CRC-sized value for every possible input value, and then the computation required is reduced to a table lookup, an XOR, and some bit shifts. For single-byte words this approach may be practical, but it is unlikely to be worthwhile with 16- or 32-bit words. Additionally, the table approach generally requires a latency of 2 cycles (one extra to perform the table lookup). It's possible this would give better timing in some circumstances, but at the cost of block RAM resources and latency.

Prior art

The specification chosen for the CRC parameters is a popular de-facto standard, and importantly the reveng catalogue lists suitable parameters for a wide range of standard CRCs.

This particular implementation was written in 2020 and is extracted (with permission) from a proprietary codebase, where it is used to generate a variety of CRCs on FPGAs.

One early public example of using Amaranth to generate CRCs is from Harmon Instruments, also in 2020, which has a similar construction but does not support the full set of CRC parameters.

In general, I found many examples of implementations of specific CRCs in other HDLs, but few for generic generators. There are many software libraries for generating CRCs in most programming languages, but as they are not generating hardware their implementation details are not as relevant - small table lookups are popular as the tradeoffs there tend to favour word-at-a-time computations.

Unresolved questions

  • No outstanding unresolved questions.

Future possibilities

  • The data interface uses start, data, and valid signals. Eventually, this could be replaced with a Stream, once they are finalised.

  • Currently the entire input data word must be valid together; there is no support for masking some bits off. In particular, such a feature could be useful for wide data paths where the underlying CRC computation is byte-wise, for example a 128-bit-wide data stream from a 10GbE MAC where the Ethernet FCS must be computed over individual bytes. However, the implementation complexity is high, the use cases seem more niche, and such a feature could be added in a backwards-compatible later revision.

  • The software CRC computation only supports computing over an entire set of data. It would be possible to offer an API to permit incremental updates and finalisation.

Aggregate data structure extensibility

Summary

Provide well-defined extension points for the aggregate data structure library.

Motivation

RFC 1 introduces the aggregate data structure library, which allows using any shape-castable object as the shape of a field. Layouts do not consider the specific type of the shape-castable object. However, views do, and depending on whether it's a layout, a subclass of an aggregate class (Struct or Union), or any other shape-castable object, behavior differs:

>>> from amaranth import *
>>> from amaranth.lib.data import *
>>> class S(Struct):
...     x: unsigned(1)
...
>>> layout = StructLayout({
...     "a": unsigned(1),
...     "b": ArrayLayout(unsigned(2), 4),
...     "c": S
... })
...
>>> View(layout).a
(slice (sig $signal) 0:1)
>>> View(layout).b
<amaranth.lib.data.View object at 0x7f53e46934c0>
>>> View(layout).c
<__main__.S object at 0x7f53e4693a30>

At the moment this behavior is not well-defined and it special-cases the aggregate classes defined in amaranth.lib.data.

Guide-level explanation

Any shape-castable object can be used as the shape of a field in a layout. This includes another layout. If the object is a callable (provides a __call__ method), then when a view is accessed, the __call__ method will be called with a single argument, the slice of the underlying value, which will be returned by the view. A Layout is a callable that constructs a View from itself and the value.

Reference-level explanation

The Layout class has a method __call__. layout(value) is equivalent to View(layout, value).

The View.__getitem__ method (and by extension View.__getattr__), after extracting a field from the layout, attempts to call field.shape.__call__(value_slice), where value_slice is the slice of the underlying value corresponding to the field. If there is no such method, it iteratively calls as_shape() on field.shape or the result of the previous call to as_shape() until an object is returned that has a __call__ method, or until an instance of Shape is returned.

Drawbacks

  • The syntax may be confusing.
    • Using __call__ to implement construction is a widespread pattern in Python. Moreover, Struct and Union are classes, whose __call__ method forwards to __new__, so implementing this behavior would remove the special case for aggregate base classes without additional code.

Rationale and alternatives

This design is, as far as the author knows, the smallest possible addition that provides the largest possible extensibility and removes all special casing of aggregate base classes. That it requires no additional functionality to be implemented on the aggregate base classes indicates that it fits well into the existing design.

Alternatives:

  • Do not do this.

Prior art

None.

Unresolved questions

None.

Future possibilities

None.

Constant initialization for shape-castable objects

Summary

Add an extension point to shape-castable objects, for converting constant initializers (typically Python literals) to Amaranth constant expressions.

Motivation

RFC 1 specifies that the reset= argument of a View accepts structured data:

flt_neg_reset = data.View(float32_layout, reset={"sign": 1})

This structured data is internally turned into an integer constant that is supplied to Signal(reset=). This mechanism is not exposed to Amaranth developers. However, this creates a clear unmet need, since at the moment there is no way to turn a layout and a field-to-value mapping into a constant integer for use elsewhere.

For example, if a signal is created manually and not through the View, this will not work despite looking reasonable (the layout is shape-castable and can be supplied to Signal):

flt_neg_reset_signal = Signal(float32_layout, reset={"sign": 1})

Guide-level explanation

Shape-castable objects must, in addition to the mandatory .as_shape() method, implement a mandatory .const(value) method to define how a constant initializer (the reset value of a Signal or View) is converted to an Amaranth constant.

This method is defined by shape-castable objects to convert arbitrary Python objects into Amaranth constants. For example, if a shape-castable object has complex internal structure, it can accept a dictionary with the values to be filled into various bits of this structure. If Shape implemented ShapeCastable, the method would be defined as def const(self, value): return Const(value, self).

The value returned by this method can be a Const or a value-castable object whose .as_value() will return a Const.

This method can also be directly called by the developer to construct a constant using a given shape-castable object.

Reference-level explanation

A method def const(self, obj): is added on ShapeCastable.

The Signal(shape, reset=) constructor is changed so that if isinstance(shape, ShapeCastable), then shape.const(reset) is used instead of reset.

The .const() instance method is implemented on Layout to accept a Sequence or Mapping instance and returns a View over a Const with a bit pattern that has the fields set to the given values. Overlapping fields are written in the order of iteration of the input. If the field shape is a shape-castable object, then the value for that field is computed using Const.cast(value, field.shape).

The .const() method is implemented on the metaclass of Struct and Union as return View(self, self.as_shape().const(obj)).

The View(..., reset=) constructor is changed to pass reset through to the Signal() constructor.

Drawbacks

  • Additional method on ShapeCastable.
    • It was clear from the beginning that this functionality will likely be necessary, and we are unlikely to ever add more.
  • The reset= argument becomes dependently typed.

Rationale and alternatives

Given:

class Point(Struct):
    x: 16
    y: 16

it is clear that there needs to be some way to go from {"x": 123, "y": 456} to Cat(C(123, 16), C(456, 16)) without manually writing out the concatenation.

There are two main options for this:

  1. Implement a new method, such that Point.const({"x": 123, "y": 456}) returns a constant of some kind (either an int or a Const or a constant-castable expression).
  2. Implement an additional .__init__() override, such that Point({"x": 123, "y": 456}) returns a view that has a constant-castable expression as its target.

Option (1) has the benefit of making it clear when downstream code is creating a constant (and expects an argument where the nested data must all be constant), and of minimizing useless wrapping/unwrapping of views that would otherwise happen. It is an explicit type conversion (from a literal to Const).

Option (2) avoids introducing new names. It is an implicit type conversion (from a literal to a view, which in this case is Point).

In the end, option (1) seems preferable here since implicit type conversions are easy to unintentionally misuse. It also avoids any clashes with proposed RFC 8.

Prior art

None.

Unresolved questions

None.

Future possibilities

None.

Move Repl to Value.replicate

Summary

Replace the standalone Repl(value, count) node with value.replicate(count).

Motivation

Repl is a rarely used construct (it's mostly useful for manual sign extension).

It is currently a first-class entity that has its own AST node and a name in the prelude, mostly for historical reasons (Repl(v, n) is analogous to Verilog's {x{n}}).

Repl does not need to be a first-class entity; Repl(x, n) is almost exactly equivalent to Cat(x for x in range(n)). It especially does not need a name in the prelude.

Guide-level explanation

Use of Repl is deprecated. To replicate a value multiple times, use value.replicate().

Reference-level explanation

Direct use of Repl is deprecated. Its implementation is replaced with def Repl(value, count): return Value.cast(value).replicate(count).

A function Value.replicate(count) is added. It is implemented as Cat(value for _ in range(count)). The Repl AST node is removed.

Drawbacks

  • Churn.
  • The proposed implementation makes Value.replicate valid on left-hand side of assignment, with potentially surprising behavior. However, this can be handled by prohibiting multiple assignment to the same bit of a signal in general.

Rationale and alternatives

Rationale:

  • Fewer names in the prelude is always good.
  • Unlike with Cat (where Cat() makes sense), Repl does not make sense as a standalone node any more than Part does (and we do not currently export Part).
  • Despite existing by analogy with {x{n}}, it is currently turned into a concatenation before it reaches the Verilog backend anyway, and any future work will have to reconstruct replication from concatenation in any case.
  • Repl being a dedicated node complicates AST processing for no reason.

Alternatives:

  • Do not do this.

Prior art

None.

Unresolved questions

None.

Future possibilities

  • The Verilog backend currently bitblasts what could be a replication. We could detect these and convert them to replications proper.
  • We could detect code like Cat(x, x).eq(0b11) and warn or reject it.

Lifting shape-castable objects

Summary

Make Signal(shape_castable, ...) return shape_castable(Signal(shape_castable.as_shape(), ...)).

Motivation

When Amaranth was a very new language, it did not have any facilities for ascribing type information to data. It had shapes (width and signedness), and it had special handling for range() in the shape position, as well as enumerations. Back then it made sense to have Signal, the single way to define new storage of any kind, to only operate on values (numbers / bit containers).

Today the situation is completely different. Amaranth has first-class support for enumerations in the standard library as well as the standard range of data structures (structs, unions, arrays) via RFC 1 and RFC 3. It provides extensibility through RFC 8 and RFC 9. Using the existing hooks alone it is possible to extend Amaranth with rich numeric types (fixed-point, complex, potentially even floating-point), and some of these are very likely to end up in the standard library.

All of this new functionality internally wraps a Value. It is so common and useful to initialize e.g. a struct view with a fresh Signal that data.View reexports all of the arguments of the Signal constructors and automatically constructs a Signal if no view target is provided. This works, but ties the two together more than would be ideal, and requires every similar facility to reimplement the functionality itself. What is worse is that it seems to be quite confusing to programmers, since it's not apparent that calling data.View(foo_layout) internally creates a Signal. Furthermore, people want to call Signal(foo_layout) to construct some storage for foo_layout, and that works (foo_layout is shape-castable), but does the wrong thing: the returned object is a Signal, not a data.View.

It would make teaching a lot easier if we could draw an equivalence between a Signal and a variable in a general purpose programming language, and between its shape and a type in a general purpose programming language. Then, no matter what shape-castable object it is, the way to make some storage is Signal(x). It will also simplify the internals a fair bit.

This change wasn't practical before RFC 8 and RFC 9 laid the groundwork for it, but now it is an obvious extension.

Guide-level explanation

To include state in a design, use the Signal(shape) constructor, where shape describes the bit layout and possible operations on that state. The reset= argument and the returned value depend on the shape that is provided. If it is signed(N) or unsigned(N) or a built-in enumeration or a range, then a plain Value is returned, and the reset= argument accepts a number, an enumeration member, or a constant. If it is a data.Layout, then a data.View is returned, and the reset= argument accepts a sequence or a mapping, potentially nested for nested layouts. Other shape-castable classes will have their own behavior.

Warning The existing syntax for creating a View with a new Signal underlying it will be removed immediately (it has never been in a release) to resolve an ambiguity over the semantics of __call__.

Reference-level explanation

A method def __call__(self, value): is added on ShapeCastable. It must return Value or a ValueCastable instance with the right shape. (Such a method is opportunistically used by data.View for nested views since RFC 8, however this RFC makes it mandatory for all shape-castable objects.)

The Signal.__call__(shape, ...) method is overridden (on the metaclass) to consider shape. First, a signal is constructed normally with all of the arguments. Afterwards, if shape is a ShapeCastable instance, then shape(signal) is returned. Otherwise signal is returned.

Drawbacks

  • Increase in language complexity.
  • More metaclasses.
    • Signal is a final class so this is unlikely to go wrong.
  • A Signal() constructor sometimes returning non-Signal objects can be confusing.

Rationale and alternatives

There are several arguments in favor of the design:

  • It does not de facto introduce any new methods on protocols, since ShapeCastable.__call__ is expected to be implemented by essentially everyone after RFC 8.
  • It does not introduce new complexity to Signal.__init__; the logic for handling non-integer reset exists since RFC 9.
  • It eliminates unnecessary coupling between data.View (and other similar facilities) and Signal().
  • It is a natural extension of the language and has clear parallels to the notion of variables in other languages.
  • It has been repeatedly requested by users, almost every time someone became familiar with the aggregate data structure design.

All of these points are compelling but the last one perhaps the most. The author did not find it a stark enough necessity to introduce themselves but it does seem to be one.

Alternatives:

  • Do not do this. The status quo is acceptable.

Prior art

This RFC brings the semantics of Signal to be very close to semantics of typed variables in other languages.

"Lifting" in the title of this RFC refers to a concept in functional programming of the same name where a higher order function (Signal, here) is used to generalize an operation over a set of other functions (data.View and other shape-castable objects that implement the __call__ protocol, here).

Unresolved questions

  • How does this interact with typechecking?
    • This is a straightforward higher order function so it's probably fine.

Future possibilities

This RFC is the final one in a chain that started with RFC 1.

Enumerations and ranges could be adjusted such that something other than Value is returned. This creates backwards compatibility concerns though.

CSR register definition RFC

Summary

Add primitives to define CSR registers.

Motivation

The Amaranth SoC library support for CSRs currently consists of bus primitives behind which multiple registers can be gathered.

Its current notion of a CSR register is limited to the csr.Element class, which provides an interface between a register and a CSR bus. The information we have about a register is limited to its width and access mode (necessary to determine the layout of csr.Element), in addition to its name and address. This information can then be aggregated by walking through the memory map of a SoC, to generate header files (and documentation, etc) for use by firmware.

However, amaranth-soc lacks the notion of register fields. The CSR bus acts as a transport and isn't concerned about fields. Peripherals often expose their functionality using multiple fields of a register, and initiators (e.g. a CPU running firmware) need to be aware of them.

In addition, users must currently implement their own register primitives, which adds boilerplate.

This RFC aims to add a standard implementation of a CSR register, while building upon the existing infrastructure.

Guide-level explanation

Currently, the implementation of a CSR register is left to the user, as amaranth-soc only requires the use of csr.Element as its interface:

class UARTPeripheral(Elaboratable):
    def __init__(self):
        self._phy = AsyncSerial(divisor=int(100e6//115200), data_width=8)

        self._divisor = csr.Element(self._phy.divisor.width, "rw")
        self._rx_rdy  = csr.Element(1, "r")
        self._rx_err  = csr.Element(1, "r")

        self._csr_mux = csr.Multiplexer(addr_width=4, data_width=32)
        self._csr_mux.add(self._divisor)
        self._csr_mux.add(self._rx_rdy)
        self._csr_mux.add(self._rx_err)

        self.bus = self._csr_mux.bus

    def elaborate(self, platform):
        m = Module()
        m.submodules.phy     = self._phy
        m.submodules.csr_mux = self._csr_mux

        m.d.comb += self._divisor.r_data.eq(self._phy.divisor)

        with m.If(self._divisor.w_stb):
            m.d.sync += self._phy.divisor.eq(self._divisor.w_data)

        # ...

        return m

This RFC adds register primitives to amaranth-soc, which are defined by subclassing csr.Register:

class UARTPeripheral(wiring.Component):
    # A register with a parameterized width and reset value:
    class Divisor(csr.Register, access="rw"):
        def __init__(self, *, width, reset):
            super().__init__({
                "divisor": csr.Field(csr.action.RW, width, reset=reset),
            })

    # A simple register, with reserved fields:
    class RxStatus(csr.Register, access="r"):
        rdy : csr.Field(csr.action.R,       unsigned(1))
        _0  : csr.Field(csr.action.ResRAW0, unsigned(3))
        err : csr.Field(csr.action.R,       unsigned(1))
        _1  : csr.Field(csr.action.ResRAW0, unsigned(3))

    class RxData(csr.Register, access="r"):
        data : csr.Field(csr.action.R, unsigned(8))

    def __init__(self, *, divisor):
        self._phy = AsyncSerial(divisor=int(100e6//115200), data_width=8)

        regs = csr.Builder(addr_width=4, data_width=8)

        self._divisor = regs.add("divisor", self.Divisor(width=bits_for(divisor), reset=divisor))

        with regs.Cluster("rx"):
            self._rx_status = regs.add("status", self.RxStatus(), offset=3)
            self._rx_data   = regs.add("data",   self.RxData(),   offset=4)

        self._bridge = csr.Bridge(regs.as_memory_map())

        super().__init__({
            "bus": In(csr.Signature(addr_width=4, data_width=8))
        })
        self.bus.memory_map = self._bridge.bus.memory_map

    def elaborate(self, platform):
        m = Module()

        m.submodules.phy    = self._phy
        m.submodules.bridge = self._bridge

        m.submodules.rx_fifo = rx_fifo = SyncFIFOBuffered(width=8 + 1, depth=16)

        m.d.comb += [
            # Reading a field from the peripheral side:
            self._phy.divisor.eq(self.divisor.f.divisor.data),

            rx_fifo.w_en  .eq(self._phy.rx.rdy),
            rx_fifo.w_data.eq(Cat(self._phy.rx.data, self._phy.rx.err)),
            self._phy.rx.ack.eq(rx_fifo.w_rdy),

            # Writing to a field from the peripheral side:
            self._rx_status.f.rdy.r_data.eq(rx_fifo.r_rdy),
            self._rx_status.f.err.r_data.eq(rx_fifo.r_data[-1]),

            # Consuming data from a FIFO, as a side-effect from a bus read:
            self._rx_data.f.data.r_data.eq(rx_fifo.r_data[:8]),
            rx_fifo.r_en.eq(self._rx_data.f.data.r_stb),
        ]

        return m

Register definitions

The fields of a Register instance can be defined in two different ways:

  • using PEP 526 variable annotations.
  • by calling Register.__init__() with a non-default fields argument.

Variable annotations are suitable for simple use-cases, whereas overriding Register.__init__() allows field definitions to be parameterized.

class UARTPeripheral(Elaboratable):
    class Divisor(csr.Register, access="rw"):
        def __init__(self, *, width, reset):
            super().__init__({
                "divisor": csr.Field(csr.action.RW, width, reset=reset),
            })

    class RxStatus(csr.Register, access="r"):
        rdy : csr.Field(csr.action.R,       unsigned(1))
        _0  : csr.Field(csr.action.ResRAW0, unsigned(3))
        err : csr.Field(csr.action.R,       unsigned(1))
        _1  : csr.Field(csr.action.ResRAW0, unsigned(3))

    class RxData(csr.Register, access="r"):
        data : csr.Field(csr.action.R, unsigned(8))

    ...

Field access and ownership

The csr.action class definitions differ by their access mode.

For example, csr.action.R describes a field that is:

  • read-only from the point-of-view of a bus initiator (such as a CPU);
  • read/write from the point-of-view of the peripheral;

Whereas csr.action.RW describes a field that is:

  • read/write from the point-of-view of a CPU
  • read-only from the point-of-view of the peripheral

In this RFC, write access is defined by ownership. A register field can only be written to by its owner(s). For example:

  • a csr.action.R field is owned by the peripheral;
  • a csr.action.RW field is owned by the bus initiator.

In the UARTPeripheral example above, each register field has a single owner. This effectively removes the possibility of a write conflict between a CPU and the peripheral.

Otherwise, in case of shared ownership, deciding which transaction has precedence is context-dependent.

Flag fields

Flag fields may be writable by both the bus initiator and the peripheral. Flag fields are distinct from other kinds of fields, as each bit may be set or cleared independently of others.

This RFC provides two types of flag:

  • csr.action.RW1C (read/write-one-to-clear) flags may be used when a peripheral needs to notify a CPU of a condition (e.g. an error or a pending interrupt). The CPU clears the flag to acknowledge it. If a write conflict occurs, setting the bit from the peripheral side would have precedence.
  • csr.action.RW1S (read/write-one-to-set) flags may be used for self-clearing bits, such as the enable bit of a one-shot timer. When the counter reaches its maximum value, it would automatically disable itself by clearing the enable bit. If a write conflict occurs, setting the bit from the CPU side would have precedence.

A use case that involves both RW1C and RW1S fields would be a register driving an array of GPIO pins. Their values may be set or cleared by a CPU. In a multitasked environment, a read-modify-write transaction would require locking to insure atomicity; whereas having two fields (RW1S and RW1C) targeting the same flags allows a CPU to set or clear any of them in a single write transaction.

Reserved fields

Reserved fields may be defined to provide placeholders for past, future or undocumented functions.

This RFC provides four types of reserved fields:

  • csr.action.ResRAW0 (read-any/write-zero)
  • csr.action.ResRAWL (read-any/write-last)
  • csr.action.ResR0WA (read-zero/write-any)
  • csr.action.ResR0W0 (read-zero/write-zero)

Example use cases for reserved fields

One-Time Programmable fuse
  • Field type: ResRAW0 (read-any/write-zero)
  • Reads return the fuse state. Writing 1 will blow the fuse.
Reserved for future use (as value)
  • Field type: ResRAWL (read-any/write-last)
  • Software drivers need to be aware of such fields, to ensure forward compatibility of software binaries with future silicon versions.
  • Software drivers are assumed to access such fields by setting up an atomic read-modify-write transaction.
  • The value returned by reads (and written back) must have defined semantics (e.g. a no-op) that can be relied upon in future silicon versions.
Reserved for future use (as flag)
  • Field type: ResRAW0 (read-any/write-zero)
  • Software drivers need to be aware of such fields, to ensure forward compatibility of software binaries with future silicon versions.
  • Software drivers do not need a read-modify-write transaction to write these fields.
  • Software drivers should ignore the value returned by reads.
  • Writing a value of 0 is a no-op for RW1C and RW1S flags, if implemented by future silicon versions.
Defined, but deprecated
  • Field type: ResR0WA (read-zero/write-any)
  • Such fields may be used as placeholders for phased out fields from previous silicon versions. They are required for backward compatibility with existing software binaries.
  • The value of 0 returned by reads (and written back) must have defined semantics (e.g. a no-op).
Defined, but unimplemented
  • Field type: ResR0W0 (read-zero/write-zero)
  • Such fields may be used to provide variants of a peripheral IP, and facilitate code re-use in software drivers.
  • For example on STM32F0x SoCs, the CR1.CKD field (clock divider ratio) is read/write in the "general-purpose" timer TIM14 , but always reads 0 in the "basic" timer TIM6.

Accessing register fields from peripherals

class UARTPeripheral(Elaboratable):
    ...

    def elaborate(self, platform):
        ...

        m.d.comb += [
            self._phy.divisor.eq(self._divisor.f.divisor.data),

            ...

            self._rx_status.f.rdy.r_data.eq(rx_fifo.r_rdy),
            self._rx_status.f.err.r_data.eq(rx_fifo.r_data[-1]),

            self._rx_data.f.data.r_data.eq(rx_fifo.r_data[:8]),
            rx_fifo.r_en.eq(self._rx_data.f.data.r_stb),
        ]

        ...

From the peripheral side, fields are exposed by the <reg>.f attribute of the csr.Register they belong to.

Access strobes

Peripherals can sample access strobes of csr.action.R and csr.action.W fields to perform side-effects:

  • <reg>.f.<field>.r_stb is asserted when the register is read from the CSR bus (i.e. it is hardwired to <reg>.element.r_stb);
  • <reg>.f.<field>.w_stb is asserted when the register is written by the CSR bus (i.e. it is hardwired to <reg>.element.w_stb).
Data
  • <reg>.f.<field>.w_data is driven by the register if the field is write-only by the bus (i.e. W), and hardwired to a slice of <reg>.element.w_data.
  • <reg>.f.<field>.r_data is driven by the peripheral if the field is read-only by the bus (i.e. R), and hardwired to a slice of <reg>.element.r_data.
  • <reg>.f.<field>.data is driven by the register (with the value held in its storage), if the field is read-write for the bus (i.e. RW, RW1C, RW1S). It is updated one clock cycle after <reg>.element.w_stb is high (on the sync clock domain by default).
  • <reg>.f.<field>.set is driven by the peripheral to set bits of a field that can be cleared by the bus (i.e. RW1C).
  • <reg>.f.<field>.clear is driven by the peripheral to clear bits of a field that can be set by the bus (i.e. RW1S).

Building registers

The csr.Builder provides fine-grained control over the address space occupied by the CSR registers of a peripheral. Registers may be organized into a hierarchy of clusters and arrays, which can be composed together (e.g. into an array of clusters, a multi-dimensional array, etc).

For example, an (artificially simplified) interrupt controller could use a 2-dimensional array of registers:

regs = csr.Builder(addr_width=csr_addr_width, data_width=32, granularity=8):

# For each CPU core and each group of 32 interrupts, add two registers: "IE" and "IP".
for i in range(nb_cpu_cores):
    with regs.Index(i):
        for j in range(ceil(nb_intr_sources / 32)):
            with regs.Index(j):
                self.ie[i][j] = regs.add("IE", self.IE(width=32))
                self.ip[i][j] = regs.add("IP", self.IP(width=32))

regs.as_memory_map() will create a MemoryMap containing those registers, which can be passed to a csr.Bridge to expose them over a CSR bus.

Reference-level explanation

Fields

csr.reg.FieldPort.Access

The FieldPort.Access enum defines the supported access modes of a field, with:

  • the following values: R, W, RW and NC (not connected);
  • a .readable(self) method, which returns True if self is R or RW;
  • a .writable(self) method, which returns True if self is W or RW.

csr.reg.FieldPort

The FieldPort class describes the interface between a register field and the register itself, with:

  • a .__init__(self, shape, access) constructor, where shape is a shape-castable and access is a FieldPort.Access value;
  • a .shape property;
  • a .access property;

csr.reg.FieldPort.Signature

The FieldPort.Signature class describes the signature of a FieldPort, with:

  • a .__init__(self, shape, access) constructor, where shape is a shape-castable and access is a FieldPort.Access value;
  • a .shape property;
  • a .access property;
  • a .create(self, path=None, src_loc_at=0) method that returns a compatible FieldPort object;
  • a .__eq__(self, other) method that returns True if both self and other have the same shape and access mode.
Signature members

The members of a FieldPort.Signature are defined as follows:

{
    "r_data": In(self.shape),
    "r_stb":  Out(1),
    "w_data": In(self.shape),
    "w_stb":  Out(1)
}

The access mode of a FieldPort.Signature has no influence on its members (e.g. w_data and w_stb are present even if access.writable() returns False).

csr.reg.FieldAction

The FieldAction class is a Component subclass implementing the behavior of a register field, with:

  • a .__init__(self, shape, access, members=() constructor, where:
    • shape is a shape-castable;
    • access is a FieldPort.Access value;
    • members is an iterable of key/value pairs, where keys are strings and values are signature members.
  • a .signature property, that returns a Signature with the following members:
{
    "port": In(FieldPort.Signature(shape, access)),
    **members
}

where shape, access and members are provided in .__init__().

csr.reg.Field

The Field class serves as a factory for builtin or user-defined FieldActions, with:

  • a .__init__(self, action_cls, *args, **kwargs) constructor, where:
    • action_cls is a FieldAction subclass;
    • *args and **kwargs are arguments passed to action_cls.__init__();
  • a .create(self) method that returns action_cls(*args, **kwargs).

csr.reg.FieldActionMap

The FieldActionMap class describes an immutable mapping of FieldAction objects, with:

  • a .__init__(self, fields) constructor, where fields is a dict of strings to either Field objects, nested dicts or lists;
  • a .__getitem__(self, key) method to lookup a field instance by name, without recursion;
  • a .__getattr__(self, name) method to lookup a field instance by name, without recursion and excluding fields whose name start with "_";
  • a .flatten(self) method that yields for each field, a tuple containing its path (as a tuple of names or indices) and its instance.

A FieldActionMap contains instances of the fields given in __init__():

  • Field objects are instantiated as FieldAction by calling Field.create();
  • dict objects are instantiated as FieldActionMap;
  • list objects are instantiated as FieldActionArray.

A FieldActionMap preserves the iteration order of its fields, from least significant to most significant.

csr.reg.FieldActionArray

The FieldActionArray class describes an immutable sequence of FieldAction objects, with:

  • a .__init__(self, fields) constructor, where fields is a list of either Field objects, nested dicts or lists;
  • a .__getitem__(self, key) method to lookup a field instance by index, without recursion;
  • a .flatten(self) method that yields for each field, a tuple containing its path (as a tuple of names or indices) and its instance.

A FieldActionArray contains instances of the fields given in __init__():

  • Field objects are instantiated as FieldAction by calling Field.create();
  • dict objects are instantiated as FieldActionMap;
  • list objects are instantiated as FieldActionArray.

A FieldActionArray preserves the iteration order of its fields, from least significant to most significant.

Built-in field actions

csr.action.R

The csr.action.R class describes a read-only FieldAction, with:

  • a .__init__(self, shape) constructor, where shape is a shape-castable;
  • a .signature property, that returns a Signature with the following members:
{
    "port":   In(FieldPort.Signature(shape, access="r")),
    "r_data": In(shape),
    "r_stb":  Out(unsigned(1)),
}
  • a .elaborate(self, platform) method, where self.r_data and self.r_stb are connected to self.port.r_data and self.port.r_stb.

csr.action.W

The csr.action.W class describes a write-only FieldAction, with:

  • a .__init__(self, shape) constructor, where shape is a shape-castable.
  • a .signature property, that returns a Signature with the following members:
{
    "port":   In(FieldPort.Signature(shape, access="w")),
    "w_data": Out(shape),
    "w_stb":  Out(unsigned(1)),
}
  • a .elaborate(self, platform) method, where self.port.w_data and self.port.w_stb are connected to self.w_data and self.port.w_stb.

csr.action.RW

The csr.action.RW class describes a read-write FieldAction, with:

  • a .__init__(self, shape, reset=0) constructor, where shape is a shape-castable and reset is a const-castable defining the reset value of internal storage;
  • a .reset property;
  • a .signature property, that returns a Signature with the following members:
{
    "port": In(FieldPort.Signature(shape, access="rw")),
    "data": Out(shape)
}
  • a .elaborate(self, platform) method, where self.port.w_data is used to synchronously write internal storage. Storage output is connected to self.data and self.port.r_data.

csr.action.RW1C

The csr.action.RW1C class describes a read-write FieldAction, with:

  • a .__init__(self, shape, reset=0) constructor, where shape is a shape-castable and reset is a const-castable defining the reset value of internal storage.
  • a .reset property;
  • a .signature property, that returns a Signature with the following members:
{
    "port": In(FieldPort.Signature(shape, access="rw")),
    "data": Out(shape),
    "set":  In(shape)
}
  • a .elaborate(self, platform) method, where high bits in self.port.w_data and self.port.set are used to synchronously clear and set internal storage, respectively. Storage output is connected to self.data and self.port.r_data.

csr.action.RW1S

The csr.action.RW1S class describes a read-write FieldAction, with:

  • a .__init__(self, shape, reset=0) constructor, where shape is a shape-castable and reset is a const-castable defining the reset value of internal storage;
  • a .reset property;
  • a .signature property, that returns a Signature with the following members:
{
    "port":  In(FieldPort.Signature(shape, access="rw")),
    "data":  Out(shape),
    "clear": In(shape)
}
  • a .elaborate(self, platform) method, where high bits in self.port.w_data and self.port.clear are used to synchronously set and clear internal storage, respectively. Storage output is connected to self.data and self.port.r_data.

Built-in reserved field actions

csr.action.ResRAW0, csr.action.ResRAWL, csr.action.ResR0WA, csr.action.ResR0W0

These classes describe a reserved FieldAction, with:

  • a .__init__(self, shape) constructor, where shape is a shape-castable;
  • a .signature property, that returns a Signature with the following members:
{
    "port":  In(FieldPort.Signature(shape, access="nc")),
}
  • a .elaborate(self, platform) method, that returns an empty Module().

Registers

csr.reg.Register

The csr.reg.Register class describes a CSR register Component, with:

  • a .__init_subclass__(cls, access=None, **kwargs) class method, where access is either a csr.Element.Access value, or None.
  • a .__init__(self, fields=None, access=None) constructor, where:
    • fields is either:
      • a dict that will be instantiated as a FieldActionMap;
      • a list that will be instantiated as a FieldActionArray;
      • None; in this case a FieldActionMap is instantiated from Field objects in variable annotations.
    • access is either a csr.Element.Access value, or None.
  • a .fields property, returning a FieldActionMap or a FieldActionArray;
  • a .f property, as a shorthand to self.fields;
  • a .__iter__(self) method, as a shorthand to self.fields.flatten();
  • a .signature property, that returns a Signature with the following members:
{
    "element": Out(Element.Signature(width, access))
}

where width is the total width of the register, i.e. sum(Shape.cast(f.port.shape).width for _, f in self.

  • a .elaborate(self, platform) method, that connects fields to slices of self.element, depending on their access mode;
Element access mode

The access parameter must be provided in __init_subclass__() or __init__(). A ValueError is raised in __init__() if:

  • access is provided in neither method;
  • access is provided in both methods with different values.

csr.reg.Builder

The csr.reg.Builder class can build a MemoryMap from a group of csr.Register objects, with:

  • a .__init__(self, *, addr_width, data_width, granularity=8, name=None) constructor that:

    • raises a TypeError if addr_width, data_width and granularity are not positive integers;
    • raises a ValueError if granularity is not a divisor of data_width.

  • .addr_width, .data_width, .granularity and .name properties;

  • a .freeze(self) method, which renders the visible state of the csr.Builder immutable;

  • a .add(self, name, register, *, offset=None) method, which:

    • adds register to the builder;
    • returns register;
    • raises a ValueError if self is frozen;
    • raises a TypeError if register is not a Register object;
    • raises a ValueError if register is already present;
    • raises a TypeError if name is not a non-empty string;
    • raises a ValueError if name is already assigned to another register or Cluster.
    • raises a TypeError if offset is neither a positive integer or 0;
    • raises a ValueError if offset is not word-aligned (i.e. a multiple of self.data_width // self.granularity);

  • a .Cluster(self, name) context manager method, which:

    • upon entry, creates a scope where registers added by self.add() are assigned to a cluster named name;
    • raises a ValueError if self is frozen;
    • raises a TypeError if name is not a non-empty string;
    • raises a ValueError if name is already assigned to another register or Cluster;

  • a .Index(self, index) context manager method, which:

    • upon entry, creates a scope where registers added by self.add() are assigned to an array index index;
    • raises a ValueError if self is frozen;
    • raises a TypeError if index is neither a positive integer or 0;
    • raises a ValueError if index is already assigned to another Index;

  • a .as_memory_map(self) method, that converts self into a MemoryMap. self.freeze() is implicitly called as a side-effect.

CSR bus primitives

Changes to memory.MemoryMap

MemoryMap.add_resource(self, resource, *, name, size, addr=None, alignment=None) now requires resource to be a wiring.Component object.

Changes to csr.bus.Multiplexer

Multiplexer instances are now created from a caller-provided MemoryMap, instead of creating and populating one itself.

  • replace .__init__(self, addr_width, data_width, alignment, name) with .__init__(memory_map), that:
    • raises a TypeError if memory_map is not a MemoryMap object;
    • raises a ValueError if memory_map has windows.
    • raises a TypeError if memory_map has resources that are not wiring.Component objects with the following signature:
{
    "element": Out(csr.Element.Signature(...)),
    # additional members are allowed
}
  • remove the .align_to(self, alignment) method;
  • remove the .add(self, elem, name, addr=None, alignment=None) method.

csr.reg.Bridge

The csr.reg.Bridge class describes a wiring.Component that mediates access between a CSR bus and a group of csr.Registers, with:

  • a .__init__(self, memory_map) constructor, that:
    • freezes and assigns memory_map to self.bus.memory_map;
    • raises a TypeError if memory_map is not a MemoryMap object;
    • raises a ValueError if memory_map has windows.
    • raises a TypeError if memory_map has resources that are not csr.Register objects;
  • a .signature property, that returns a wiring.Signature with the following members:
{
    "bus": In(csr.Signature(addr_width=memory_map.addr_width, data_width=memory_map.data_width))
}
  • a .elaborate(self, platform) method, that instantiates a csr.Multiplexer submodule and connects its bus interface to self.bus. The registers in self.bus.memory_map are added as submodules.

Drawbacks

  • While this RFC attempts to provide escape hatches to allow users to circumvent some or all of the proposed API, it is possible that common use-cases may be complicated or impossible to implement, due to the author's oversight.

Rationale and alternatives

  • The existing CSR infrastructure already guarantees that a CSR access completes atomically. This RFC builds upon it by reasoning in terms of atomic transactions: it identifies scenarios where a write-conflict may happen, and either prevents it (e.g. by restricting a field to a single owner) or defines clear precedence rules.
  • The absence of csr.action.RW0S and csr.action.RW0C is voluntary, to allow a write of 0 to be no-op.
  • Alternatively, do nothing. This maximises user freedom, at the cost of boilerplate. A proliferation of downstream CSR register implementations would prevent amaranth-soc's BSP generator from gathering register fields to generate safe accessors and documentation.

Prior art

The Rocket Chip Generator has a register API that supports some use-cases of this RFC:

  • Each field of a register is a component with its own interface and access mode.
  • Reserved fields are neither readable nor writable.
  • A field is created as a RegField instance with separate RegWriteFn and RegReadFn functions implementing its behavior, whereas a csr.FieldAction in this RFC implements both.
  • Its RegField.rwReg built-in has the same write latency as csr.action.RW, but differs by having users provide the register storage.
  • Its RegField.w1ToClear built-in has the same behavior as csr.action.RW1C (besides the previous point). The peripheral side can only set bits and has precedence in case of set/clear conflicts.

Unresolved questions

  • What conventions should we follow when documenting CSR registers ?

Future possibilities

The notion of ownership in CSR registers can be expanded throughout the entire SoC (interconnect primitives, peripherals, events, etc).

Having an explicit model of ownership across the amaranth-soc library could allow us to provide strong safety guarantees against some concurrency hazards (e.g. two CPU cores writing to the same peripheral).

Acknowledgements

@whitequark, @zyp, @tpwrules, @galibert and @Fatsie provided valuable feedback while this RFC was being drafted.

Remove log2_int

Summary

Replace log2_int with two functions: ceil_log2 and exact_log2.

Motivation

log2_int is a helper function that was copied from Migen in the early days of Amaranth.

It behaves like so:

  • n must be an integer, and a power-of-2 unless need_pow2 is False;
  • if n == 0, it returns 0;
  • if n != 0, it returns (n - 1).bit_length().

Differences with math.log2

In practice, log2_int differs from math.log2 in the following ways:

  1. its implementation is restricted to integers only;
  2. if need_pow2 is false, the result is rounded up to the nearest integer;
  3. it doesn't raise an exception for n == 0;
  4. if need_pow2 is false, it doesn't raise an exception for n < 0.

Observations

  • 1) is a desirable property; coercing integers into floating-point numbers is fraught with peril, as the latter have limited precision.
  • 2) has common use-cases in digital design, such as address decoders.
  • 3) and 4) are misleading at best. Despite being advertised as a logarithm, log2_int doesn't exclude 0 or negative integers from its domain.

Guide-level explanation

Amaranth provides two log2 functions for integer arithmetic:

  • ceil_log2(n), where n is assumed to be any non-negative integer
  • exact_log2(n), where n is assumed to be an integer power-of-2

For example:

ceil_log2(8) # 3
ceil_log2(5) # 3
ceil_log2(4) # 2

exact_log2(8) # 3
exact_log2(5) # raises a ValueError
exact_log2(4) # 2

Reference-level explanation

Use of the log2_int function is deprecated.

A ceil_log2(n) function is added, that:

  • returns the integer log2 of the smallest power-of-2 greater than or equal to n;
  • raises a TypeError if n is not an integer;
  • raises a ValueError if n is lesser than 0.

An exact_log2(n) function is added, that:

  • returns the integer log2 of n;
  • raises a TypeError if n is not an integer;
  • raises a ValueError if n is not a power-of-two.

Drawbacks

This is a breaking change.

Rationale and alternatives

The following alternatives have been considered:

  1. Do nothing. Callers of log2_int may still need to restrict its domain to positive integers.
  2. Restrict log2_int to positive integers. Downstream code relying on the previous behavior may silently break.
  3. Remove log2_int, and use math.log2 as replacement:
    • log2_int(n) would be replaced with math.log2(n)
    • log2_int(n, need_pow2=False) would be replaced with math.ceil(math.log2(n))

Option 3) will give incorrect results, as n is coerced from int to float:

>>> log2_int((1 << 64) + 1, need_pow2=False)
65
>>> math.ceil(math.log2((1 << 64) + 1))
64

Prior art

None.

Unresolved questions

None.

Future possibilities

None.

Acknowledgements

@wanda-phi provided valuable feedback while this RFC was being drafted.

Reorganize vendor platforms

Summary

Update amaranth.vendor namespace so that instead of:

from amaranth.vendor.lattice_ecp5 import LatticeECP5Platform

you would write:

from amaranth.vendor import LatticeECP5Platform

Motivation

Vendor names are ever-changing. Xilinx was bought by AMD and the brand has been phased out. Altera was bought by Intel and the brand has been phased out. SiliconBlue has been bought by Lattice (a long time ago) and the brand has long been phased out but still remains as "SB" in SB_LUT primitive name.

In addition, we attempt to group FPGA families into a single file, like vendor.lattice_machxo2_3l that has been renamed from vendor.lattice_machxo2. This will likely include another FPGA family as soon as it becomes available.

By tying module (and file) names to brand names we create churn. Every Amaranth release so far has included renaming of both platform class names and module names. This causes additional downstream breakage and annoys designers using Amaranth.

Guide-level explanation

To target your FPGA-based project for a particular FPGA family, import the platform class corresponding to the FPGA family from amaranth.vendor, e.g.:

from amaranth.vendor import LatticeECP5Platform

Reference-level explanation

All of the amaranth.vendor.name modules are renamed to amaranth.vendor._internal_name.

Python allows __getattr__ to be present in modules:

$ cat >x.py
def __getattr__(self, name):
    return f"__getattr__({name!r})"
$ python
>>> from x import abc
>>> abc
"__getattr__('abc')"

This allows us to make all the platform classes be present as-if they were defined in the amaranth.vendor modules, while retaining all of the benefits of having them in their own amaranth.vendor._internal_name module, such as lazy loading.

Drawbacks

  • Churn.
  • A somewhat unusual loading mechanism could cause confusion.

Rationale and alternatives

Decoupling marketing/brand names from technical names is increasingly important as Amaranth evolves and supports more FPGA families. It allows us to maintain any internal hierarchy we want without it having any impact on downstream code, which solely operates on names imported from amaranth.vendor.

Prior art

None.

Unresolved questions

None.

Future possibilities

None.

Remove amaranth.lib.scheduler

Summary

Remove amaranth.lib.scheduler and the only class RoundRobin in it.

Motivation

This module is not used in the sole place for which it was added (Amaranth SoC), it is not especially useful, and it has not undergone proper community review when it was added.

Guide-level explanation

The module amaranth.lib.scheduler and the sole class RoundRobin in it is removed. To continue using it, copy the contents of the module into your own project.

Reference-level explanation

The class amaranth.lib.scheduler.RoundRobin is deprecated in Amaranth 0.4 and removed in Amaranth 0.5.

Drawbacks

  • Churn.

Rationale and alternatives

  • This module is out of place in the standard library.
  • It has not seen much use and is trivially implemented outside of it.
  • Downstream consumers tend to inline the logic anyway.
  • It does not seem like there would be any other uses for the amaranth.lib.scheduler module since any other scheduling algorithm would be more closely tied to the consumer.

Unresolved questions

None.

Future possibilities

None.

Deprecate non-FWFT FIFOs

Summary

Deprecate non-first-word-fall-through FIFOs.

Motivation

Currently, FIFOs in amaranth.lib.fifo have two incompatible interfaces: FWFT (first word fallthrough) and non-FWFT. The incompatibility concerns only the read half. FWFT FIFOs have r_data valid when r_rdy is asserted. Non-FWFT FIFOs have r_data valid only after strobing r_en, if the FIFO was empty previously.

Non-FWFT interface is awkward and is essentially never used. It is a holdover from Migen and its implementation details that was included for compatibility. There are three downsides to having it:

  1. Having non-FWFT FIFOs requires every consumer of the FIFO interface to check for fwft when interacting with the FIFO and either asserting that it is True, or adding a code path to handle it. No one does this.
  2. The FWFT interface is directly compatible with streams and allows us to add e.g. r_stream and w_stream to existing FIFOs without adding a wrapper such as stream.FIFO. It also makes any custom FIFOs defined downstream of Amaranth stream-enabled.
  3. The notion of FWFT vs non-FWFT FIFOs is confusing and difficult to understand. E.g. the author of this RFC wrote both lib.fifo and the Glasgow FIFO code, and she misused the fwft argument in the latter.

Guide-level and reference-level explanation

In the next version, instantiating SyncFIFO(fwft=False) emits a deprecation warning. In addition, FIFOInterface's fwft parameter now defaults to True. Other FIFOs have no non-FWFT variant in the first place.

In the version after that, there is no way to instantiate SyncFIFO(fwft=False). The feature and all references to it are removed in their entirety.

Implementation considerations

At the moment, SyncFIFOBuffered is implemented as a register in the output of SyncFIFO(fwft=False). The implementation will need to be rewritten.

Drawbacks

  • Churn.
  • There will be no alternative to SyncFIFO(fwft=False).

Rationale and alternatives

  • It is feasible to extract SyncFIFO(fwft=False) into its own module that may be used by downstream code that needs non-FWFT FIFOs. It would not implement FIFOInterface.
    • There is no reason the SyncFIFO class could not be copied into downstream code as it is.
  • It is possible to wrap FIFOs in the stream library in a way that ensures only FWFT FIFOs are used.
    • Let's not create pointless wrappers.

Prior art

Not relevant.

Unresolved questions

None.

Future possibilities

This RFC primarily exists to enable better stream interface integration.

Patch releases

Summary

Change Amaranth versioning from major.minor to major.minor.patch after version 0.4, and define the backport policy for patch releases.

Motivation

Amaranth 0.3 was released on 2021-12-16; almost two years ago. Several important bugs have been fixed in main since, most notably depending on a version of Jinja2 that is no longer installable. At the moment the policy is to issue only major.minor releases, which was OK in the early days but no longer fits the project.

We should change the policy that is used for the next Amaranth release and later ones.

Explanation

Amaranth feature releases all have the version of major.minor.0. The policy for these releases is unchanged and is tied to our two-step process for making breaking changes.

In addition to these releases, Amaranth now has bug-fix releases with the major.minor.patch versions. These are intended to address the need of the community to have bugs fixed before a next feature release can be made, and the policy is designed to minimize developer time spent on them.

Bug-fix releases are made when all of the following conditions are satisfied:

  • There is an issue that is fixed in the main branch.
  • A member of the community requests this issue to be fixed in a point release.
  • It is possible to fix the issue such that there is a high degree of confidence that the change will not break existing code using Amaranth with a ~=major.minor version constraint.
  • A community member steps up to backport the fix to the release branch.
    • This could be one of the Amaranth maintainers, or anyone else. Amaranth maintainers have no obligation to back-port any fix.

Drawbacks

This creates additional work for maintainers.

Rationale and alternatives

  • It would be possible to backport all feasible fixes as a policy.
    • This would significantly increase maintainer workload.
  • It is possible to keep the current policy.
    • Because we do not control all of the upstream dependencies (including Python), this seems untenable.

Prior art

Rust has an even stricter bug-fix release policy: the Rust project only issues patch releases in cases of security issues, widespread miscompilations, or unintentional breaking changes.

Unresolved questions

Should Amaranth SoC adopt the same policy?

Future possibilities

Eventually, Amaranth may gain release engineers who will maintain long-living release branches.

Define ValueCastable.shape()

Summary

Require value-castable objects to have a method that returns their high-level shape.

Motivation

RFC #15 advanced the extensibility of the language significantly, but broke constructs like Signal.like(Signal(data.StructLayout(...))). In addition, not having a well-defined point for returning the high-level shape (i.e. a shape-castable object from which this value-castable object was creaed rather than a Shape instance) causes workarounds such as data.Layout.of to be added to the language and standard library.

Explanation

The ValueCastable interface has a method .shape(). This method returns a shape-castable object. Where possibe, this object should, when passed to Signal, create a value-castable object of the same type.

amaranth.lib.data.Layout.of is removed immediately.

Drawbacks

  • Increased API surface area
    • At one point a commitment was made that the only method ValueCastable will ever define will be as_value. However, radical changes to the language such as RFC #15 make it reasonable to revisit this.

Rationale and alternatives

This change is the minimal possible one that fixes the problem systemically. Some minor variations in the design are possible:

  • Instead of requiring shape() to be defined (which is a breaking change), this method can be added optionally in the next release and be required in the release after that.
    • This is difficult to do with ValueCastable and will require workarounds both in the core language implementation and in downstream code that operates on ValueCastable objects.
    • ValueCastable is not very widely used yet and the breakage will likely be minimal.

Prior art

It is typical for a programming language to have a way of retrieving the type of a value. The mechanism being added here is equivalent.

Unresolved questions

None.

Future possibilities

None.

Testbench processes for the simulator

Amendments This RFC was amended on 2024-02-12 to deprecate add_sync_process rather than add_process, for two reasons:

  1. add_process encompasses anything add_sync_process can do, but there is functionality that is quite difficult to do with add_sync_process, such as behavioral implementation of a DDR flop.
  2. add_sync_process relies on argument-less yield, which has no equivalent with await ... syntax that is desired in the future.

Summary

The existing Simulator.add_sync_process method causes the process function to observe the design in a state before combinational settling, something that is actively unhelpful in testbenches. A new Simulator.add_testbench method will only return control to the process function after combinational settling.

Motivation

Consider the following code:

from amaranth import *
from amaranth.sim import Simulator


class DUT(Elaboratable):
    def __init__(self):
        self.out  = Signal()
        self.outn = Signal()

    def elaborate(self, platform):
        m = Module()
        m.d.sync += self.outn.eq(~self.out)
        return m


dut = DUT()
def testbench():
    yield dut.out.eq(1)
    yield
    print((yield dut.out))
    print((yield dut.outn))

sim = Simulator(dut)
sim.add_clock(1e-6)
sim.add_sync_process(testbench)
sim.run()

This code prints:

1
1

While this result is sensible in a behavioral implementation of an elaboratable (where observing the state of the outputs of combinational cells before they transition to the new state is required for such an implementation to function as a drop-in replacement for a register transfer level one), it is not something a testbench should ever print; it clearly contradicts the netlist. Because there are no alternatives to using add_sync_process, testbenches (where such result is completely inappropriate) keep using it, and Amaranth designers are left to sprinkle yield over the testbenches until the result works.

In addition to the direct impact of this issue, it also prevents building reusable abstractions, including something as simple as yield from fifo.read(), since in order to work for back-to-back reads that would first have to yield Settle() to observe the updated value of fifo.r_rdy, which isn't appropriate for a function in the standard library as it changes the observable behavior (and thus breaks the abstraction).

Guide-level explanation

The code example above is rewritten as:

dut = DUT()
def testbench():
    yield dut.out.eq(1)
    yield Tick()
    print((yield dut.out))
    print((yield dut.outn))

sim = Simulator(dut)
sim.add_clock(1e-6)
sim.add_testbench(testbench)
sim.run()

When run, it prints:

1
0

Existing testbenches can be ported to use Simulator.add_testbench by removing extraneous yield or yield Settle() calls (and, in some cases, shifting other yield calls around).

Reusable abstractions can be built by defining generator functions on interfaces or components.

Guidance on simulator modalities

There are two main simulator modalities: add_testbench and add_process. They have completely disjoint purposes:

  • add_testbench is used for testing logic (asynchronous or synchronous). It is not used for behavioral replacement of synchronous logic.
  • add_process is used for behavioral replacement of synchronous logic. It is not for testing logic (except for legacy code), and a deprecation warning is shown when yield Settle() is executed in such a process.

Example of using add_testbench to test combinatorial logic:

m = Module()
m.d.comb += a.eq(~b)

def testbench():
    yield b.eq(1)
    print((yield a)) # => 0

sim = Simulator(m)
# No clock is required
sim.add_testbench(testbench)
sim.run()

Example of using add_testbench to test synchronous logic:

m = Module()
m.d.sync += a.eq(~b)

def testbench():
    yield b.eq(1)
    yield Tick() # same as Tick("sync")
    print((yield a)) # => 0

sim = Simulator(m)
sim.add_clock(1e-6)
sim.add_testbench(testbench)
sim.run()

Example of using add_process to replace the flop above, and add_testbench to test the flop:

m = Module()

def flop():
    while True:
        yield b.eq(~(yield a))
        yield Tick()

def testbench():
    yield b.eq(1)
    yield Tick() # same as Tick("sync")
    print((yield a)) # => 0

sim = Simulator(m)
sim.add_clock(1e-6)
sim.add_process(flop)
sim.add_testbench(testbench)
sim.run()

Why not replace add_process with add_testbench entirely?

It is not possible to use add_testbench processes that drive signals in a race-free way. Consider this (behaviorally defined) circuit:

x = Signal(reset=1)
y = Signal()

def proc_flop():
    yield Tick()
    yield y.eq(x)

def proc2():
    yield Tick()
    xv = yield x
    yv = yield y
    print(f"proc2 x={xv} y={yv}")

def proc3():
    yield Tick()
    yv = yield y
    xv = yield x
    print(f"proc3 x={xv} y={yv}")

If these processes are added using add_testbench, the output is:

proc3 x=1 y=0
proc2 x=1 y=1

If they are added using add_process, the output is:

proc2 x=1 y=0
proc3 x=1 y=0

Clearly, if proc2 and proc3 are other flops in the circuit, perhaps performing a computation on x and y, they must be simulated using add_process.

Reference-level explanation

A new Simulator.add_testbench(process) is added. This function schedules process similarly to add_process, except that before returning control to the coroutine process it performs the equivalent of yield Settle().

add_sync_process and Settle are deprecated and removed in a future version.

Drawbacks

  • Churn.
  • Testbench processes can race with each other, and it is not trivial to use multiple testbench processes in a design in a race-free way.
    • Processes using Settle can race as well.

Rationale and alternatives

The motivating issue has no known alternative resolution besides introducing this (or a very similar) API. The status quo has proved deeply unsatisfactory over many years, and the add_testbench process has been trialed in 2020 and found usable.

Prior art

Other simulators experience similar challenges with event scheduling. In Verilog, this is one of the reasons for the use of blocking assignment =. Where the decision of the scheduling primitive is left to the point of use (rather than the point of declaration, as proposed in this RFC) it leads to complexity in teaching the concept.

Unresolved questions

None.

Future possibilities

In the standard library, fifo.read() and fifo.write() functions could be defined that aid in testing designs with FIFOs. Such functions will only work correctly within testbench processes.

As it is, every such helper function would have to take a domain argument, which can quickly get out of hand. We have DomainRenamer in the RTL sub-language and we may want to have something like that in the simulation sub-language. (@zyp)

A new add_comb_process function could be added, to replace combinatorial logic. This function would have to accept a list of all signals driven by the process, so that combinatorial loops could be detected. (The demand for this has not been high; as of right now, this is not possible anyway.)

The existing add_process function could accept a list of all signals driven by the process. This could aid in error detection, especially as CXXRTL is integrated into the design, because if a simulator process is driving a signal at the same time as an RTL process, a silent race condition occurs.

Allow overriding Value operators

Summary

Allow overriding binary Value operators with reflected operators in a value-castable type.

Motivation

A value-castable type can define operators that return another value-castable. However, if the left side operand is a Value, its operator will be called first, casting the right side operand to a plain Value. This creates a mismatch in behavior depending on the type and order of operands.

As an example, consider the multiplication of a fixed point value-castable with an integral type:

>>> Q(7).const(0.5) * 255
(fixedpoint Q8.7 (* (const 8'sd64) (const 8'd255)))
>>> 255 * Q(7).const(0.5)
(fixedpoint Q8.7 (* (const 8'sd64) (const 8'd255)))
>>> Q(7).const(0.5) * C(255)
(fixedpoint Q8.7 (* (const 8'sd64) (const 8'd255)))
>>> C(255) * Q(7).const(0.5)
(* (const 8'd255) (const 8'sd64))

Explanation

When a binary Value operator is called with a value-castable other, check whether the value-castable implements the reflected variant of the operator first and defer to it when present.

Drawbacks

Extra logic required around every Value operator.

Prior art

This is standard behavior for inheritance in Python:

Note: If the right operand’s type is a subclass of the left operand’s type and that subclass provides a different implementation of the reflected method for the operation, this method will be called before the left operand’s non-reflected method. This behavior allows subclasses to override their ancestors’ operations.

We don't get this behavior automatically because Value is not an ancestor of ValueCastable, but it would make sense for it to behave as it were.

Rationale and alternatives

As an alternative, Value and ValueCastable could be rearchitected so that ValueCastable inherits from either Value or a common base that implements the Value operators. This would make Python do the right thing w.r.t. operator overriding, but is a larger change with more potential for undesirable consequences.

Unresolved questions

None.

Future possibilities

Value.eq() could in the same manner check for and defer to a .req() method, i.e. reflected .eq(), to allow a value-castable to override how assignment from it to a Value is handled.

Component metadata RFC

Summary

Add support for JSON-based introspection of an Amaranth component, describing its interface and properties.

Motivation

Introspection of components is an inherent feature of Amaranth. As Python objects, they make use of attributes to:

  • expose the ports that compose their interface.
  • communicate other kinds of metadata, such as behavioral properties or safety invariants.

Multiple tools may consume parts of this metadata at different points in time. While the ports of an interface must be known at build time, other properties (such as a bus memory map) may be used afterwards to operate or verify the design.

However, in a mixed HDL design, components implemented in other HDLs require ad-hoc integration:

  • their netlist must be consulted in order to know their signature.
  • each port must be connected individually (whereas Amaranth components can use connect() on compatible interfaces).
  • there is no mechanism to pass metadata besides instance parameters and attributes. Any information produced by the instance itself cannot be easily passed to its parent.

This RFC proposes a JSON-based format to describe and exchange component metadata. While building upon the concepts of RFC 2, this metadata format tries to avoid making assumptions about its consumers (which could be other HDL frontends, block diagram design tools, etc).

Guide-level explanation

Component metadata

An amaranth.lib.wiring.Component can provide metadata about itself, represented as a JSON object. This metadata contains a hierarchical description of every port of its interface.

The following example defines an AsyncSerial component, and outputs its metadata:

from amaranth import *
from amaranth.lib.data import StructLayout
from amaranth.lib.wiring import In, Out, Signature, Component


class AsyncSerialSignature(Signature):
    def __init__(self, divisor_reset, divisor_bits, data_bits, parity):
        self.data_bits = data_bits
        self.parity    = parity

        super().__init__({
            "divisor": In(divisor_bits, reset=divisor_reset),

            "rx_data": Out(data_bits),
            "rx_err":  Out(StructLayout({"overflow": 1, "frame": 1, "parity": 1})),
            "rx_rdy":  Out(1),
            "rx_ack":  In(1),
            "rx_i":    In(1),

            "tx_data": In(data_bits),
            "tx_rdy":  Out(1),
            "tx_ack":  In(1),
            "tx_o":    Out(1),
        })


class AsyncSerial(Component):
    def __init__(self, *, divisor_reset, divisor_bits, data_bits=8, parity="none"):
        super().__init__(AsyncSerialSignature(divisor_reset, divisor_bits, data_bits, parity))


if __name__ == "__main__":
    import json
    from amaranth.utils import bits_for

    divisor = int(100e6 // 115200)
    serial = AsyncSerial(divisor_reset=divisor, divisor_bits=bits_for(divisor), data_bits=8, parity="none")

    print(json.dumps(serial.metadata.as_json(), indent=4))

The .metadata property of a Component returns a ComponentMetadata instance describing that component. In the above example, serial.metadata.as_json() converts this metadata into a JSON object, which is then printed:

{
    "interface": {
        "members": {
            "divisor": {
                "type": "port",
                "name": "divisor",
                "dir": "in",
                "width": 10,
                "signed": false,
                "reset": "868"
            },
            "rx_ack": {
                "type": "port",
                "name": "rx_ack",
                "dir": "in",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "rx_data": {
                "type": "port",
                "name": "rx_data",
                "dir": "out",
                "width": 8,
                "signed": false,
                "reset": "0"
            },
            "rx_err": {
                "type": "port",
                "name": "rx_err",
                "dir": "out",
                "width": 3,
                "signed": false,
                "reset": "0"
            },
            "rx_i": {
                "type": "port",
                "name": "rx_i",
                "dir": "in",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "rx_rdy": {
                "type": "port",
                "name": "rx_rdy",
                "dir": "out",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "tx_ack": {
                "type": "port",
                "name": "tx_ack",
                "dir": "in",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "tx_data": {
                "type": "port",
                "name": "tx_data",
                "dir": "in",
                "width": 8,
                "signed": false,
                "reset": "0"
            },
            "tx_o": {
                "type": "port",
                "name": "tx_o",
                "dir": "out",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "tx_rdy": {
                "type": "port",
                "name": "tx_rdy",
                "dir": "out",
                "width": 1,
                "signed": false,
                "reset": "0"
            }
        },
        "annotations": {}
    }
}

The ["interface"]["annotations"] object, which is empty here, is explained in the next section.

Annotations

Users can attach arbitrary annotations to an amaranth.lib.wiring.Signature, which are automatically collected into the metadata of components using this signature.

An Annotation class has a name (e.g. "org.amaranth-lang.amaranth-soc.memory-map") and a JSON schema defining the structure of its instances. To continue our AsyncSerial example, we add an annotation to AsyncSerialSignature that will allow us to describe a 8-N-1 configuration:

class AsyncSerialAnnotation(Annotation):
    schema = {
        "$schema": "https://json-schema.org/draft/2020-12/schema",
        "$id": "https://example.com/schema/foo/1.0/serial.json",
        "type": "object",
        "properties": {
            "data_bits": {
                "type": "integer",
                "minimum": 0,
            },
            "parity": {
                "enum": [ "none", "mark", "space", "even", "odd" ],
            },
        },
        "additionalProperties": False,
        "required": [
            "data_bits",
            "parity",
        ],
    }

    def __init__(self, origin):
        assert isinstance(origin, AsyncSerialSignature)
        self.origin = origin

    def as_json(self):
        instance = {
            "data_bits": self.origin.data_bits,
            "parity": self.origin.parity,
        }
        self.validate(instance)
        return instance

We can attach annotations to a Signature subclass by overriding its .annotations() method:

class AsyncSerialSignature(Signature):
    # ...

    def annotations(self, obj):
        return (*super().annotations(obj), AsyncSerialAnnotation(self))

In this case, AsyncSerialAnnotation depends on immutable metadata attached to AsyncSerialSignature (.data_bits and .parity).

The JSON object returned by serial.metadata.as_json() will now use this annotation:

{
    "interface": {
        "members": {
            "divisor": {
                "type": "port",
                "name": "divisor",
                "dir": "in",
                "width": 10,
                "signed": false,
                "reset": "868"
            },
            "rx_ack": {
                "type": "port",
                "name": "rx_ack",
                "dir": "in",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "rx_data": {
                "type": "port",
                "name": "rx_data",
                "dir": "out",
                "width": 8,
                "signed": false,
                "reset": "0"
            },
            "rx_err": {
                "type": "port",
                "name": "rx_err",
                "dir": "out",
                "width": 3,
                "signed": false,
                "reset": "0"
            },
            "rx_i": {
                "type": "port",
                "name": "rx_i",
                "dir": "in",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "rx_rdy": {
                "type": "port",
                "name": "rx_rdy",
                "dir": "out",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "tx_ack": {
                "type": "port",
                "name": "tx_ack",
                "dir": "in",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "tx_data": {
                "type": "port",
                "name": "tx_data",
                "dir": "in",
                "width": 8,
                "signed": false,
                "reset": "0"
            },
            "tx_o": {
                "type": "port",
                "name": "tx_o",
                "dir": "out",
                "width": 1,
                "signed": false,
                "reset": "0"
            },
            "tx_rdy": {
                "type": "port",
                "name": "tx_rdy",
                "dir": "out",
                "width": 1,
                "signed": false,
                "reset": "0"
            }
        },
        "annotations": {
            "https://example.com/schema/foo/1.0/serial.json": {
                "data_bits": 8,
                "parity": "none"
            }
        }
    }
}

Annotation schema URLs

An Annotation schema must have a "$id" property, which holds an URL that serves as its unique identifier. The following convention is required for the "$id" of schemas hosted at https://amaranth-lang.org, and suggested otherwise:

<protocol>://<domain>/schema/<package>/<version>/<path>.json

where:

  • <domain> is a domain name registered to the person or entity defining the annotation;
  • <package> is the name of the Python package providing the Annotation subclass;
  • <version> is the version of the aforementioned package;
  • <path> is a non-empty string.

For example:

  • "https://amaranth-lang.org/schema/amaranth/0.5/fifo.json";
  • "https://amaranth-lang.org/schema/amaranth-soc/0.1/memory-map.json".

Changes to schema definitions hosted at https://amaranth-lang.org should follow the RFC process.

Reference-level explanation

Annotations

  • add an Annotation base class to amaranth.lib.meta, with:
    • a .schema "abstract" class attribute, which must be a JSON schema, as a dict.
    • a .__init_subclass__() class method, which raises an exception if:
      • .schema does not comply with the 2020-12 draft of the JSON Schema specification.
    • a .origin attribute, which returns the Python object described by an annotation instance.
    • a .validate() class method, which takes a JSON instance as argument. An exception is raised if the instance does not comply with the schema.
    • a .as_json() abstract method, which must return a JSON instance, as a dict. This instance must be compliant with .schema, i.e. self.validate(self.as_json()) must succeed.

The following changes are made to amaranth.lib.wiring:

  • add a .annotations(self, obj) method to Signature, which returns an empty tuple. If overriden, it must return an iterable of Annotation objects. obj is an interface object that complies with this signature, i.e. self.is_compliant(obj) must succeed.

Component metadata

The following changes are made to amaranth.lib.wiring:

  • add a ComponentMetadata class, with:
    • a .schema class attribute, which returns a JSON schema of component metadata. Its definition is detailed below.
    • a .validate() class method, which takes a JSON instance as argument. An exception is raised if the instance does not comply with the schema.
    • .__init__() takes a Component object as parameter.
    • a .origin attribute, which returns the component object given in .__init__().
    • a .as_json() method, which returns a JSON instance of .origin that complies with .schema. It is populated by iterating over the component's interface and annotations.
  • add a .metadata property to Component, which returns ComponentMetadata(self).

Component metadata schema

class ComponentMetadata(Annotation):
    schema = {
        "$schema": "https://json-schema.org/draft/2020-12/schema",
        "$id": "https://amaranth-lang.org/schema/amaranth/0.5/component.json",
        "type": "object",
        "properties": {
            "interface": {
                "type": "object",
                "properties": {
                    "members": {
                        "type": "object",
                        "patternProperties": {
                            "^[A-Za-z][0-9A-Za-z_]*$": {
                                "oneOf": [
                                    {
                                        "type": "object",
                                        "properties": {
                                            "type": {
                                                "enum": ["port"],
                                            },
                                            "name": {
                                                "type": "string",
                                                "pattern": "^[A-Za-z][A-Za-z0-9_]*$",
                                            },
                                            "dir": {
                                                "enum": ["in", "out"],
                                            },
                                            "width": {
                                                "type": "integer",
                                                "minimum": 0,
                                            },
                                            "signed": {
                                                "type": "boolean",
                                            },
                                            "reset": {
                                                "type": "string",
                                                "pattern": "^[+-]?[0-9]+$",
                                            },
                                        },
                                        "additionalProperties": False,
                                        "required": [
                                            "type",
                                            "name",
                                            "dir",
                                            "width",
                                            "signed",
                                            "reset",
                                        ],
                                    },
                                    {
                                        "type": "object",
                                        "properties": {
                                            "type": {
                                                "enum": ["interface"],
                                            },
                                            "members": {
                                                "$ref": "#/properties/interface/properties/members",
                                            },
                                            "annotations": {
                                                "type": "object",
                                            },
                                        },
                                        "additionalProperties": False,
                                        "required": [
                                            "type",
                                            "members",
                                            "annotations",
                                        ],
                                    },
                                ],
                            },
                        },
                        "additionalProperties": False,
                    },
                    "annotations": {
                        "type": "object",
                    },
                },
                "additionalProperties": False,
                "required": [
                    "members",
                    "annotations",
                ],
            },
        },
        "additionalProperties": False,
        "required": [
            "interface",
        ]
    }

    # ...

Reset values are serialized to strings (e.g. "-1"), because JSON can only represent integers up to 2^53.

Drawbacks

  • Developers need to learn the JSON Schema language to define annotations.
  • An annotation schema URL may point to a non-existent domain, despite being well formatted.
  • Handling backward-incompatible changes in new versions of an annotation is left to its consumers.

Rationale and alternatives

  • As an alternative, do nothing; let tools and downstream libraries provide non-interoperable mechanisms to introspect components to and from Amaranth designs.
  • Usage of this feature is entirely optional. It has a limited impact on the amaranth.lib.wiring, by reserving only two attributes: Signature.annotations and Component.metadata.
  • JSON schema is an IETF standard that is well supported across tools and programming languages.
  • This metadata format can be translated into other formats, such as IP-XACT.

Unresolved questions

  • The clock and reset ports of a component are omitted from this metadata format. Currently, the clock domains of an Amaranth component are only known at elaboration, whereas this RFC requires metadata to be accessible at any time. While this is a significant limitation for multi-clock components, single-clock components may be assumed to have a positive edge clock "clk" and a synchronous reset "rst". Support for arbitrary clock domains should be introduced in later RFCs.
  • Annotating individual ports of an interface is out of the scope of this RFC. Port annotations may be useful to describe non-trivial signal shapes, and introduced in a later RFC.

Future possibilities

While this RFC can apply to any Amaranth component, one of its motivating use cases is the ability to export the interface and behavioral properties of SoC peripherals in various formats, such as SVD.

Enumeration type safety

Summary

Make Amaranth Enum and Flag use a custom ValueCastable view class, enforcing type safety.

Motivation

Python Enum provides an opaque wrapper over the underlying enum values, providing type safety and guarding against improper usage in arithmetic operations:

>>> from enum import Enum
>>> class EnumA(Enum):
...     A = 0
...     B = 1
...
>>> EnumA.A + 1
Traceback (most recent call last):
  File "<stdin>", line 1, in <module>
TypeError: unsupported operand type(s) for +: 'EnumA' and 'int'

Likewise, Flag values can be used in bitwise operations, but only within their own type:

>>> from enum import Flag
>>> class FlagA(Flag):
...     A = 1
...     B = 2
...
>>> class FlagB(Flag):
...     C = 1
...     D = 2
...
>>> FlagA.A | FlagA.B
<FlagA.A|B: 3>
>>> FlagA.A | FlagB.C
Traceback (most recent call last):
  File "<stdin>", line 1, in <module>
TypeError: unsupported operand type(s) for |: 'FlagA' and 'FlagB'

However, these safety properties are not currently enforced by Amaranth on enum-typed signals:

>>> from amaranth import *
>>> from amaranth.lib.enum import *
>>> class FlagA(Flag):
...     A = 1
...     B = 2
...
>>> class FlagB(Flag):
...     C = 1
...     D = 2
...
>>> a = Signal(FlagA)
>>> b = Signal(FlagB)
>>> a | b
(| (sig a) (sig b))

Guide-level explanation

Like in Python, Enum and Flag subclasses are considered strongly-typed, while IntEnum and IntFlag are weakly-typed. Enum-typed Amaranth values with strong typing are manipulated through amaranth.lib.enum.EnumView and amaranth.lib.enum.FlagView classes, which wrap an underlying Value in a type-safe container that only allows a small subset of operations. For weakly-typed enums, Value is used directly, providing full interchangeability with other values.

An EnumView or a FlagView can be obtained by:

  • Creating an enum-typed signal (a = Signal(MyEnum))
  • Explicitly casting a value to the enum type (MyEnum(value))

The operations available on EnumView and FlagView include:

  • Comparing for equality to another view of the same enum type (a == b and a != b)
  • Assigning to or from a value
  • Converting to a plain value via Value.cast

The operations additionally available on FlagView include:

  • Binary bitwise operations with another FlagView of the same type (a | b, a & b, a ^ b)
  • Bitwise inversion (~a)

A custom subclass of EnumView or FlagView can be used for a given enum type if so desired, by using the view_class keyword parameter on enum creation.

Reference-level explanation

amaranth.lib.enum.EnumView is a ValueCastable subclass. The following operations are defined on it:

  • EnumView(enum, value_castable): creates the view
  • shape(): returns the underlying enum
  • as_value(): returns the underlying value
  • eq(value_castable): delegates to eq on the underlying value
  • __eq__ and __ne__: if the other argument is an EnumView of the same enum type or a value of the enum type, delegates to the corresponding Value operator; otherwise, raises a TypeError
  • All binary arithmetic, bitwise, and remaining comparison operators: raise a TypeError (to override the implementation provided by Value in case of an operation between EnumView and Value)

amaranth.lib.enum.FlagView is a subclass of EnumView. The following additional operations are defined on it:

  • __and__, __or__, __xor__: if the other argument is a FlagView of the same enum type or a value of the enum type, delegates to the corresponding Value operator and wraps the result in FlagView; otherwise, raises a TypeError
  • __invert__: inverts all bits in this value corresponding to actually defined flags in the underlying enum type, then wraps the result in FlagView

The behavior of EnumMeta.__call__ when called on a value-castable is changed as follows:

  • If the enum has been created with a view_class, the value-castable is wrapped in the given class
  • Otherwise, if the enum type is a subclass of IntEnum or IntFlag, the value-castable is returned as a plain Value
  • Otherwise, if the enum type is a subclass of Flag, the value-castable is wrapped in FlagView
  • Otherwise, the value-castable is wrapped in EnumView

The behavior of EnumMeta.const is modified to go through the same logic.

Drawbacks

This proposal increases language complexity, and is not consistent with eg. how amaranth.lib.data.View operates (which has much more lax type checking).

Rationale and alternatives

Do nothing. Operations on mismatched types will continue to be silently allowed.

Equality could work more like Python equality (always returning false for mismatched types).

Assignment could be made strongly-typed as well (with corresponding hook added to Value).

Prior art

This feature directly parallels the differences between Python's Enum/Flag and IntEnum/IntFlag.

Unresolved questions

Instead of having an extension point via view_class, we could instead automatically forward all otherwise unknown methods to the underlying enum class, providing it the EnumView as self.

Future possibilities

None.

Rename amaranth.lib.wiring.Interface to PureInterface

Summary

The Interface class in amaranth.lib.wiring is renamed to PureInterface, to avoid the impression that it is used for all interfaces.

Motivation

The current naming of the Interface class wrongly suggests that it is the base class to be used for all interfaces, and that isinstance(foo, Interface) is a valid check for an interface. However, this is in stark contrast to how lib.wiring works: any object can be an interface, as long as it has a signature property and compliant members. This misleads users (and, on at least two occasions, amaranth developers), making them write buggy code.

Additionally, the naming makes spoken language ambiguous in a bad way, as it is impossible to tell apart "an interface" and "an Interface".

Therefore, this RFC proposes to rename Interface to something more specific and reflecting its function.

Guide-level explanation

The Interface class in amaranth.lib.wiring is renamed to PureInterface.

Reference-level explanation

The Interface class in amaranth.lib.wiring is renamed to PureInterface.

Drawbacks

Minor churn.

Rationale and alternatives

The new name is, of course, subject to bikeshedding. The names that have been proposed are:

  • PureInterface
  • BareInterface

Prior art

None.

Unresolved questions

None.

Future possibilities

The name Interface that has just been freed up can be reused for an ABC-like class representing all valid interfaces.

Add ShapeLike, ValueLike

Summary

Two special classes are added to the language: ShapeLike and ValueLike. They cannot be constructed, but can be used to determine with isinstance and issubclass to determine whether something can be cast to Shape or a Value, respectively.

Motivation

As it stands, we have multiple types of objects that can be used as shapes (Shape, ShapeCastable, int, range, EnumMeta) and values (Value, ValueCastable, int, Enum). These types have no common superclass, so there's no easy way to check if an object can be used as a shape or a value, save for actually calling Shape.cast or Value.cast. Introducing ShapeLike and ValueLike provides an idiomatic way to perform such a check.

Additionally, when type annotations are in use, there is currently no simple type that can be used for an argument that takes an arbitrary shape- or value-castable object. These new classes provide such a simple type.

Guide-level explanation

In Amaranth, multiple types of objects can be cast to shapes:

  • actual Shape objects
  • ShapeCastable objects
  • non-negative integers
  • range objects
  • Enum subclasses with const-castable values

To check whether an object is of a type that can be cast to a shape, isinstance(obj, ShapeLike) can be used. To check whether a type can be, in general, cast to a shape, issubclass(cls, ShapeLike) can be used.

Likewise, multiple types of objects can be cast to values:

  • actual Value objects
  • ValueCastable objects
  • integers
  • values of Enum subclasses with const-castable values

To check whether an object is of a type that can be cast to a value, isinstance(obj, ValueLike) can be used. To check whether a type can be, in general, cast to a value, issubclass(cls, ValueLike) can be used.

Reference-level explanation

A ShapeLike class is provided. It cannot be constructed, and can only be used with isinstance and issubclass, which are overriden by a custom metaclass.

issubclass(cls, ShapeLike) returns True for:

  • Shape
  • ShapeCastable and its subclasses
  • int and its subclasses
  • range and its subclasses
  • enum.EnumMeta and its subclasses

isinstance(obj, ShapeLike) returns True for:

  • instances of Shape
  • instances of ShapeCastable and its subclasses
  • non-negative int values (and int subclasses)
  • enum.Enum subclasses where every value is a ValueLike

Similarly, a ValueLike class is provided.

issubclass(cls, ValueLike) returns True for:

  • Value and its subclasses
  • ValueCastable and its subclasses
  • int and its subclasses
  • enum.Enum subclasses where every value is a ValueLike

isinstance(obj, ValueLike) returns True iff issubclass(type(obj), ValueLike) returns True.

Drawbacks

More moving parts in the language.

isinstance(obj, ShapeLike) does not actually guarantee that Shape.cast(obj) will succeed — the instance check looks only at surface-level information, and an exception can still be thrown. issubclass(cls, ShapeLike) is, by necessity, even more inaccurate.

Rationale and alternatives

There are many ways to implement the instance and subclass checks, some more precise (and complex) than others. The semantics described above are a compromise.

For isinstance, a simple variant would be to just try Shape.cast or Value.cast and see if it raises an exception. However, this will sometimes result in isinstance(MyShapeCastable(), ShapeLike) returning False, which may be very unintuitive and hide bugs.

The check for a valid shape-castable enum described above is an approximation — the actual logic used requires all values of an enum to be const-castable, not just value-castable. However, there is no way to check this without actually invoking Value.cast on the enum members.

Prior art

Python has the concept of abstract base classes, such as collections.abc.Sequence, which can be used for subclass checking even if they are not actual superclasses of the types involved. ShapeLike and ValueLike are effectively ABCs, though they do not use the actual ABC machinery (due to having custom logic in instance checking).

Unresolved questions

  • Should the exact details of the instance and subclass checks be changed?

Future possibilities

A similar ABC-like class has been proposed for lib.wiring interfaces.

Async testbench functions

Summary

Introduce an improved simulator testbench interface using async/await style coroutines.

Motivation

For the purpose of writing a testbench, an async function will read more naturally than a generator function, especially when calling subfunctions/methods.

A more expressive way to specify trigger/wait conditions allows the condition checking to be offloaded to the simulator engine, only returning control to the testbench process when it has work to do.

Passing a simulator context to the testbench function provides a convenient place to gather all simulator operations.

Guide-level explanation

As an example, let's consider a simple stream interface with valid, ready and data members. We can then implement stream_send() and stream_recv() functions like this:

async def stream_recv(sim, stream):
    sim.set(stream.ready, 1)
    value = await sim.tick().sample(stream.data).until(stream.valid)
    sim.set(stream.ready, 0)
    return value

async def stream_send(sim, stream, value):
    sim.set(stream.data, value)
    sim.set(stream.valid, 1)
    await sim.tick().until(stream.ready)
    sim.set(stream.valid, 0)

sim.get() and sim.set() replaces the existing operations yield signal and yield signal.eq() respectively.

sim.tick() replaces the existing Tick(). It returns a trigger object that either can be awaited directly, or made conditional through .until(). Values of signals can be captured using .sample(), which is used to sample the interface members at the active edge of the clock. This approach makes these functions robust in presence of combinational feedback or concurrent use in multiple testbench processes.

Note This simplified example does not include any way of specifying the clock domain of the interface and as such is only directly applicable to single domain simulations. A way to attach clock domain information to interfaces is desireable, but out of scope for this RFC.

Using this stream interface, let's consider a colorspace converter accepting a stream of RGB values and outputting a stream of YUV values:

class RGBToYUVConverter(Component):
    input: In(StreamSignature(RGB888))
    output: Out(StreamSignature(YUV888))

A testbench could then look like this:

async def test_rgb(sim, r, g, b):
    rgb = {'r': r, 'g': g, 'b': b}
    await stream_send(sim, dut.input, rgb)
    yuv = await stream_recv(sim, dut.output)

    print(rgb, yuv)

async def testbench(sim):
    await test_rgb(sim, 0, 0, 0)
    await test_rgb(sim, 255, 0, 0)
    await test_rgb(sim, 0, 255, 0)
    await test_rgb(sim, 0, 0, 255)
    await test_rgb(sim, 255, 255, 255)

Since stream_send() and stream_recv() invokes sim.get() and sim.set() that in turn will invoke the appropriate value conversions for a value castable (here data.View), it is general enough to work for streams with arbitrary shapes.

Tick() and Delay() are replaced by sim.tick() and sim.delay() respectively. In addition, sim.changed() and sim.edge() is introduced that allows creating triggers from arbitrary signals.

sim.tick() return a domain trigger object that can be made conditional through .until() or repeated through .repeat(). Arbitrary expressions may be sampled at the active edge of the domain clock using .sample().

sim.delay(), sim.changed() and sim.edge() return a combinable trigger object that can be used to add additional triggers.

Active() and Passive() are replaced by an background=False keyword argument to .add_testbench(). Processes created through .add_process() are always created as background processes. To allow a background process to ensure an operation is finished before end of simulation, sim.critical() is introduced, which is used as a context manager:

async def packet_reader(sim, stream):
    while True:
        # Wait until stream has valid data.
        await sim.tick().until(stream.valid)

        # Ensure simulation doesn't end in the middle of a packet.
        async with sim.critical():
            packet = await stream.read_packet()
            print('Received packet:', packet.hex(' '))

When a combinable trigger object is awaited, it'll return the value(s) of the trigger(s), and it can also be used as an async generator to repeatedly await the same trigger. Multiple triggers can be combined. Consider the following examples:

Combinational adder as a process:

a = Signal(); b = Signal(); o = Signal()
async def adder(sim):
    async for a_val, b_val in sim.changed(a, b):
        sim.set(o, a_val + b_val)
sim.add_process(adder)

DDR IO buffer as a process:

clk = Signal(); o = Signal(2); pin = Signal()
async def ddr_buffer(sim):
    while True: # could be extended to pre-capture next `o` on posedge
        await sim.negedge(clk)
        sim.set(pin, o[0])
        await sim.posedge(clk)
        sim.set(pin, o[1])
sim.add_process(ddr_buffer)

Flop with configurable edge reset and posedge clock as a process:

clk = Signal(); rst = Signal(); d = Signal(); q = Signal()
def dff(rst_edge):
    async def process(sim):
        async for clk_hit, rst_hit in sim.posedge(clk).edge(rst, rst_edge):
            sim.set(q, 0 if rst_hit else d)
    return process
sim.add_process(dff(rst_edge=0))

Reference-level explanation

The following Simulator methods have their signatures updated:

  • add_process(process)
  • add_testbench(process, *, background=False)

Both methods are updated to accept an async function passed as process. The async function must accept an argument sim, which will be passed a simulator context. (Argument name is just convention, will be passed positionally.)

The usage model of the two kinds of processes are:

  • Processes are added with add_process() for the sole purpose of simulating a part of the netlist with behavioral Python code.
    • Typically such a process will consist of a top-level async for values in sim.tick().sample(...): or async for values in sim.changed(...), but this is not a requirement.
    • Such processes may only wait on signals, via sim.tick(), sim.changed(), and sim.edge(). They cannot advance simulation time via sim.delay().
    • In these processes, sim.get() is not available; values of signals may only be obtained by awaiting on triggers. sim.set(x, y) may be used to propagate the value of y without reading it.
    • The function passed to add_process() must be idempotent: applying it multiple times to the same simulation state and with same local variable values must produce the same effect each time. Provided that, the outcome of running such a process is deterministic regardless of the order of their execution.
  • Processes are added with add_testbench() for any other purpose, including but not limited to: providing a stimulus, performing I/O, displaying state, asserting outcomes, and so on.
    • Such a process may be a simple linear function, use a top-level loop, or have arbitrarily complex structure.
    • Such processes may wait on signals as well as advance simulation time.
    • In these processes, sim.get(x) is available and returns the most current value of x (after all pending combinatorial propagation finishes).
    • The function passed to add_testbench() may have arbitrary side effects. These processes are scheduled in an unspecified order that may not be deterministic, and no mechanisms are provided to recover determinism of outcomes.
    • When waiting on signals, e.g. via sim.tick(), the requested expressions are sampled before the processes added with add_process() and RTL processes perform combinatorial propagation. However, execution continues only after all pending combinatorial propagation finishes.

The following concurrency guarantees are provided:

  • Async processes registered with add_testbench may be preempted by:
    • Any other process when calling await ....
    • A process registered with add_process (or an RTL process) when calling sim.set() or sim.memory_write(). In this case, control is returned to the same testbench after combinational settling.
  • Async processes registered with add_process may be preempted by:
    • Any other process when calling await ....
  • Legacy processes follow the same rules as async processes, with the exception of:
    • A legacy process may not be preempted when calling yield x:ValueLike or yield x:Assign.
  • Once running, a process continues to execute until it terminates or is preempted.

The new optional named argument background registers the testbench as a background process when true. Processes created through add_process are always registered as background processes (except when registering legacy non-async generator functions).

The simulator context has the following methods:

  • get(expr: Value) -> int
  • get(expr: ValueCastable) -> any
    • Returns the value of expr. When expr is a value-castable, and its shape() is a ShapeCastable, the value will be converted through the shape's .from_bits(). Otherwise, a plain integer is returned. This function is not available in processes created through add_process.
  • set(expr: Value, value: ConstLike)
  • set(expr: ValueCastable, value: any)
    • Set expr to value. When expr is a value-castable, and its shape() is a ShapeCastable, the value will be converted through the shape's .const(). Otherwise, it must be a const-castable ValueLike. When used in a process created through add_testbench, it may execute RTL processes and processes created through add_process.
  • memory_read(instance: MemoryIdentity, address: int)
    • Read the value from address in instance. This function is not available in processes created through add_process.
  • memory_write(instance: MemoryIdentity, address: int, value: int, mask:int = None)
    • Write value to address in instance. If mask is given, only the corresponding bits are written. Like MemoryInstance, these two functions are an internal interface that will be usually only used via lib.Memory. When used in a process created through add_testbench, it may execute RTL processes and processes created through add_process. It comes without a stability guarantee.
  • tick(domain="sync", *, context=None)
    • Create a domain trigger object for advancing simulation until the next active edge of the domain clock. When an elaboratable is passed to context, domain will be resolved from its perspective.
    • If domain is asynchronously reset while this is being awaited, amaranth.sim.AsyncReset is raised.
  • delay(interval: float)
    • Create a combinable trigger object for advancing simulation by interval seconds. This function is not available in processes created through add_process.
  • changed(*signals)
    • Create a combinable trigger object for advancing simulation until any signal in signals changes.
  • edge(signal, value: int)
    • Create a combinable trigger object for advancing simulation until signal is changed to value. signal must be a 1-bit signal or a 1-bit slice of a signal. Valid values for value are 1 for rising edge and 0 for falling edge.
  • posedge(signal)
  • negedge(signal)
    • Aliases for edge(signal, 1) and edge(signal, 0) respectively.
  • critical()
    • Context manager. If the current process is a background process, async with sim.critical(): makes it a non-background process for the duration of the statement.

A domain trigger object is immutable and has the following methods:

  • __await__()
    • Advance simulation and return the value(s) of the sampled expression(s). Values are returned in the same order as the expressions were added.
  • __aiter__()
    • Return an async generator that is equivalent to repeatedly awaiting the trigger object in an infinite loop.
    • The async generator yields value(s) of the sampled expression(s).
  • sample(*expressions)
    • Create a new trigger object by copying the current object and appending the expressions to be sampled.
  • until(condition)
    • Repeat the trigger until condition is true. condition is an arbitrary Amaranth expression. The return value is an unspecified awaitable with await as the only defined operation. It is only awaitable once and returns the value(s) of the sampled expression(s) at the last time the trigger was repeated.
    • Example implementation (without error checking):
      async def until(self, condition):
    while True:
        *values, done = await self.sample(condition)
        if done:
          return values
  • repeat(times: int)
    • Repeat the trigger times times. Valid values are times > 0. The return value is an unspecified awaitable with await as the only defined operation. It is only awaitable once and returns the value(s) of the sampled expression(s) at the last time the trigger was repeated.
    • Example implementation (without error checking):
      async def repeat(self, times):
    values = None
    for _ in range(times):
        values = await self
    return values

A combinable trigger object is immutable and has the following methods:

  • __await__()
    • Advance simulation and return the value(s) of the trigger(s).
      • delay and edge triggers return True when they are hit, otherwise False.
      • changed triggers return the current value of the signals they are monitoring.
      • At least one of the triggers hit will be reflected in the return value. In case of multiple triggers occuring at the same time step, it is unspecified which of these will show up in the return value beyond “at least one”.
  • __aiter__()
    • Return an async generator that is equivalent to repeatedly awaiting the trigger object in an infinite loop.
    • The async generator yields value(s) of the trigger(s).
  • delay(interval: float)
  • changed(*signals)
  • edge(signal, value)
  • posedge(signal)
  • negedge(signal)
    • Create a new trigger object by copying the current object and appending another trigger.
    • Awaiting the returned trigger object pauses the process until the first of the combined triggers hit, i.e. the triggers are combined using OR semantics.

Tick(), Delay(), Active() and Passive() as well as the ability to pass generator coroutines as process are deprecated and removed in a future version.

Drawbacks

  • Increase in API surface area and complexity.
  • Churn.

Rationale and alternatives

sim.get() is not available in processes created with add_process() to simplify the user interface and eliminate the possibility of misusing a helper function by calling it from the wrong type of process.

  • Most helper functions will be implemented using await sim.tick().sample(...), mirroring the structure of the gateware they are driving. These functions may be safely called from either processes added with add_testbench() or with add_process() since the semantics of await sim.tick() is the same between them.
  • Some helper functions will be using sim.get(val), and will only be callable from processes added with add_testbench(), raising an error otherwise. In the legacy interface, the semantics of yield val changes depending on the type of the process, potentially leading to extremely confusing behavior. This is not possible in the async interface.

Alternatives:

  • Do nothing. Keep the existing interface, add Changed() alongside Delay() and Tick(), expand Tick() to add sampling, use yield from when calling functions.

Prior art

Other python libraries like cocotb that originally used generator based coroutines have also moved to async/await style coroutines.

Unresolved questions

  • Is there really a need to ban sim.delay() from processes added with add_process()?
    • The value of add_process() is in ensuring that multiple processes waiting on the same trigger will modify simulation state deterministically no matter which order they run. Multiple processes waiting on a specific point in time using sim.delay() does not appear a common case.
    • sim.delay() in processes added with add_process() may unduly complicate implementation, since timeline advancement then can raise readiness of two kinds of processes instead of one. It is also likely to cause issues with CXXRTL integration.
    • sim.delay() in processes added with add_process() is useful to implement delay and phase shift blocks. However, these can be implemented in processes added with add_testbench() with no loss of functionality, as such blocks do not need delta cycle accurate synchronization with others on the same trigger.

Future possibilities

  • Add simulation helper methods to standard interfaces where it makes sense.
    • This includes lib.memory.Memory.
  • There is a desire for a sim.time() method that returns the current simulation time, but it needs a suitable return type to represent seconds with femtosecond resolution and that is out of the scope for this RFC.

Make Signature immutable

Summary

Remove mutability from amaranth.lib.wiring.Signature.

Motivation

At the time of writing, Signature allows limited mutability: members can be added, but not removed or changed; and a signature may be frozen, preventing further mutation.

The intent behind this feature was unfortunately never explicitly described. I (Catherine) came up with it, to cover the following case: suppose an interface without certain features needs to be connected to an interface with such features. For example, a Wishbone initiator that does not handle errors needs to be connected to a Wishbone decoder that does. In this case, a method on the Wishbone initiator's interface could be used to add a dummy err output, which will always remain at its reset value, zero.

This intent was never realized as the feature was never actually used by Amaranth SoC. In addition, it turned out to be problematic when combined with variable annotations. Consider this class definition:

class SomeInitiator(wiring.Component):
    bus: Out(wishbone.Interface(...))

In this case, only one instance of wishbone.Interface is created. Mutating this instance would be unsound, since it would affect every instance of the component and not just the one for that particular one, and when this causes issues this would be very difficult to debug.

The presence of this feature encouraged adding other mutable objects to Signature subclasses, such as memory maps. That is also unsound, for similar reasons. Because memory maps in Amaranth SoC can also be frozen, considerable additional complexity was introduced since piecewise freezing was now possible.

Because freezing was defined as a property of the signature members dictionary, overloading Signature.freeze was meaningless: it would be possible, in rare but legal cases, to have a signature frozen without freeze being called for that signature, leaving any additional objects that should have been frozen mutable.

The wiring.connect function also supports constants as both inputs and outputs, where a constant input can be connected to a constant output provided their values match. This behavior is also suited for implementing optional features (where the absence of an optional feature means the corresponding ports are fixed at a constant value), and does not pose any hazards.

Guide-level and reference-level explanation

The SignatureMembers.freeze, SignatureMembers.frozen, Signature.freeze, Signature.frozen, FlippedSignatureMembers.freeze, FlippedSignatureMembers.frozen, FlippedSignature.freeze, FlippedSignature.frozen, SignatureMembers.__iadd__, SignatureMembers.__setitem__, FlippedSignatureMembers.__iadd__, FlippedSignatureMembers.__setitem__ methods and properties are removed.

SignatureMembers becomes an immutable mapping.

Signature becomes immutable. Subclasses of Signature are required to ensure any additional methods or properties do not allow mutation.

Drawbacks

The author is not aware of anyone actually using this feature.

Rationale and alternatives

An alternative to this proposal would be to automatically freeze any signature that is used in wiring.Component variable annotations. This does not address similar hazards, such as the case of a user-defined constant SomeSignature = Signature({...}), which is also a legitimate way to define a signature that does not require parameterization. It also would not address hazards associated with interior mutability.

Prior art

None seems applicable. Mutation of interface definitions is uncommon in first place (excluding languages where everything is mutable, like Python).

Unresolved questions

  • Should all interior mutability be prohibited? At the moment it is not completely clear where memory maps should be attached, and requiring no interior mutability would mean it cannot be Signature no matter what. Interior mutability could be left to specific Signature subclasses instead on an experimental basis, and prohibited later if it turns out to be a bad idea.

Future possibilities

Reintroducing mutability of Signature after it has been removed will be unfeasible due to expectation of immutability being baked in widely in downstream code. Once we commit to this RFC we will have to commit to it effectively forever.

Component.signature immutability

Summary

Clearly define the contract for amaranth.lib.wiring.Component.signature: an amaranth.lib.wiring.Signature object is assigned in the constructor to the read-only property .signature.

Motivation

It is important that the signature of an interface object never change. connect relies on the signature to check that the connection being made is valid; if the signature changes after the connection is made (intentionally or accidentally), the design would silently break in a difficult to debug ways. For an ASIC this may mean a respin.

Right now, the guidance for the case where the default behavior of Component.signature is insufficient (i.e. for parametric components) and the generation of the signature must be customized, is to override the signature property, or to assign self.signature = in the constructor. This is clearly wrong: both of these approaches can easily result in the signature changing after construction of the component.

Moreover, at the moment, the implementation of the Component.signature property creates a new Signature object every time it is called. If the identity of the Signature object is important (i.e. if it has interior mutability, which is currently the case in Amaranth SoC), this is unsound. (It is unlikely, though not impossible, that this implementation would return an object with different members.)

Guide-level explanation

To define a simple component whose signature does not change, use variable annotations:

class SimpleComponent(wiring.Component):
    en: In(1)
    data: Out(8)

To define a component whose signature is parameterized by constructor arguments, call the superclass constructor with the signature that should be applied to the component:

class ParametricComponent(wiring.Component):
    def __init__(self, data_width):
        super().__init__({
            "en": In(1),
            "data": Out(data_width)
        })

Do not override the signature property, as both Amaranth and third-party code relies on the fact that it is assigned in the constructor and never changes.

Reference-level explanation

The constructor of Component is updated to take one argument: def __init__(self, signature=None).

  • If the signature argument is not provided, the signature is derived from class variable annotations, as in RFC 2, and assigned to an internal attribute.
  • If the signature argument is provided, it is type-checked/type-cast and assigned to the internal attribute.
    • If a Signature is provided as a value, it is used as-is.
    • If a dict is provided, it is cast by calling wiring.Signature(signature).
    • No other types are accepted.

If both the signature argument is provided and variable annotations are present, the constructor raises a TypeError. This is to guard against accidentally passing a Signature as an argument when constructing a component that is not parametric. (If this behavior is undesirable for some reason, it is always possible to implement a constructor that does not pass superclasses' constructor, and redefine the signature property, but this should be done as last resort only. We should cleary document that the signature property should return the exact same value at all times for any given Component instance.)

The signature property is redefined to return the value of this internal attribute.

No access to this attribute is provided besides the means above, and the name of the attribute is not defined in the documentation.

After assigning the internal attribute, the constructor creates the members as in RFC 2.

Drawbacks

None. This properly enforces an invariant that is already relied upon.

Rationale and alternatives

Some other behaviors were considered for Component: those which would made signature a class attribute, assigned in __init_subclass__. However, this option would leave the signature attribute mutable (as class-level properties are not reasonably supported in Python), which is undesirable, and significantly complicated the case of signatures with interior mutability.

Unresolved questions

None.

Future possibilities

None.

Change semantics of no-argument m.Case()

Summary

Change the semantics of with m.Case(): (without any arguments) from always-true conditional to always-false conditional. Likewise, change value.matches() from returning C(1) to returning C(0).

Motivation

Currently, with m.Case(): results in an always-true conditional, and value.matches() likewise returns a const-1 value. However, this is not consistent with what would be expected from extrapolating the non-empty case.

In all non-empty cases, the semantics are equivalent to an OR of equality comparisons with all specified values:

value.matches(1, 2, 3) =def= (value == 1) | (value == 2) | (value == 3)

value.matches(1, 2, 3) =def= Const(0) | (value == 1) | (value == 2) | (value == 3)

Extrapolating from this, one would expect value.matches() to be the empty OR, ie. Const(0).

It is unlikely that any manually written code will rely on this, but this can be a dangerous trap for machine-generated code that doesn't take the empty case into account.

Guide-level explanation

The semantics of m.Case() change from always matching to never matching. Likewise, the semantics of value.matches() change from always-1 to always-0. The change is committed to the current main branch and will be included in Amaranth 0.5.

Amaranth 0.4.1 is released with the old semantics, but a deprecation warning is emitted whenever m.Case() or value.matches() is used.

Reference-level explanation

See above.

Drawbacks

Obviously backwards-incompatible, changes the semantics of a language construct to the direct opposite.

Rationale and alternatives

It is unlikely anyone actually uses value.matches() directly, since this is just a constant. For generated code, the current semantics is much more likely to be a bug that intended behavior.

For m.Case() the situation is similar: it is redundant with m.Default(), which should be used instead. It is somewhat possible that there is code out there written by someone who didn't know about m.Default() and ended up using m.Case() instead (the official documentation didn't include either for a long time). This code will need to be fixed.

An alternative, if the empty case is deemed too confusing or insufficiently useful, is to make the semantics a hard error instead.

Prior art

The current behavior is likely taken directly from RTLIL, which exhibits a similar inconsistency.

Unresolved questions

Should we include more warnings about the change? This RFC proposes a warning in the 0.4.1 release, but this will never be seen by someone always using amaranth from git main.

Future possibilities

None.

Arbitrary Memory shapes

Obsoleted by This RFC is obsoleted by RFC 45.

Summary

Extend Memory to support arbitrary element shapes.

Motivation

Memory currently only supports plain unsigned elements, with the width set by the width argument. Extending this to allow arbitrary shapes eliminates the need for manual conversion when used to store signed data and value-castables.

Guide-level explanation

The width argument to Memory() is replaced with shape, accepting anything that is ShapeLike. Since a plain bit width is ShapeLike, this is a direct superset of existing functionality.

If shape is shape-castable, each element passed to the init argument is passed through shape.const().

Example:

RGB = StructLayout({"r": 8, "g": 8, "b": 8})

palette = Memory(shape = RGB, depth = 16, init = [
    {"r": 0, "g": 0, "b": 0},
    {"r": 255, "g": 0, "b": 0},
    # ...
])

Reference-level explanation

Memory.__init__() gets a new shape argument, accepting any ShapeLike.

The width argument to Memory.__init__() deprecated and removed in a later Amaranth version. Passing both width and shape is an error.

The Memory.shape attribute is added.

The Memory.width attribute is made a read-only wrapper for Shape.cast(self.shape).width.

The Memory.depth attribute is made read-only.

ReadPort.data and WritePort.data are updated to be Signal(memory.shape).

WritePort.__init__() raises an exception if granularity is specified and shape is not an unsigned Shape.

DummyPort.__init__() gets a new data_shape argument. data_width is deprecated and removed in a later Amaranth version.

Drawbacks

Churn.

Rationale and alternatives

  • This could also be accomplished by adding a wrapper around Memory.
    • A wrapper would result in more code to maintain than simply updating Memory, since both the memory object itself and the port objects would have to be wrapped.

Prior art

Being able to make a Memory with an arbitrary element shape is analogous to being able to make an array with an arbitrary element type in any high level programming language.

Unresolved questions

None.

Future possibilities

  • Once Memory is extended to support arbitrary shapes, it is natural that higher level constructs building on Memory like FIFOs gets the same treatment.

  • granularity could later be allowed to be used with other kinds of shapes.

    • This is desirable for e.g. lib.data.ArrayLayout, but is not currently possible since Memory lives in hdl.mem, and hdl can't depend on lib.

Const from shape-castable

Summary

Allow passing a shape-castable to Const.

Motivation

We currently have two incompatible syntaxes for making a constant, depending on whether it's made from a Shape or a shape-castable. The former uses Const(value, shape), while the latter requires shape.const(value).

Making Const accept shape-castables means we'll have a syntax that works for all shape-likes, reducing the need to special case for shape-castables.

Guide- and reference-level explanation

Const(value, shape) checks whether shape is a shape-castable and returns shape.const(value) when this is the case.

Drawbacks

  • A Const() constructor sometimes returning non-Const objects can be confusing.
    • Signal() already behaves this way.

Rationale and alternatives

  • This is consistent with how Signal() handles shape-castables.

Alternatives:

  • Do not do this. Require code that makes constants from a passed shape-like to check whether it got passed a shape-castable or not and pick the appropriate syntax.

Prior art

RFC #15 added the equivalent behavior to Signal().

Unresolved questions

None.

Future possibilities

None.

Rename reset= to init=

Summary

Rename the reset= keyword argument to init= in Signal(), In(), Out(), Memory(), etc.

Motivation

The value specified by the reset= keyword argument is called an "initial value" in our language guide, never a "reset value", because when the signal is driven combinatorially, it does not get reset to that value (as it holds no state), but rather initialized to that value whenever the value of the signal is computed.

Calling it a "reset value" (even implicitly, by the name of the keyword argument) makes teaching Amaranth more difficult and is a point of confusion. All of our documentation already has to carefully avoid calling it a "reset value", and similarly, any Amaranth experts would have to avoid that in speech. Tutorial authors have to call it out explicitly.

Memory already does not have a reset= argument or accessor; it uses init=. Memory should be consistent with Signal.

Guide-level explanation

All instances of reset= keyword argument in Amaranth are changed to use init=. reset_less=, async_reset=, etc remain as they are. Using reset= raises a deprecation warning but continues working for a long time, perhaps Amaranth 1.0.

Reference-level explanation

The following entry points have their reset= argument and attribute changed to init=:

  • Signal(reset=)
  • Signal.like(reset=)
  • with m.FSM(reset=):
  • FFSynchronizer(reset=)
  • Member(reset=) (which handles In(reset=), Out(reset=))

Specifically:

  • At most one of init= and reset= keyword arguments are accepted. Using reset= prints a deprecation warning. The semantics is exactly the same.
  • Wherever there was an accessible .reset attribute, a getter and a setter are provided that read/write .init.
  • No specific deprecation timeline is established, unlike with many other features. We could do this, perhaps, in two years, or by Amaranth 1.0.

Drawbacks

Churn.

Rationale and alternatives

The primary alternative is to not do this. Amaranth is steadily gaining popularity, so the earlier we do it the better.

There are no good alternatives to the init= name, especially given our already written documentation and its use for Memory.

Prior art

Verilog has initial x = 1;, though that does not result in a reset being inferred.

Unresolved questions

When exactly do we remove reset=? It seems valuable to do it as late as possible to minimize breakage of lightly maintained Amaranth code.

Future possibilities

None.

Move hdl.Memory to lib.Memory

Obsoletes This RFC is functionally a superset of, and obsoletes, RFC 40.

Summary

Move amaranth.hdl.Memory to amaranth.lib.Memory, enabling it to interoperate with the rest of standard library; while we're at it, fix transparency handling.

Motivation

In most ways, a Memory is a normal elaboratable: it has ports, it lowers to a kind of fragment, it can be added as a submodule1, it has behavior that can be completely expressed in terms of an array of Signals (which is also how its simulation is internally implemented). However, because it exists in amaranth.hdl and not amaranth.lib, its ports cannot be interface objects, it cannot have a signature and be a component, its lowering cannot be customized, and its behavior cannot include recognizing lib.data shapes. Each of these facts has concrete repercussions:

  • Amaranth SoC would like to have a Memory as a resource in MemoryMap, but this is not possible as it's not a component.
  • DummyPort should morally be a PureInterface object created from a PortSignature, but is its own thing. (It predates RFC 2, md would not be able to use it even if it didn't.)
  • One has to trust that (a) Yosys memory handling core (between RTLIL and Verilog) is correct and (b) the backend toolchain memory technology mapping code (from Verilog) is correct. This is not a given and both open source and proprietary toolchain components have had bugs related to memory mapping, working around which at the time requires very invasive changes rather than using a custom lowering or a replacement component. Vivado in particular has longstanding issues around LUTRAM read port inference.
  • ASIC flows often support SRAM only in the form of pre-compiled black boxes, without any support for inference. Similarly, handling this case currently requires invasive changes to the code, and is especially difficult in case of standard library FIFOs that are included in third party code, where there is no option besides patching or forking that third party code.
    • For a long time, SPRAM on iCE40 was only supported in the same way when Yosys was used for synthesis, and the workaround for that was universally considered burdensome.2
  • Memories with large amounts of write ports are useful in out-of-order CPUs, yet aren't supported by any of the toolchains Amaranth can work with. Techniques exist to translate memories with any amounts of read and write ports to ones that can be technology mapped by most toolchains, but at the moment it is burdensome to switch between the simulation primitive (which doesn't limit the amount of write ports) and the synthesis lowering.
  • RFC 40 had to back out a part of the proposal that was accepted during the vote (special treatment for amaranth.lib.data.ArrayLayout) after it was discovered that it would require a forbidden dependency.
1

Due to historical reasons related to the memory representation in RTLIL, Amaranth had instructed designers to add memory ports as submodules, but at the time of writing adding either the Memory itself or its ports works.

2

SPRAM inference still does not work for Amaranth code, due to Amaranth not supporting uninitialized memories. That will be addressed by another RFC.

Guide-level explanation

amaranth.lib.memory.Memory is a subclass of amaranth.lib.wiring.Component.

amaranth.lib.memory.ReadPort and .WritePort are interface objects; their signature classes are amaranth.lib.memory.ReadPort.Signature and .WritePort.Signature respectively, following Amaranth SoC conventions. The read and write port domain is a parameter of the interface object. The read port transparent_for is a parameter of the interface object, and contains a list of WritePort objects. The write port granularity is a parameter of the signature.

amaranth.hdl.Memory, .ReadPort, .WritePort, and .DummyPort are deprecated and removed. During the deprecation period they lower to amaranth.lib.memory primitives.

The transparent= parameter of Memory.read_port() is deprecated and removed. During the deprecation period, transparent=True preserves existing behavior.

A new amaranth.hdl.MemoryInstance primitive is added that is lowered by the backend to an appropriate two-dimensional array construct. The interface of this primitive is public but can be changed without notice (although reasonable care will be taken to not break code that relies on it). This primitive exists to fulfill the contract of amaranth.lib (which cannot depend on private Amaranth interfaces) and should not be used whenever it is possible to use amaranth.lib.Memory instead.

Reference-level explanation

A new module amaranth.lib.memory is added.

Memory ports

Two new signatures are added:

  • amaranth.lib.memory.ReadPort.Signature(addr_width, shape), with members:
    • addr: In(addr_width)
    • data: Out(shape)
    • en: In(1, reset=1)
  • amaranth.lib.memory.WritePort.Signature(addr_width, shape, granularity=data_width), with members:
    • addr: In(addr_width)
    • data: In(shape)
    • en: In(en_width, reset=~0)

The constructor WritePort.Signature ensures that at least one of the following requirements holds:

  • granularity is None, in which case en_width = 1, or
  • shape == unsigned(data_width), in which case en_width is chosen such that granularity * en_width == data_width, or
  • shape == amaranth.lib.data.ArrayLayout(_, elem_count), in which case en_width is chosen such that granularity * en_width == elem_count.

These signatures create two new interface objects:

  • amaranth.lib.memory.ReadPort(signature, *, memory, domain, transparent_for), where transparent_for is an iterable of write ports (which is converted to tuple and stored).
  • amaranth.lib.memory.WritePort(signature, *, memory, domain)

These signatures and interface objects are fully introspectable: all of the construction parameters are available as read-only attributes. The interface objects may be created with memory=None to make a stub that can be used in simulation in place of an actual read port.

Memory component

A new component is added:

  • amaranth.lib.memory.Memory(*, shape, depth, init, attrs=None), with methods:
    • .read_port(*, domain="sync", transparent_for=()), which creates a ReadPort instance with a signature whose addr_width=ceil_log2(self.depth). If domain == "comb", the .en of the returned port is tied off to a constant 1, so as to avoid creating a latch.
    • .write_port(*, domain="sync", granularity=None), which creates a WritePort instance with a signature whose addr_width=ceil_log2(self.depth). domain cannot be "comb", so as to avoid creating an array of latches.

This component is introspectable: the construction parameters shape and depth are available as read-only attributes; attrs is exposed in the usual way, and the ports added by the read_port and write_port methods are available via the .r_ports and .w_ports read-only attributes.

The init parameter is mandatory; if it is acceptable to initialize the memory with the default value for shape (typically zero) then init=[] should be used. The provided sequence is used to fill in the first len(init) elements of the initializer, and the default value for shape is used for the rest. When support for indeterminate values is added to Amaranth at a later point, the init argument will become optional, and not providing init or providing init=None will leave the memory filled with indeterminate values.3

3

Currently, Amaranth requires every memory to be initialized. This usually works on the FPGA (not in case of iCE40 SPRAM mentioned above), but only at first boot. It does not work (results in a memory filled with indeterminate values, if it has a write port) after an FPGA design is reset, and it does not work at all on ASIC SRAMs. So this is really a special case that became the general one through historical accident. It is highly desirable to lift this restriction but it cannot be done until Amaranth has a concept of an indeterminate value, and its simulator (as well as, likely, CXXRTL) can compute propagation of such values.

The value of the init parameter, cast to a Memory.Init(*, shape, depth) (name TBD) container is available as the init read-write attribute. This container implements the MutableSequence protocol. The length of this container is always depth. The values that are retrieved by __getitem__ are the same as those stored by __setitem__ or via the constructor parameter, or None if they were not stored. When a value that is not castable to shape is stored, the appropriate exception is propagated. Assigning to out of bounds indices raises IndexError.

The existing amaranth.hdl.Memory.__getitem__ interface is provided on amaranth.lib.memory.Memory with exactly the same semantics as before, which is not defined in this RFC. It is expected that an upcoming RFC addressing async function interface for the simulator will deprecate it.

The signature of amaranth.lib.memory.Memory is always empty because the ports are added using an imperative API. If desired to use with verilog.convert, ports may be manually enumerated, or a wrapper component may be used that has a declarative API.

When amaranth.lib.memory.Memory is elaborated, and the platform has a get_memory function, the Memory.elaborate function returns platform.get_memory(self), as is customary for standard library components.

Inheriting from amaranth.lib.memory.Memory is allowed, with the restriction that only elaborate can be overridden. Combinations of ports that are illegal for a given target can be rejected during elaboration, but not earlier.

Memory instance

A new class is added as a backend for amaranth.lib.memory.Memory:

  • amaranth.hdl.MemoryInstance(*, width, depth, init=None, attrs=None, src_loc=None), with methods:
    • .read_port(*, domain, addr, data, en, transparent_for), which adds a read port
      • addr and en must be value-like
      • data must be an lvalue value-like (with the same validity rules as Instance output ports)
      • transparent_for must be a list of write port indices that this read port should be transparent with
    • .write_port(*, domain, addr, data, en), which adds a write port and returns a port index, which is an opaque integer
      • addr, data, en must be value-like

A MemoryInstance is essentially a special low-level HDL construct that will be lowered to native memory representation in the target language. It serves as the default backend for Memory if the platform doesn't supply its own lowering. Due to its nature as a low-level primitive, it provides no introspection support. It can be used as a submodule in the same way as Elaboratable and Instance.

Notes

The usual src_loc_at= parameters are added where appropriate.

Drawbacks

  • Churn.
  • An internal interface amaranth.hdl.MemoryInstance becomes perma-unstable public, increasing support burden and potential fragility.
  • Having the signature of amaranth.lib.memory.Memory be always empty is pretty weird.

Rationale and alternatives

We could simply not do this and continue to suffer the consequences.

Either more (see "Future possibilities" below) or fewer (see the changes to transparency) features could be integrated into this particular proposal.

The signature of amaranth.lib.memory.Memory could contain all of its ports members. This would violate the current (as of 2024-01) explicitly stated contract of wiring.Component given the builder-style interface. The contract could perhaps be relaxed to say that .signature should only be idempotent, rather than fixed after construction.

  • This isn't possible to solve by making the w_ports member have dimensionality because write ports are non-homogeneous (they can have different granularity).
    • If ratio= is added (see "Future possibilities" below) then this will also apply to r_ports too.
  • A solution not involving dimensionality would be to have a __getattr__ handler matching on r"[rw]_port_\d+" and forwarding to r_ports or w_ports.

A much better solution to the same problem is to have a wrapper amaranth.lib.memory.DeclarativeMemory(*, shape, depth, read_ports=1, write_ports=1, ...) (naming TBD) that has a non-empty signature instantiated in the constructor (without any violation of the wiring.Component contract). This wrapper will also be much more valuable in all the likely use cases of verilog.convert(Memory(...)), as the declarative port count based interface is compatible with including it in a Verilog design (via connect_rpc, generated by Amaranth CLI, integrated via FuseSoC, etc), while the imperative builder based interface is not.

  • The declarative interface could allow configuring granularity only for all write ports at once, solving the issue with non-homogeneous ports.
    • There is probably no way to provide ratio= through such an interface.

Regarding naming:

  • Having XPort and XPort.Signature follows the current Amaranth SoC convention. An alternative would be to have XPortSignature, but this doesn't really have any benefits and requires importing more names in the relatively rare case where ports and their signatures are used explicitly.
  • r_ports and w_ports follow the naming scheme of lib.fifo.

Prior art

This proposal mostly builds on the original amaranth.hdl.mem design, which itself builds on the old Yosys memory cell design. This redesign incorporates lessons learned from the Yosys memory cell redesign, and should handle (with features from "Future possibilities" incorporated) nearly any practical memory configuration that can be synthesized to a synchronous SRAM array.

Resolved questions

  • Should the signature be empty, or should it contain ports?
    • If it should contain ports: Should lib.wiring be amended to support non-homogeneous arrays, or should a workaround be applied for this specific case?
      • A workaround is easy to do in a reasonably backwards-compatible way here, but this might come up more generally in things like AXI interconnect.
    • We decided that the signature should be empty.
  • Should the granularity for ArrayLayout shapes work the way it's described, or some other way?
    • We decided that this behavior is OK.
  • How exactly should this proposal work in simulation? Right now Memory.__getitem__(index: int) returns an unspecified assignable value that can only be used in simulation. It's been a frequent source of issues when someone tried to synthesize it.
    • The amaranth.hdl.MemoryInstance class could provide a __getitem__ implementation returning an unspecified non-value-like proxy class that is a valid simulator command. In this case, Memory subclasses that lower to something else in simulation would have to provide their own __getitem__ override matching their lowering.
    • We decided to leave simulation behavior unspecified in this RFC.

Future possibilities

The following work is expected to be done very shortly after this RFC is accepted:

  • The error-prone amaranth.lib.memory.Memory.__getitem__ interface is deprecated and replaced with one that mirrors the interface used in async testbenches for signals.

Yosys and the new IR support several new features, the support for which can be added in a backwards-compatible way:

  • Memory ports can be "wide", i.e. have their data width be a multiple of the memory width. This allows defining asymmetric memories, which are especially useful for lane count converting async FIFOs. This feature can be supported by adding a ratio= parameter to Memory.read_port() and .write_port(), which causes the returned signature to have ratio fewer address bits and a factor of 1 << ratio more data bits.
  • The output register of a synchronous read port can have its initial value set and a reset input connected. This feature can be supported by adding a reset_less=True parameter to ReadPort.Signature and a reset= (or, after RFC 43, init=) parameter to ReadPort. If reset_less=False, the read port output register is reset by the domain reset signal. (At the moment it is not reset at all.)

The following other options can be explored:

  • At the time, memories have an empty signature, to combine the imperative builder based interface with the requirements placed by wiring.Component. This means that passing an amaranth.lib.memory.Memory to verilog.convert produces a useless module with no ports (unless ports= is used explicitly). Although niche, this becomes much more useful when memories can have custom lowering.
  • Alternatively to the previous item, new component with a (slightly more limited) declarative port count based interface could be added instead, to address a need for integrating Amaranth's custom lowering with Verilog designs.
  • At the time there is no way to pass a memory to VCDWriter(traces=). This limitation may be lifted.
  • To aid simulation access to memories, amaranth.hdl.MemoryInstance's interface may be extended to convey the identity of any particular memory in presence of fragment transformers.
    • Eventually, fragment rewriting itself should go, at which point the identity of the MemoryInstance itself will become usable.
  • Support for uninitialized memories will be added in a future RFC.

Acknowledgements

@wanda-phi and @jfng provided valuable feedback during drafting of this proposal.

Change Shape.cast(range(1)) to unsigned(0)

Summary

Change Shape.cast(range(1)) to return unsigned(0) instead of unsigned(1).

Motivation

Currently, Shape.cast(range(1)) returns unsigned(1). This is inconsistent with the expectation that casting range to a shape will return the minimal shape capable of representing all elements of that range, which is clearly unsigned(0).

This behavior is an accidental result of using bits_for internally to determine required width for both endpoints, which returns 1 for an input of 0.

The behavior introduces edge cases in unexpected places. For example, one may expect that Memory(depth=depth).read_port().addr.width == ceil_log2(depth). This is currently false for depth of 1 for no particularly good reason.

Guide-level explanation

Shape.cast(range(1)) is changed to return unsigned(0). The same applies to any other range whose only element is 0, like Shape.cast(range(0, 2, 2)).

Arguably, this change requires a negative amount of exlanation, since it removes an edge case and brings the behavior into alignment with the language reference.

Reference-level explanation

See above.

Drawbacks

This is a minor backwards compatibility hazard.

Rationale and alternatives

The change itself is simple enough that it cannot really be done any other way.

It would be possible to introduce a compatibility warning to the 0.4 branch. However, a range() signal having a shape that's slightly too large is unlikely to cause problems in the first place, so the warning would cause a mass of false positives without a nice way to turn it off.

Prior art

None.

Unresolved questions

None.

Future possibilities

The bits_for function, which led to this issue in the first place, could be deprecated and removed from public interface to avoid introducing similar problems to external code. Otherwise, it should at the very least be documented and loudly call out this special case.

GPIO peripheral RFC

Summary

Add a SoC peripheral to control GPIO pins.

Motivation

GPIOs are useful for a wide range of scenarios, such as driving external circuitry or acting as fallback for unimplemented/misbehaving peripherals in early iterations of a design.

Amaranth SoC seems like an appropriate place for a GPIO peripheral, which depends on features that are already provided by the library. Due to its relative simplicity, it is also a good candidate for using the recent CSR register API in realistic conditions.

Guide-level explanation

Usage

from amaranth import *
from amaranth.lib import wiring
from amaranth.lib.wiring import connect

from amaranth_soc import csr
from amaranth_soc import gpio


class MySoC(wiring.Component):
    def elaborate(self, platform):
        m = Module()

        # ...

        # Use a GPIO peripheral to control four LEDs:

        m.submodules.led_gpio = led_gpio = gpio.Peripheral(pin_count=4, addr_width=8, data_width=8)

        for n in range(4):
            connect(m, led_gpio.pins[n], platform.request("led", n, dir="io"))

        # Add the peripheral to a CSR bus decoder:

        m.submodules.csr_decoder = csr_decoder = csr.Decoder(addr_width=31, data_width=8)

        csr_decoder.add(led_gpio.bus, addr=0x1000)

        # ...

        return m

Overview

The following figure is a simplified diagram of the peripheral. CSR registers are on the left-hand side, a single pin is on the right side:

Registers

Mode (read/write)

bf([ {name: 'pin_0', bits: 2, attr: 'RW'}, {name: 'pin_1', bits: 2, attr: 'RW'}, {name: 'pin_2', bits: 2, attr: 'RW'}, {name: 'pin_3', bits: 2, attr: 'RW'}, ], {bits: 8})

Each Mode.pin_x field can hold the following values:

class Mode(enum.Enum, shape=unsigned(2)):
    INPUT_ONLY = 0b00
    PUSH_PULL  = 0b01
    OPEN_DRAIN = 0b10
    ALTERNATE  = 0b11

Each Mode.pin_x field resets to INPUT_ONLY.

If Mode.pin_x is INPUT_ONLY:

  • pins[x].oe is 0.
  • pins[x].o is connected to Output.pin_x.
  • Input.pin_x is connected to pins[x].i.
  • alt_mode[x] is 0.

If Mode.pin_x is PUSH_PULL:

  • pins[x].oe is 1.
  • pins[x].o is conencted to Output.pin_x.
  • Input.pin_x is connected to pins[x].i.
  • alt_mode[x] is 0.

If Mode.pin_x is OPEN_DRAIN:

  • pins[x].oe is connected to ~Output.pin_x.
  • pins[x].o is 0.
  • Input.pin_x is connected to pins[x].i.
  • alt_mode[x] is 0.

If Mode.pin_x is ALTERNATE:

  • pins[x].oe is 0.
  • pins[x].o is connected to Output.pin_x.
  • Input.pin_x is connected to pins[x].i.
  • alt_mode[x] is 1.

When alt_mode[x] is 1, a component connected to the GPIO peripheral (such as a pin multiplexer) may assign implementation-specific functions to Input.pin_x and Output.pin_x.

Input (read-only)

bf([ {name: 'pin_0', bits: 1, attr: 'R'}, {name: 'pin_1', bits: 1, attr: 'R'}, {name: 'pin_2', bits: 1, attr: 'R'}, {name: 'pin_3', bits: 1, attr: 'R'}, ], {bits: 4})

The number of synchronization stages between pins[x].i and Input.pin_x is defined by the input_stages parameter, which defaults to 2. Synchronization is done on rising edges of ClockSignal("sync").

Output (read/write)

bf([ {name: 'pin_0', bits: 1, attr: 'RW'}, {name: 'pin_1', bits: 1, attr: 'RW'}, {name: 'pin_2', bits: 1, attr: 'RW'}, {name: 'pin_3', bits: 1, attr: 'RW'}, ], {bits: 4})

Each Output.pin_x field resets to 0.

SetClr (write-only)

bf([ {name: 'pin_0', bits: 2, attr: 'W'}, {name: 'pin_1', bits: 2, attr: 'W'}, {name: 'pin_2', bits: 2, attr: 'W'}, {name: 'pin_3', bits: 2, attr: 'W'}, ], {bits: 8})

  • Writing 0b01 to SetClr.pin_x sets Output.pin_x.
  • Writing 0b10 to SetClr.pin_x clears Output.pin_x.
  • Writing 0b00 or 0b11 to SetClr.pin_x has no effect.

Reference-level explanation

amaranth_soc.gpio.PinSignature

The gpio.PinSignature class is a wiring.Signature describing the interface between the GPIO peripheral and a single pin.

The members of a gpio.PinSignature are defined as follows:

{
    "i": In(unsigned(1)),
    "o": Out(unsigned(1)),
    "oe": Out(unsigned(1)),
}

amaranth_soc.gpio.Peripheral

The gpio.Peripheral class is a wiring.Component implementing a GPIO controller, with:

  • a .__init__(self, *, pin_count, addr_width, data_width, name=None, input_stages=2) constructor, where:
    • pin_count is a non-negative integer.
    • input_stages is a non-negative integer.
    • addr_width, data_width and name are passed to a csr.Builder
  • a .signature property, that returns a wiring.Signature with the following members:
{
    "bus": In(csr.Signature(addr_width, data_width)),
    "pins": Out(gpio.PinSignature()).array(pin_count),
    "alt_mode": Out(unsigned(pin_count)),
}
  • a .elaborate(self, platform) method, that connects each pin in self.pins to its associated fields in the registers exposed by self.bus.

Drawbacks

While existing implementations (such as STM32 GPIOs) have features like pin multiplexing and configurable pull-up/down resistors, in the proposed design, those would have to be implemented in a separate component.

Rationale and alternatives

The proposed design moves platform-specific details outside of its scope, which:

  • reduces the amount of non-portable code to maintain, while allowing implementation freedom for users needing it.
  • avoids introducing dependencies on upstream APIs that are deprecated or expected to evolve soon (such as amaranth.build).

As an alternative:

  • do not host any peripheral in amaranth-soc and always develop them downstream.
  • include a pin multiplexer inside the GPIO peripheral.

Prior art

While they can be found in most microcontollers, the design of GPIOs in STM32 has inspired part of this RFC.

Unresolved questions

  • Should we support synchronizing a pin input on falling edges of the clock ? (@whitequark) Users can synchronize pin inputs on falling edges by instantiating a gpio.Peripheral with input_stages=0, and providing their own synchronization mechanism.

  • What is our policy for backward-compatible extensions of the peripheral ? (@whitequark) If or when we add registers for new optional features, such as pull-ups, switchable schmitt triggers, switchable output driver strengths, etc, each register will always reside at the same fixed (for a given pin count) address regardless of which features are enabled, and each of these registers will be all-0s after reset, where such all-0s value will provide behavior identical to the behavior of the peripheral without the optional feature. Slots in the address space will never be reallocated with a different meaning once allocated upstream in Amaranth SoC.

    • This will be important to industry users caring about forward and cross-family/cross-configuration compatibility.
    • In a perfect world this would be our policy for every peripheral. Realistically, we'll only be able to provide this strongest guarantee for only a subset of peripherals.

Future possibilities

  • Implement a pin multiplexer peripheral, that can be composed with this one to allow reusing other pins of a SoC as GPIOs.
  • Add support for interrupts.

Acknowledgements

@whitequark and @tpwrules provided valuable feedback while this RFC was being drafted.

Print statement and string formatting

Summary

A Print statement is added, providing for simulation-time printing. A Format object, based on Python format strings, is added to support the Print statement. The existing Assert, Assume, and Cover statements are modified to make use of Format functionality as well.

Motivation

This functionality has been requested multiple times, for debugging purposes. While debug printing can be provided externally via Python testbenches, having it as a statement allows it to be embedded directly into the module, without having to carefully plumb the required state into the simulator process. Since it can be passed to yosys, it is also usable for cross-language simulation.

Guide-level explanation

A Print statement can be used to print design state during simulation:

ctr = Signal(16)
m.d.sync += [
    ctr.eq(ctr + 1),
    Print("counter:", ctr),
]

counter: 0
counter: 1
counter: 2
...

The Print statement is modeled after Python's print function and likewise supports sep= and end= keyword arguments.

For more advanced formatting, Print can be paired with Format, which corresponds to Python string formatting and uses a subset of the same syntax:

ctr = Signal(16)
m.d.sync += [
    ctr.eq(ctr + 1),
    Print(Format("Counter: {ctr:04x}", ctr=ctr)),
]

...
Counter: fffe
Counter: ffff
Counter: 0000
Counter: 0001
Counter: 0002
...

The Format functionality supports printing Values as integers, in b, d, o, x, X format types, with most of the relevant formatting options. The c format, which prints the Value treating it as a Unicode code pointer, is also supported.

In addition, the Amaranth-specific s format is supported, which prints a Value as a Verilog-style string (but with opposite byte ordering to Verilog): the Value is treated as a string of octets starting from LSB, any NUL bytes are trimmed, and the octets are interpreted as UTF-8.

Formatting ValueCastable is not supported, and is left for a future RFC. Formatting anything other than Value and ValueCastable will be done at elaboration time by defering to normal Python string formatting.

The Assert, Assume, and Cover statements are extended to take an optional message (which can be a Format object) that will be printed when the statement is triggered:

m.d.sync += Assert(ctr < 10, message=Format("ctr value {} is out of bounds", ctr))

assertion failed at foo.py:13: ctr value 17 is out of bounds

When message is not included, Assert and Assume will get a default message, while Cover will execute silently.

The Print, Assert, Assume, and Cover statements are supported in the Python simulator, in CXXRTL simulator, and (to the best of target language's ability) in Verilog output.

In pysim, Print prints to standard output. Assert and Assume will throw an AssertionError when the test is false, with the formatted message included in the exception message. The Cover statement prints the message to standard output together with its source location, and the actual coverage tracking functionality is not implemented yet.

While Assert executes identically to Assume (with the exception of failure message), Assert is meant for checking post-conditions, while Assume is meant for checking pre-conditions.

Reference-level explanation

Format objects

A new class is introduced for the formatting functionality:

  • amaranth.hdl.Format(format_string, /, *args, **kwargs)

The format string uses exactly the same format string grammar as str.format. Any arguments that are not Value or ValueCastable will be formatted immediately when the Format object is constructed and essentially inlined into the format string. Any ValueCastable arguments are an error (as a placeholder for a future RFC which will specify ValueCastable formatting). Any Value arguments will be stored, to be formatted at simulation time.

For Value, the following subset of standard format specifiers is supported:

  • fill character: supported
  • alignment: <, >, = (but not ^)
  • sign: -, +,
  • # and 0 options: supported
  • width: supported, but must be an elaboration-time constant (ie. cannot be another Value)
  • grouping option: _ is supported, , is not supported
  • type:
    • b, c, d, o, x, X: supported, with Python semantics
    • s: the corresponding Value must be a multiple of 8 bits wide; the value is converted into an UTF-8 string LSB-first, any 0 bytes present in the string are removed, and the result is printed as a string

Two Format objects can be concatenated together with the + operator.

The Format class is added to the prelude.

The Print statement

A Print statement is added:

  • amaranth.hdl.Print(*args, sep=" ", end="\n")

Any argument that is not a Format instance will be implicitly converted by wrapping it in Format("{}", arg).

When the statement is executed in simulation, all Format objects will be evaluated to strings, the results will be joined together with the sep argument, the end argument will be appended at the end, and the resulting string will be printed directly to standard output.

A Print statement is considered active iff all If, Case, and State constructs in which it is contained are active.

Print statements contained in comb domains will be executed:

  • at the beginning of the simulation, if active at that point
  • whenever they become active after being previously inactive
  • whenever any referenced Value changes while they are active

Print statements contained in non-comb domains will be executed whenever they are active on the relevant clock edge.

The Print statement is added to the prelude.

Assert, Assume, Cover

The statements become:

  • amaranth.hdl.Assert(test, message=None)
  • amaranth.hdl.Assume(test, message=None)
  • amaranth.hdl.Cover(test, message=None)

The name argument is deprecated and removed.

The message argument can be either None, a string, or a Format object. If it is a string, it's equivalent to passing Format("{}", s).

Whenever an Assert or Assume is active and test evaluates to false, the simulator throws an AssertionError and includes the formatted message, if any, in the payload.

Whenever a Cover is active and test evaluates to true, and the Cover has a message attached, the formatted message is printed to standard output along with the source location.

The Assert statement is added to the prelude. The Assume and Cover statements need to be imported manually from amaranth.hdl. Their old location in amaranth.asserts is deprecated.

Miscellaneous

To guard against accidentally using plain Python formatting, an implementation of __format__ is added to Value that always raises a TypeError with a message directing the user to Format. If the old behavior of printing the AST serialization is desired for some reason, "{value!r}" can still be used.

Drawbacks

This is some quite complex functionality. It cannot be fully represented in Verilog output, since Verilog is quite limitted in its formatting capabilities.

It is not fully clear what Assume and especially Cover semantics should be, and they are very much formal verification oriented.

Unfortunately the f"" syntax is not supported. The hacks that would be necessary to make this work are too horrifying even for the authors of this RFC.

Rationale and alternatives

The design follows Python prior art, not leaving much space for discussion. The exact subset of supported format specifiers is, of course, to be bikeshedded.

The s format specifier is included to provide a way to implement data-dependent string printing, eg. for printing an enum value. It is expected this may be used for lowering future ValueCastable printing.

Signals that are enum-typed could get special default formatting. However, this will be solved by future ValueCastable hooks for Amaranth enums.

Prior art

The design of Print, Format and Assert closely follows Python, as much as is easily possible.

The s format specifier is based directly on Verilog strings.

The Print statement corresponds and synthesizes to RTLIL $print cell, aligning closely to its capabilities.

The Print statement is loosely modelled on Verilog's $display and related task. The Assert, Assume, and Cover statements are loosely based on corresponding SystemVerilog statements.

Unresolved questions

  • What exact format specifiers should be supported?

Future possibilities

ValueCastable formatting can and should be implemented by an extension hook on the ValueCastable class.

Format could be made into a (non-synthesizable) Value itself, corresponding to $sformat in Verilog. This would be useful for creating more complex formatting for ValueCastables.

Some kind of output redirection or output hook could be implemented in pysim.

Likewise, a hook for assertion failure could be desirable.

Actual coverage tracking could be implemented in pysim for Cover.

More exotic formatting could be useful (eg. for the proposed fixed point numbers).

Some way to print the current simulation time could be useful.

Add ShapeCastable.from_bits and amaranth.lib.data.Const

Summary

A new user-definable method is added to ShapeCastable: from_bits(bits: int). It is used to convert constants into user-defined types, for example when a user-typed value is read in simulation.

A new type is added: amaranth.lib.data.Const. It is used as the return type of Layout.from_bits. Layout.const is also changed to return it instead of View.

Motivation

The current Amaranth model provides a useful set of primitives for manipulating opaque signals and values of custom types, via ShapeCastable and ValueCastable. However, there is little support for manipulating constants of custom types.

This is reasonable, as Amaranth mostly deals with elaborating a design hierarchy that operates on symbolic values that won't have actual values assigned before the circuit is operational. However, this need comes up in the Amaranth simulator, where the values have to be actually materialized.

Specifically, the simulator requires two operations to usefully support ValueCastable expressions:

  1. Conversion from user-facing constant value to raw bits, used when a ValueCastable experession is set to a value, or a cell of ShapeCastable-typed Memory is written by a user process. This need is already covered by the existing ShapeCastable.const.
  2. Conversion from raw bits to user-facing constant value, used when a ValueCastable expression is requested, or a cell of ShapeCastable-type Memory is read by a user process. This need will be covered by the proposed from_bits method.

For amaranth.lib.enum, the implementation of from_bits is trival: the value is looked up in the enum, and the enum value is returned. However, we have no good type to return from from_bits for amaranth.lib.data. Thus, a new lib.data.Const class is proposed.

Guide-level explanation

A new method is added to ShapeCastable: from_bits(bits: int), which, given a constant, interprets the constant as a value of the given ShapeCastable and returns an arbitrary Python value. The returned value must be round-trippable back to the original constant via ShapeCastable.const. This method will be used whenever there is a need to translate a raw bit pattern through a ShapeCastable, such as when reading a ShapeCastable-typed value in simulation.

>>> class Abc(amaranth.lib.enum.Enum, shape=unsigned(2)):
...     X = 0
...     Y = 1
...     Z = 2
...
>>> Abc.from_bits(2)
<Abc.Z: 2>

To support this functionality in amaranth.lib.data, a new lib.data.Const class is added, which wraps a constant. Like View, this class provides attribute-based and indexing-based access to Layout fields. However, when a field is accessed, lib.data.Const returns a raw int value (for plain Shape-typed fields), or calls from_bits on the underlying bit pattern (for ShapeCastable fields). The class is also ValueCastable.

>>> class Def(amaranth.lib.data.Struct):
...     a: Abc
...     b: unsigned(2)
...
>>> a = Def.from_bits(9)
>>> a
Const(StructLayout({'a': <enum 'Abc'>, 'b': unsigned(2)}), 9)
>>> a.a
<Abc.Y: 1>
>>> a.b
2

Since it is a better fit, the return type of Layout.const is changed to lib.data.Const.

Reference-level explanation

A new method is added on ShapeCastable: from_bits(bits: int). The default implementation raises an error. A warning is raised when this method is not overriden in a subclass. The warning will become a hard error in Amaranth 0.6.

The argument to the method must be an int that is a valid constant value of the ShapeCastable's underlying shape.

The method must return something acceptable to the const method on the same ShapeCastable, and the value must round-trip, that is:

# assume `bits` is an int that is a valid const of `shape_castable.as_shape()`
value = shape_castable.const(shape_castable.from_bits(bits)).as_value()
assert isinstance(value, Const)
assert value.value == bits

It is recommended, but not strictly required, that the returned value is a ValueLike.

The sim.get method in the upcoming RFC 36 will call this method when called on a ValueCastable with a custom shape. The sim.set method will likewise call ShapeCastable.const.

A from_bits implementation is added onto amaranth.lib.enum.EnumMeta. If the given bit pattern has a corresponding enum value, the enum value is returned. Otherwise, the argument is returned unchanged.

A new class is added:

  • amaranth.lib.data.Const(layout, bits: int): bits must be a valid constant of the underlying shape; derives from ValueCastable
    • shape(): returns the underlying shape
    • as_value(): returns Const(bits, len(layout))
    • __getitem__:
      • resolves the field like View.__getitem__
      • extracts the corresponding field from bits
      • if the field is a ShapeCastable, returns the result of calling its from_bits with the extracted value
      • otherwise, returns the raw field value as an int
    • __getattr__: resolves the field like View.__getattr__, then proceeds as above
    • __eq__ and __ne__:
      • if the other value is a lib.data.Const with the same layout, compares the underlying bits and returns a Python bool
      • if the other value is a View with the same layout, delegates to Value.__eq__ (and thus returns a 1-bit Value)
      • otherwise, raises TypeError
    • all other operators: raises TypeError (to prevent the default Value operator implementations)

A from_bits implementation is added to Layout, Struct, and Union. It returns a lib.data.Const instance.

Layout.const, Struct.const, and Union.const are changed to return a lib.data.Const of matching layout. They are also changed to accept such constants if given, and return them unchanged.

Drawbacks

Adds an extra hook onto ShapeCastable that everyone must implement. However, it is not clear how this could be avoided.

When a Struct (or Union) is involved, isinstance(sim.get(my_struct_signal), MyStruct) will be false. This could be avoided by horrifying metaclass hacks, but it's unclear if it's a good idea.

The change to Layout.const etc is not fully backwards-compatible. It is believed that this is not much of an issue, since its main user is Signal init= argument, for which it doesn't matter.

Rationale and alternatives

The proposed design of from_bits is essentially the minimal interface needed to support the needs of simulation. Additionally, it is designed so that it can be called essentially recursively by aggregate ShapeCastables, such as Layout.

An alternative (proposed originally by RFC 36) would be to let ValueCastable implement get/set methods for simulation. However, this has obvious drawbacks:

  • two methods needed per ShapeCastable
  • doesn't work for reading or writing memories, as they don't have underlying signals
  • when the value is an aggregate, there's no obvious way to delegate to construct the values of fields

The lib.data.Const design closely follows View. An alternative would be for from_bits to return a list or dict of fields (recursively processed by from_bits), paralleling the accepted argument format of const. However, this results in inferior user experience.

lib.data.Const conceivably could be made mutable, providing __setattr__ / __setitem__ in the future. However, Amaranth tries to avoid mutable data types, and it was felt that keeping it explicitly immutable was the best way forward. Its main use is believed to be simulation, and in simulation one can just call sim.set() on the View field directly if needed. Outside of simulation, we can add a .like()-like constructor for lib.data.Const to modify some fields of the aggregate.

Prior art

The author believes user-defined types usually come in three parts:

  • a ShapeCastable, ie. the type itself
  • a ValueCastable proxying arbitrary Values
  • a class representing constant values of the type

For enums, these correspond to EnumMeta, EnumView, and the Enum itself. For plain values, they correspond to Shape, Value, and int. The proposed RFC 41 likewise includes fixed.Shape, fixed.Value, and fixed.Const.

The first half of this RFC provides a generic way to construct the third part from a bit pattern. The second half of this RFC fills the missing third part for amaranth.lib.data.

Unresolved questions

None.

Future possibilities

The lib.data.Const class can be expanded in functionality:

  • alternative constructors could be added, to let user create and manipulate const struct-typed values

Add amaranth.hdl.Choice, a pattern-based Value multiplexer

Summary

A new type of expression is added: amaranth.hdl.Choice. It is essentially a variant of m.Switch that returns a Value using the same patterns as m.Case for selection.

Motivation

We currently have several multiplexer primitives:

  • Mux, selecting from two values
  • Array indexing, selecting from multiple values by a simple index
  • .bit_select and .word_select, selecting from slices of a single value by a simple index
  • m.Switch together with combinatorial assignment to an intermediate Signal, selecting from multiple values by pattern matching

It is, however, not possible to select from multiple values by pattern matching without using an intermediate Signal and assignment (which can be a problem in contexts where a Module is not available). This RFC aims to close this hole.

This feature is generally useful and has been on the roadmap for a while. The immediate impulse for writing this RFC was using this functionality to implement string formatting for lib.enum values.

Guide-level explanation

The Choice expression can be used to select from among several values via pattern matching:

abc = Signal(8)
a = Signal(8)
b = Signal(8)
sel = Signal(4)
m.d.comb += abc.eq(Choice(sel)
    # any pattern or tuple of patterns usable in `Value.matches` or `m.Case` is valid as key
    .case(1, a)
    .case(2, b)
    .case((3, 4), a + b)
    .case("11--",  a - b)
    .case(("10--", "011-"), a * b)
    .default(13)
)

is equivalent to writing:

with m.Switch(sel):
    with m.Case(1):
        m.d.comb += abc.eq(a)
    with m.Case(2):
        m.d.comb += abc.eq(b)
    with m.Case(3, 4):
        m.d.comb += abc.eq(a + b)
    with m.Case("11--"):
        m.d.comb += abc.eq(a - b)
    with m.Case("10--", "011-"):
        m.d.comb += abc.eq(a * b)
    with m.Default():
        m.d.comb += abc.eq(13)

Choice can also be used on the left-hand side of an assignment:

a = Signal(8)
b = Signal(8)
c = Signal(8)
d = Signal(8)
sel = Signal(2)
m.d.sync += (Choice(sel)
    .case(0, a)
    .case(1, b)
    .case(2, c)
    .default(d)
    .eq(0))

which is equivalent to:

with m.Switch(sel):
    with m.Case(0):
        m.d.sync += a.eq(0)
    with m.Case(1):
        m.d.sync += b.eq(0)
    with m.Case(2):
        m.d.sync += c.eq(0)
    with m.Default():
        m.d.sync += d.eq(0)

If default= is not used, the default value is 0 when on right-hand side, and no assignment happens when on left-hand side.

In addition, Mux becomes assignable if the second and third argument are both assignable.

Reference-level explanation

A new expression type is added:

  • amaranth.hdl.Choice(sel: ValueLike): creates a new Choice expression with no cases
    • .case(self, patterns: int | str | tuple[int | str], value: ValueLike) -> Choice: creates a new Choice based on this one, adding anoter case to it
    • .default(self, value: ValueLike) -> Choice: creates a new Choice based on this one, adding a default case to it

The expression evaluates sel, then matches it to patterns of every .case() in turn. If a match is found, the expression evaluates to the corresponding value of the first found match. If no match is found, the expression evaluates to the value of .default(), or to Cat() with no arguments if no .default() was used. The expression is assignable if all .case() values and .default() value (if any) are assignable.

Neither .case() nor .default() can be called on a Choice that already has a .default().

The shape of the expression is determined as follows:

  • if all value arguments are ShapeCastable, and it is the same ShapeCastable for all of them (as determined by __eq__ on the ShapeCastable), the resulting value is transformed through ShapeCastable.__call__ of that shape-castable
  • if all value arguments have a plain Shape, the minimum shape that can represent the shapes of all cases values and default (ie. determined the same as for Array proxy or Mux tree).
  • otherwise, an exception is raised

The default when .default() is not specified is Cat() to ensure the correct semantics for assignment (ie. discarding the assigned value). This also happens to provide the default 0 when on right-hand side.

Choice is also added to the Amaranth prelude.

In addition, the existing Mux expression is made valid on the left-hand side of an assignment, as if it was lowered as follows:

def Mux(sel, val1, val0):
    return Choice(sel).case(0, val0).default(val1)

ArrayProxy (ie. the type currently returned by Array indexing) is changed from a native Value to a ValueCastable that lowers to Choice (removing the odd case where we can currently build an invaid Value). To avoid problems with lowering the out-of-bounds case, the value returned for out-of-bounds Array accesses is changed to 0.

__eq__ is added to the ShapeCastable protocol and documented (we already have suitable implementations in lib.data and lib.enum).

Drawbacks

The language gets slightly more complex.

Rationale and alternatives

The core functionality is fairly obvious. However, the syntax is not. Other possibilities include:

  • *args (or perhaps iterable) of (key, value) tuples:

    Choices(sel,
    (1, a),
    (2, b),
    ((3, 4), c),
    ("11--", d),
    default=e
)

  • *args of newly-defined amaranth.hdl.Case object (not to be confused with m.Case):

    Choices(sel,
    Case(1, a),
    Case(2, b),
    Case((3, 4), c),
    Case("11--", d),
    default=e,
)

The syntax proposed has been selected to have extension space (in the form of keyword arguments) for e.g. optional guard conditions.

Prior art

This feature is inspired by Rust match construct.

Unresolved questions

The name is subject to bikeshed. An obvious alternative is Match, though this RFC avoids using this name, as it suggests much more advanced pattern matching (with variable capture) than is currently available.

Future possibilities

Optional guard conditions could be added to Choice and m.Switch cases (like Rust's if guards on match branches).

Low-level I/O primitives

Summary

A new first-class concept is introduced to the language, I/O ports, representing top-level ports in synthesis flows. I/O ports can be obtained from the platform, or can be manually constructed by the user in raw Verilog flows that don't use a supported platform.

I/O ports can be connected to Instance ports. This becomes the only thing that can be connected to Instance ports with io directionality.

A new IOBufferInstance primitive is introduced that can consume an I/O port without involving vendor-specific cells.

Motivation

The current process for creating top-level ports is rather roundabout and involves the platform calling into multiple private APIs:

  1. The user calls platform.request, which information about the requested pin, and returns an interface object.
    1. A Signal for the raw port is created and stored on the platform, together with metadata.
    2. If raw port is requested (dir='-'), that signal is returned (in a wrapper object).
    3. Otherwise, an I/O buffer primitive is instantiated that drives the raw port, and the returned interface contains signals controlling that buffer. Depending on the platform, this could be either a vendor-specific cell (via Instance) or a generic tristate buffer (via IOBufferInstance, which is currently a private API).
  2. The hierarchy is elaborated via Fragment.get.
  3. Platform performs first half of design preparation via private Fragment APIs (domains are resolved, missing domains are created).
  4. Platform installs all instantiated I/O buffers into the elaborated hierarchy and gathers all top-level port signals.
  5. Platform finishes design preparation via more private APIs, then calls RTLIL or Verilog backend.
  6. Platform uses the gathered list of top-level ports to create a constraint file.

If the io directionality is involved, the top-level port is a cursed kind of Signal that doesn't follow the usual rules:

  • it effectively has two drivers (the Instance or IOBufferInstance and the external world)
  • on the Amaranth side, it can only be connected to at most one Instance or IOBufferInstance (ie. it cannot be peeked at)

This proposal aims to:

  • provide a platform-independent way to instantiate and use top-level ports
  • significantly reduce the amount of private APIs used in platform code
  • provide a stricter model of I/O ports, no longer overloading Signal

Scope and roadmap

The proposal is only about low-level primitives implemented in amaranth.hdl. It is to be followed with:

  1. Another RFC proposing generic I/O buffer components with platform hooks in lib.io.
  2. Overhaul of the platform API (as of now undetermined).

Guide-level explanation

IOPorts and their use

When creating a synthesizable top-level design with Amaranth, top-level ports are represented by the IOPort class. If you're not using the Amaranth platform machinery, you can instantiate a top-level port like this:

abc = IOPort(8, name="abc") # The port is 8 bits wide.

If a platform is in use, IOPorts should be requested via platform.request instead of created manually — the platform will associate its own metadata with ports.

To actually use such a port from a design, you need to instantiate an I/O buffer:

abc_o = Signal(8)
abc_i = Signal(8)
abc_oe = Signal()
m.submodules += IOBufferInstance(abc, i=abc_i, o=abc_o, oe=abc_oe)
# abc_o and abc_oe can now be written to drive the port, abc_i can be read to determine the state of the port.

This automatically creates an inout port on the design. You can also create an output port by skipping the i= argument, or an input port by skipping the o= and oe= arguments.

If the o= argument is passed, but oe= is not, a default of oe=Const(1) is assumed.

Alternatively, IOPorts can be connected directly to Instance ports:

# Equivalent to the above, using Xilinx IOBUF cells.
for i in range(8):
    m.submodules += Instance("IOBUF",
        i_I=abc_o[i],
        i_T=~abc_oe,
        o_O=abc_i[i],
        io_IO=abc[i],
    )

Just like values, IOPorts can be sliced with normal Python indexing and concatenated with Cat.

IOPorts can only be consumed by IOBufferInstance and Instance ports — they cannot be used as plain values. Every IOPort bit can be consumed at most once.

Only IOPorts (and their slices or concatenations) can be connected to Instance ports with io directionality. Ports with i and o directionalities can be connected to both IOPorts and plain Values.

General note on top-level ports

Amaranth provides many ways of specifying top-level ports, to be used as appropriate for the design:

  1. For a top-level synthesizable design using a platform, ports are created by platform.request which either returns a raw IOPort or immediately wraps it in an I/O buffer.
  2. For a top-level synthesizable design without using a platform, IOPorts can be created manually as above.
  3. For a partial synthesizable design (to be used with eg. a Verilog top level), the top elaboratable can be a lib.wiring.Component, and the ports will be automatically derived from its signature + any unresolved domains.
  4. For a partial synthesizable design without using lib.wiring.Component, the list of signals to be used as top-level ports can be specified out-of-band to the backend via the ports= argument.
  5. For simulation, top-level ports are not used at all.

Reference-level explanation

IOPort and IOValue

Two public classes are added to the language:

  • amaranth.hdl.IOValue: represents a top-level port, or a slice or concatenation thereof. Analogous to Value. No public constructor.
    • __len__(self): returns the width of this value in bits. I/O values have no shape or signedness, only width.
    • __getitem__(self, index: int | slice): like slicing on values, returns an IOValue subclass.
    • metadata: a read-only attribute returning a tuple of platform-specific objects; the tuple has one element per bit.
    • cast(obj) (class method): converts the given object to IOValue, or raises an exception; the only non-IOValue object that can be passed is a 0-length Value, as per below.
  • amaranth.hdl.IOPort(width, *, name, attrs={}, metadata=None): represents a top-level port. A subclass of IOValue. Analogous to Signal.
    • metadata is an opaque field on the port that is not used in any way by the HDL core, and can be used by the platform to hold arbitrary data. It is normally used to store associated constraints to be emitted to the constraint file. The value can be either a tuple of arbitrary Python objects with length equal to width, or None, in which case an all-None tuple of the right width will be filled in.

The Cat function is changed to work on IOValues in addition to plain Values:

  • all arguments to Cat must be of the same kind (either all Values or all IOValues)
  • the result is the same kind as the arguments
  • if no arguments at all are passed, the result is a Value

When IOValues are sliced, the metadata attribute of the slicing result is likewise sliced in the same way from the source value. The same applies for concatenations.

As a special allowance to avoid problems in generated code, Cat() (empty concatenation, which is defined to be a Value) is also allowed wherever an IOValue is allowed.

IOBufferInstance

A new public class is added to the language:

  • amaranth.hdl.IOBufferInstance(port, *, i=None, o=None, oe=None)

The port argument must be an IOValue.

The i argument is used for the input half of the buffer. If None, the buffer is output-only. Otherwise, it must be an assignable Value of the same width as the port. Like for Instance outputs, the allowed kinds of Values are *Signals and slices or concatenations thereof.

The o argument is used for the output half of the buffer. If None, the buffer is input-only. Otherwise, it must be a Value of the same width as the port.

The oe argument is the output enable. If o is None, oe must also be None. Otherwise, it must be either a 1-bit Value or None (which is equivalent to Const(1)).

At least one of i or o must be specified.

The IOBufferInstances are included in the hierarchy as submodules in the same way as Instance and MemoryInstance.

Instance

The rules for instance ports are changed as follows:

  1. io ports can only be connected to IOValues.
  2. o ports can be connected to either IOValues or assignable Values. Like now, acceptable Values are limitted to *Signals and their slices and concatenations.
  3. i ports can be connected to either IOValues or Values.

A zero-width IOValue or Value can be connected to any port regardless of direction, and such connection is ignored.

Elaboration notes

Every IOPort used in the design will become a top-level port in the output, with the given name (subject to the usual name deduplication).

If the IOPort is used only as an input (connected to an Instance port with i directionality, or to IOBufferInstance without o= argument), it becomes a top-level input port.

If the IOPort is used only as an output (connected to an Instance port with o directionality, or to IOBufferInstance without i= argument), it becomes a top-level output port.

Otherwise, it becomes an inout port.

Every bit of an IOPort can be used (ie. connected to IOBufferInstance or Instance) at most once.

After a design is elaborated, the list of all IOPorts used can be obtained by some mechanism out of scope of this RFC.

Calling verilog.convert or rtlil.convert without ports becomes legal. The full logic of determining top-level ports in convert is as follows:

  • ports is not None: the ports include the specified signals, all IOPorts in the design, and clock/reset signals of all autocreated domains
  • ports is None and top-level is Component: the ports include the signature members, all IOPorts in the design, and clock/reset signals of all autocreated domains
  • ports is None, top-level is not Component: the ports include all IOPorts in the design and clock/reset signals of all autocreated domains

Using IOPorts together with other ways of creating top-level ports is not recommended.

IOPorts are not supported in any way in simulation.

Platform interfaces

The interface objects currently returned by platform.request(dir="-") are changed to have an empty signature, with the io, p, n attributes becoming IOPorts.

Drawbacks

Arguably we have too many ways of creating top-level ports. However, it's not clear if we can remove any of them.

The empty Cat() hack is a minor type system wart.

Rationale and alternatives

The change is necessary, as the I/O and platform code is a pile of hacks that needs cleanup.

The core IOPort + IOValue design codifies existing validity rules for Instance io ports. The IOBufferInstance already exists in current Amaranth as a private API used by the platforms.

The change of allowed arguments for Instance io ports is done without a deprecation period. It is felt that this will have a minimal impact, as the proposed change to platform.request with dir="-" in RFC 55 will effectively fix the breakage for most well-formed instances of io port usage, and such usage is not common in the first place.

Prior art

IOValue system is patterned after the current Value system.

The port auto-creation essentially offloads parts of the current platform functionality into Amaranth core.

Unresolved questions

Should we forbid mixing various ways of port creation?

Traditional name bikeshedding.

Future possibilities

Another RFC is planned that will overhaul lib.io, adding generic I/O buffer components.

Initial and reset values on memory read ports

Summary

Synchronous memory read ports get initial values, just like Signals.

Motivation

Currently, the initial state of synchronous memory read port's data output is undefined in synthesis, making it one of the very few places in Amaranth where an undefined value can be obtained, and an unexpected one at that. This also cannot be caught with pysim, as it initializes all read ports to 0. This is easily fixable on almost all FPGA targets, as almost all FPGAs have well-defined initial values.

Further, the read ports on almost all FPGA targets also support a reset signal, which is currently not exposed in any way in Amaranth.

The hardware capabilities for yosys-supported targets are as follows:

  • Xilinx BRAM: arbitrary initial and reset values, reset can be sync or async (except for very old FPGAs that have sync reset only)
  • Lattice, Anlogic, Gowin BRAM; Xilinx URAM, Nexus LRAM: always-zero initial and reset value, reset can be sync or async
  • Efinix, iCE40, Gatemate BRAM; iCE40 SPRAM: undefined initial value, no reset
  • LUT RAM on any target: full support (uses a normal FF to create a sync read port)

Additionally, on any platform where requested initial value or reset is not natively supported by hardware, yosys will insert a FF and a mux to make it work regardless.

This RFC thus proposes to:

  • close the expressiveness hole, making use of the hardware features where supported, using emulation otherwise
  • get rid of the undefined behavior

Guide-level explanation

Synchronous memory read ports behave in most respects like Signals driven from a synchronous clock domain. As such, they have an initial value that can be set via init= on the constructor:

mem = Memory(shape=unsigned(8), depth=8, init=[])
rp = mem.read_port(domain="sync", init=13)

The read port's data signal will hold the initial value at startup and whenever a domain reset occurs. Additionally, as for Signal, reset_less=True can be specified to make the port not react to the domain reset.

Reference-level explanation

lib.memory.Memory.read_port and lib.memory.ReadPort get two new keyword-only arguments: init=None and reset_less=False. For synchronous read ports, they effectively have the same behavior as they have on Signal when applied to port.data. They become introspectable attributes on the port. If the port has comb domain, they cannot be changed from their default values and are meaningless.

hdl.MemoryInstance.read_port likewise gets two new keyword-only arguments: init=0 and reset_less=False. init must be an integer.

Drawbacks

This is not natively supported by all FPGAs. While it can be reasonably cheaply emulated, in the author's experience, any amount of emulation circuitry inserted automatically by the toolchain to ensure well-defined behavior results solely in complaints.

Rationale and alternatives

An alternative is to put init and reset_less on the signature and on the port.data signal instead of on the read port. However, reset_less is currently not supported by lib.wiring, and is_compliant will reject any signal with reset_less=True. This could be changed by a simple amendment to RFC 2.

Prior art

None, or rather obvious enough.

Unresolved questions

None.

Future possibilities

A way to explicitly request undefined initial value could be added in the future, once undefined values are a well-defined concept in Amaranth.

New lib.io components

Summary

Building on RFC 2 and RFC 53, a new set of components is added to lib.io. The current contents of lib.io (Pin and its signature) become deprecated.

Motivation

Currently, all IO buffer and register logic is instantiated in one place by platform.request. Per amaranth-lang/amaranth#458, this has caused problems. Ideally, the act of requesting a specific I/O (user's responsibility) would be decoupled from instantiating the I/O buffer (peripherial library's responsibility).

Further, we currently have no standard I/O buffer components, other than the low-level IOBufferInstance.

Guide-level explanation

IOPort, introduced in RFC 53, is Amaranth's low-level IO port primitive. In lib.io, IOPorts are wrapped in two higher-level objects: SingleEndedPort and DifferentialPort. These objects contain the raw IOValues together with per-bit inversion flags. They are obtained from platform.request. If no platform is used, they can be constructed by the user directly, like this:

a = SingleEndedPort(IOPort(8, name="a")) # simple 8-bit IO port
b = SingleEndedPort(IOPort(8, name="b"), invert=True) # 8-bit IO port, all bits inverted
c = SingleEndedPort(IOPort(4, name="c"), invert=[False, True, False, True]) # 4-bit IO port, varying per-bit inversions
d = DifferentialPort(p=IOPort(4, name="dp"), n=IOPort(4, name="dn")) # differential 4-bit IO port

Once a *Port object is obtained, whether from platform.request or by direct creation, it most likely needs to be passed to an I/O buffer. Amaranth provides a set of cross-platform I/O buffer components in lib.io.

For a non-registered port, the lib.io.Buffer can be used:

port = platform.request(...) # or = SingleEndedPort(,,,)
m.submodules.iob = iob = lib.io.Buffer(lib.io.Direction.Bidir, port)
m.d.comb += [
    iob.o.eq(...),
    iob.oe.eq(...),
    (...).eq(iob.i),
]

For an SDR registered port, the lib.io.FFBuffer can be used:

m.submodules.iob = iob = lib.io.FFBuffer(lib.io.Direction.Bidir, port, i_domain="sync", o_domain="sync")
m.d.comb += [
    iob.o.eq(...),
    iob.oe.eq(...),
    (...).eq(iob.i),
]

For a DDR registered port (given a supported platform), the lib.io.DDRBuffer can be used:

m.submodules.iob = iob = lib.io.DDRBuffer(lib.io.Direction.Bidir, port, i_domain="sync", o_domain="sync")
m.d.comb += [
    iob.o[0].eq(...),
    iob.o[1].eq(...),
    iob.oe.eq(...),
    (...).eq(iob.i[0]),
    (...).eq(iob.i[1]),
]

All of the above primitives are components with corresponding signature types. When elaborated, the primitives call a platform hook, allowing it to provide a custom implementation using vendor-specific cells. If no special support is provided by the platform, Buffer and FFBuffer provide a simple vendor-agnostic default implementation, while DDRBuffer raises an error when elaborated.

Reference-level explanation

The following classes are added to lib.io:

  • class Direction(enum.Enum):
    Input  = "i"
    Output = "o"
    Bidir  = "io"

    Represents a port or buffer direction.

  • SingleEndedPort(io: IOValue, *, invert: bool | Iterable[bool]=False, direction: Direction=Direction.Bidir): represents a single ended port; the invert parameter is normalized to a tuple of bool before being stored as an attribute

    • __len__(self): returns len(io)
    • __getitem__(self, index: slice | int): allows slicing the object, returning another SingleEndedPort; requesting a single index is equivalent to requesting a one-element slice
    • __add__(self, other: SingleEndedPort): concatenates two ports together into a bigger SingleEndedPort
    • __invert__(self): returns a new SingleEndedPort derived from this one by having the opposite (every element of) invert

  • DifferentialPort(p: IOValue, n: IOValue, *, invert: bool | Iterable[bool]=False, direction: Direction=Direction.Bidir): represents a differential pair; both IOValues given as arguments must have equal width

    • __len__(self): returns len(p) (which is equal to len(n))
    • __getitem__(self, index: slice | int): allows slicing the object, returning another DifferentialPort
    • __add__(self, other: DifferentialPort): concatenates two ports together into a bigger DifferentialPort
    • __invert__(self): returns a new DifferentialPort derived from this one by having the opposite (every element of) invert

  • Buffer.Signature(direction: Direction | str, width: int): a signature for the Buffer; if direction is a string, it is converted to Direction

    • i: Out(width) if direction in (Direction.Input, Direction.Bidir)
    • o: In(width) if direction in (Direction.Output, Direction.Bidir)
    • oe: In(1, init=1) if direction is Direction.Output
    • oe: In(1, init=0) if direction is Direction.Bidir

  • Buffer(direction: Direction | str, port: SingleEndedPort | DifferentialPort | ...): non-registered buffer, derives from Component

    • when elaborated, tries to return platform.get_io_buffer(self); if such a function doesn't exist, lowers to IOBufferInstance plus optional inverters

  • FFBuffer.Signature(direction: Direction | str, width: int): a signature for the FFBuffer

    • i: Out(width) if direction in (Direction.Input, Direction.Bidir)
    • o: In(width) if direction in (Direction.Output, Direction.Bidir)
    • oe: In(1, init=1) if direction is Direction.Output
    • oe: In(1, init=0) if direction is Direction.Bidir

  • FFBuffer(direction: Direction | str, port: SingleEndedPort | DifferentialPort | ..., *, i_domain="sync", o_domain="sync"): SDR registered buffer, derives from Component

    • when elaborated, tries to return platform.get_io_buffer(self); if such a function doesn't exist, lowers to IOBufferInstance, plus reset-less FFs realized by m.d[*_domain] assignment, plus optional inverters

  • DDRBuffer.Signature(direction: Direction | str, width: int): a signature for the DDRBuffer

    • i: Out(ArrayLayout(width, 2)) if direction in (Direction.Input, Direction.Bidir)
    • o: In(ArrayLayout(width, 2)) if direction in (Direction.Output, Direction.Bidir)
    • oe: In(1, init=1) if direction is Direction.Output
    • oe: In(1, init=0) if direction is Direction.Bidir

  • DDRBuffer(direction: Direction | str, port: SingleEndedPort | DifferentialPort | ..., *, i_domain="sync", o_domain="sync"): DDR registered buffer, derives from Component

    • when elaborated, tries to return platform.get_io_buffer(self); if such a function doesn't exist, raises an error

All of the above classes are fully introspectable, and the constructor arguments are accessible as read-only attributes.

If a platform is not used, the port argument must be a SingleEndedPort or DifferentialPort. If a platform is used, the platform may define support for additional types. Such types must implement the same interface as *Port objects, that is:

  • __len__ must provide length in bits (so that *Buffer can know the proper signature)
  • __getitem__ which supports slices, and where plain indices return single-bit slices
  • __invert__ that returns another port-like
  • direction attribute that must be a Direction

If a platform is not used, and a DifferentialPort is used, a pseudo-differential port is effectively created.

The direction argument on *Port can be used to restrict valid allowed buffer directions as follows:

  • an Input buffer will not accept an Output port
  • an Output buffer will not accept an Input port
  • a Bidir buffer will only accept a Bidir port

This is validated by the *Buffer constructors. Custom buffer-like elaboratables that take *Port are likewise encouraged to perform similar checking.

The platform.request function with dir="-" returns SingleEndedPort when called on single-ended ports, DifferentialPort when called on differential pairs. Using platform.request with any other dir becomes deprecated, in favor of having the user (or peripherial library) code explicitly instantiate *Buffers. The lib.io.Pin interface and its signature likewise become deprecated.

Drawbacks

The proposed FFBuffer and DDRBuffer interfaces have a minor problem of not actually being currently implementable in many cases, as there is no way to obtain clock signal polarity at that stage of elaboration. A solution for that needs to be proposed, whether as a private hack for the current platforms, or as an RFC.

Using plain domains for DDRBuffer has the unprecedented property of triggering logic on the opposite of active edge of the domain.

Rationale and alternatives

The buffers have minimal functionality on purpose, to allow them to be widely supported. In particular:

  • clock enables are not supported
  • reset is not supported
  • initial values are not supported
  • xdr > 2 is not supported

Such functionality can be provided by vendor-specific primitives.

Prior art

None.

Unresolved questions

None.

Future possibilities

Vendor-specific versions of the proposed buffers can be added to the vendor module, allowing access to the full range of hardware functionality.

Asymmetric memory port width

Summary

Memory read and write ports can have varying width, allowing eg. for memories with 8-bit read path and 32-bit write path.

Motivation

This is a common hardware feature. It allows for eg. having a slow but wide port in one domain, and fast but narrow port in another domain. On platforms lacking dedicated hardware support, it can often be emulated almost for free.

Guide-level explanation

Memories can have asymmetric port width. To use that feature, instantiate the memory with the shape of the narrowest desired port, then pass the aggregate argument on ports that should be wider than that:

m.submodules.mem = mem = Memory(shape=unsigned(8), depth=4096, init=[])
# 8-bit write port
wp = mem.write_port()
# 32-bit read port
rp = mem.read_port(aggregate=4)
# Address 0x123 on rp is equivalent to addresses (0x123 * 4, 0x123 * 4 + 1, 0x123 * 4 + 2, 0x123 + 3) on wp.
# Shape of rp.data is ArrayLayout(unsigned(8), 4)

Reference-level explanation

Both lib.memory.Memory.read_port and lib.memory.Memory.write_port have a new aggregate=None keyword-only argument. If aggregate is not None, the behavior is as follows:

  • aggregate has to be a power of two
  • mem.depth must be divisible by aggregate
  • the shape passed to the *Port.Signature constructor becomes ArrayLayout(memory.shape, aggregate)
  • implied by the previous point, granularity on wide write ports is counted in terms of single memory row
  • the addr_width passed to *Port.Signature constructor becomes ceil_log2(memory.depth // aggregate)

The behavior of wide ports is defined by expanding them to aggregate narrow ports:

  • the data of subport i is connected to data[i] of wide port
  • the addr of subport i is connected to addr * aggregate + i of wide port
  • for read ports and write ports without granularity, en is broadcast
  • for write ports with granularity, en of subport i is connected to en[i // granularity] of wide port

No change is made to signature types or port types. Wide ports are recognized solely by their relation to memory.shape.

The rules for MemoryInstance.read_port and MemoryInstance.write_port change as follows:

  • define aggregate_log2 = ceil_log2(depth) - len(addr), aggregate = 1 << aggregate_log2
  • aggregate_log2 must be non-negative
  • depth must be divisible by aggregate
  • len(data) must be equal to width * aggregate
  • for write ports, one of the following must hold:
    • aggregate is divisible by len(en)
    • len(en) is divisible by aggregate and len(data) is divisible by len(en)

Drawbacks

More complexity.

Wide write ports with sub-row write granularity cannot be expressed. However, there is no hardware that would actually natively support such a combination.

Rationale and alternatives

The design is straightforward enough.

An alternative is not doing this. Yosys already has an optimization pass that recognizes wide ports from a collection of narrow ports, so this is not necessarily an expressiveness hole. However, platforms with non-yosys toolchain could still benefit from custom lowering for this case.

Prior art

This proposal is directly based on yosys memory model.

Unresolved questions

None.

Future possibilities

Similar functionality could potentially be added to lib.fifo.

Single-Field Register Definition and Usage Shortcut

Summary

Add a shortcut to csr.Register to enable easier and cleaner definition and use of registers which contain exactly one csr.Field.

Motivation

Currently, use of a csr.Register in an amaranth-soc peripheral requires creation of a map (or list) of csr.Fields, which actually represent the register data and control access to each part. This is commonly done by creating a Register subclass. Each Field also needs a name (or index) in the Register. However, many registers in peripherals only contain one field, so the extra name and subclass are unnecessary and redundant. This RFC introduces a shortcut for constructing and using a Register containing exactly one un-named Field.

Guide-level explanation

Consider the following simple peripheral which generates a toggling signal on bits of an output corresponding to bits set in a register:

from amaranth import *
from amaranth.lib import wiring
from amaranth.lib.wiring import In, Out
from amaranth_soc import csr

class Toggle(wiring.Component):
    bus: In(csr.Signature(addr_width=1, data_width=32))
    toggle: Out(32)

    class Toggle(csr.Register, access="rw"):
        toggle: csr.Field(csr.action.RW, 32)

    def __init__(self):
        self._toggle = Toggle()

        # ... bridge setup ...

    def elaborate(self, platform):
        m = Module()

        # ... bridge setup ...

        for i in range(32):
            with m.If(self._toggle.f.toggle.data[i]):
                m.d.sync += self.toggle[i].eq(~self.toggle[i])
            with m.Else():
                m.d.sync += self.toggle[i].eq(0)

        return m

The toggle name is used, among other ways, to name the register class, to name the field within, and to access that field on the register instance during elaboration.

This can be simplified by passing the csr.Field directly to the csr.Register without enclosing it in a dict/list and naming/indexing it, or subclassing csr.Register. This also causes the .f member to access that Field directly instead of needing to provide a name/index.

This simplifies the design as follows, reducing clutter and redundancy:

from amaranth import *
from amaranth.lib import wiring
from amaranth.lib.wiring import In, Out
from amaranth_soc import csr

class Toggle(wiring.Component):
    bus: In(csr.Signature(addr_width=1, data_width=32))
    toggle: Out(32)

    def __init__(self):
        # Register can take the Field directly, eliminating the subclass
        self._toggle = csr.Register(csr.Field(csr.action.RW, 32), access="rw")

        # ... bridge setup ...

    def elaborate(self, platform):
        m = Module()

        # ... bridge setup ...

        for i in range(32):
            # FieldAction accessed directly, no need to specify `toggle` again
            with m.If(self._toggle.f.data[i]):
                m.d.sync += self.toggle[i].eq(~self.toggle[i])
            with m.Else():
                m.d.sync += self.toggle[i].eq(0)

        return m

Reference-level explanation

(with reference to RFC #16)

csr.reg.Register

The csr.reg.Register class describes a CSR register Component, with:

  • a .__init__(self, fields=None, access=None) constructor, where:
    • fields is either:
      • a dict that will be instantiated as a FieldActionMap;
      • a list that will be instantiated as a FieldActionArray;
      • a Field that will be instantiated as a FieldAction;
      • None; in this case a FieldActionMap is instantiated from Field objects in variable annotations.
    • access is either a csr.Element.Access value, or None.
  • a .field property, returning the instantiated FieldActionMap/FieldActionArray/FieldAction;
  • a .f property, as a shorthand to self.field;
  • a .__iter__(self) method that yields, for each contained field, a tuple containing its path (as a tuple of names or indices) and its instantiated FieldAction. If only a single Field was supplied, its path is always tuple().

Drawbacks

  • A novice might not understand that it's possible to create a Register with multiple Fields if exposed only to code which uses single-Field Registers.
  • There is a difference between a Register with one named/indexed Field and with one unnamed Field.
  • Library code will be made more confusing by having fields refer to possibly only one field.
  • Downstream code will have to deal with a third type of object returned by the .f property which behaves unlike the current two.
  • BSP/doc generators will have to intelligently render a Field with an empty name and path (likely by omitting them, possibly by reusing the register's name).
    • An empty name is prohibited by FieldActionMap, so empty names are a novel problem.
    • The register does not know its own name independently of its container, so this may be difficult in practice.
  • Adding a second Field to a register created this way will break all accesses to the .f property and likely all BSP users (though the actual bus transactions to the first Field will not change).
    • This could be especially entertaining if the new Field names happen to be the same as properties of the first Field's FieldAction.
    • BSP users will have to change all constants/functions named after just the register to instead use the register + the field name.

Rationale and alternatives

  • Simple and easily explainable change, easy to migrate code to, though no migration is even necessary
  • Minimal change to the library's existing code
  • Nicely reduces redundant names, types, and properties
  • Not strictly necessary, not having it will just make peripheral code a little more cluttered
  • Users could instead be taught to eliminate the subclass by passing a dict to the Register constructor and assign the .f property of interest to a local variable to de-clutter code

Prior art

AVR microcontrollers have many registers where the field name is the same as the register name, though this is not always the case for single-field registers. Application code usually uses the register name in this case and ignores the field name.

STM32 microcontrollers are similar, but the field name is usually a suffix of the register name, as the field name is not expected to be globally unique. However, the generated BSP files do appear to always contain the field name at least somewhere.

Field arrays are already in some sense anonymous, being named by an integer instead of a string.

More experienced input is welcomed here.

Unresolved questions

  • Should we change fields to field in the constructor and properties? This could break existing code.
    • The property will be .field and the constructor will be fields=.
  • Should we add field too? This would access the same object/s as fields and so would make available the option to use the right plurality, though it would be more code and wouldn't force it.
    • The property will be .field and the constructor will be fields=.
  • Should we force a Register with a single Field to always have that one be un-named? Would create backwards compatibility problems, but reduce ambiguity.
    • No, would cause backwards compatibility problems, which we don't want.
  • Should we go further? Register could take a single FieldAction and automatically wrap it in a Field (and inherit its access mode).
    • No, unnecessarily convenient and not yet proved necessary by experience.

Future possibilities

None obvious, this is a pretty small and self-contained idea.

Core support for ValueCastable formatting

Summary

Format hooks are added, allowing custom formatting to be implemented for ValueCastables.

This RFC is only about adding hook support for custom ShapeCastables. Providing actual formatting implementation for lib.data and lib.enum is left for a future RFC.

Motivation

Custom types, like enums and data structures, will not make immediate sense to the user when printed as raw bit patterns. However, it is often desirable to print them out with the Print statement. Thus, an extension point for custom formatting needs to be added to the Format machinery.

Guide-level explanation

ShapeCastable subtypes can define their own ways of formatting values by implementing the format hook:

class FixedPoint(ShapeCastable):
    ...

    def format(self, value, format_desc):
        if format_desc == "b":
            # Format a fixed-point value as binary.
            return Format("{value.int:b}.{value.fract:0{fract_bits}b}}", value=value, fract_bits=len(value.fract))
        elif format_desc == "x":
            # Format a fixed-point value as hexadecimal (very simplified implementation).
            assert len(value.fract) % 4 == 0
            return Format("{value.int:x}.{value.fract:0{fract_digits}x}}", value=value, fract_digits=len(value.fract) // 4)
        else:
            ...

# A fixed-point number with 8 integer and 8 fractional bits.
num = Signal(FixedPoint(8, 8))
m.d.comb += [
    num.eq(0x1234)
    Print(Format("Value in binary: {:b}", num)),
    Print(Format("Value in hexadecimal: {:x}", num)),
]

prints:

Value in binary: 00010010.00110100
Value in hexadecimal: 12.34

However, sometimes it is also useful to print the raw value of such a signal. A shorthand is provided for that purpose:

m.d.comb += Print(Format("Value: {num:x} (raw: {num!v:x})", num=num))

Value: 12.34 (raw: 1234)

Reference-level explanation

A new overridable method is added to ShapeCastable:

  • format(self, value: ValueCastable, format_desc: str) -> Format

When a ValueCastable is formatted without specifying a conversion (ie. "!r" or "!v"):

  • shape() is called
  • if the shape is a ShapeCastable and has a format method, the value-castable being formatted and the format descriptor (the part after : in {}, if any) are passed directly to shape.format(), and the result (which must be a Format object) is included directly in place of the format specifier
  • otherwise (the shape is a plain Shape, or doesn't have format), Value.cast() is called on the value-castable, and formatting proceeds as if it was a plain value

A new conversion, !v, is added to Format (with syntax analogous to !r). When specified, the value being formatted is converted through Value.cast before proceeding with further formatting. It can be used to print the raw value of value-castables. It is a no-op when used with a plain Value.

An implementation of __format__ is added to the ValueCastable base class that always raises a TypeError, directing the user to Format instead (like the one that already exists on plain Value).

Drawbacks

A new reserved name, format, is added to ShapeCastable, which is intended to be a fairly slim interface.

The __format__ on ValueCastable is the first time we have a method with an actual implementation.

Rationale and alternatives

The format hook is added on ShapeCastable instead of ValueCastable. This ensures that ValueCastables without a custom shape automatically get plain formatting.

The default behavior proposed in this RFC ensures that a formatting implementation is always available, allowing generic code to print arbitrary values without worrying about an exception. Eg. something like lib.fifo could use debug prints when an element is added, automatically using rich formatting for shapes with format, while falling back to plain integers when rich formatting is not available.

alternative default behaviors possible are:

  • raise TypeError (disallow formatting value-castables without explicitly implemented formatting)
  • no default, require every ShapeCastable to implement format (compatibility breaking)

To avoid reserving a name and interfering with user code, format could be renamed to _amaranth_format.

Prior art

This RFC is modelled directly on the __format__ extension point in Python.

Unresolved questions

Bikeshed: what should !v be called? Alternatives proposed:

  • !v (cast to value)
  • !i (print as integer)
  • !n (print as number)
  • !R (print raw)
  • !l (lower to a value)
  • !av (as value)

Future possibilities

Actual formatting will need to be implemented for lib.data and lib.enum.

Get rid of upwards propagation of clock domains

Summary

Upwards propagation of clock domains is removed, local=True effectively becomes the default.

Motivation

Currently, a clock domain created anywhere in the hierarchy is, by default, propagated everywhere within that hierarchy. The other option is marking a clock domain with local=True, which restricts propagation to only downwards from the point of definition.

The default behavior constitutes the ultimate implicit spooky action at a distance, making it hard to reason about clock domain origins in complex Amaranth design. It is also rarely used. This dangerous default should be changed to something more reasonable.

Guide and reference-level explanation

In version 0.5, upwards domain propagation becomes deprecated. Any use of a domain that wouldn't be valid without upwards propagation (ie. wouldn't be valid if the domain were local=True) triggers a deprecation warning.

In version 0.6, upwards domain propagation is removed entirely. The local argument to ClockDomain constructor becomes redundant and is deprecated.

In version 0.7, the local argument is removed.

Drawbacks

A little bit of churn for designs with clock generator modules.

When propagating a domain upwards is actually desired (eg. for clock generator modules), a workaround is now necessary to route the domain to the toplevel. The simplest way is to set an eg. cd_sync attribute on the module in the constructor, then do m.domains.sync = clkgen.cd_sync in the top-level. This has the slight disadvantage that the clock generator module cannot decide on the attributes of the clock domain (clock polarity, reset asyncness) based on the platform.

Rationale and alternatives

The core proposal is straightforward. The main question is how to handle the usecases currently served by purposeful use of upwards domain propagation. There are three alternatives:

  1. None. Clock generator modules must export their domains through some other existing Amaranth functionality. This is the option proposed above.

  2. Keep the current mechanism as-is, but make it opt-in, such by requiring ClockDomain(global=True).

  3. Add a mechanism to explicitly import a domain from a submodule. A draft is proposed here, for discussion purposes:

    m.submodules.clkgen = ClockGenerator(...)
m.domains.sync = ImportedDomain("clkgen", "sync") # Imports a domain defined in the submodule "clkgen" named "sync".

We feel that 1. is the best option to take, as introducing a new mechanism when a full redesign of the system is pending is likely to just result in another thing that will have to be deprecated later.

Prior art

None.

Unresolved questions

None.

Future possibilities

The concept of "private" clock domains has been proposed: clock domains that don't propagate at all, including downwards.

It's clear that clock domain overhaul with a larger scope needs to be done. This RFC is (among other things) intended to enable such overhaul, by removing a feature likely to make it infeasible.

Minimal streams

Summary

Define a protocol for unidirectional communication (data streaming) with ready/valid handshaking.

Motivation

Digital designs are typically built from separately designed and tested functional blocks that are composed together and perform a high-level task by exchanging data. These blocks define interfaces that typically combine a payload (e.g.: bytes or symbols received or sent via a physical interface, addresses and data on a memory bus, samples exchanged between DSP blocks) with handshaking or flow control (e.g.: whether the physical interface can accept a new symbol or has one available, whether a memory transaction is in progress, whether the DSP block has finished processing).

Amaranth supports specifying the structure of such interfaces with the very general amaranth.lib.wiring module, but the structure is only half of the story, as even the simplest flow control schemes include complex requirements, restricting not only the permissible sequences of states of flow control signals, but often also the domain from which the signals may be driven, and which signals may combinatorially depend on which other ones. A mistake in flow control circuitry is often difficult to discover (it may only manifest when used with a subset of compatible blocks and not surface in tests) and debug (waveform viewers generally do not show data dependencies so it may not be clear why a certain signal is asserted or deasserted).

This complexity and challenges makes it useful to standardize on specific data exchange interfaces with a simple, robust, flexible, and well-defined flow control scheme. This proposal offers one such scheme suited for unidirectional communication only. In turn, it can be used to build bidirectional communication protocols.

Guide-level explanation

The amaranth.lib.stream module defines the concept of a stream. A stream is an amaranth.lib.wiring interface consisting of three port members:

  • payload: Out(payload_shape)
  • valid: Out(1)
  • ready: In(1)

The purpose of a stream is to mediate unidirectional data transfer between two components, called a transmitter component (which drives payload and valid members in its output stream, and samples ready) and a receiver component (which drives ready member in its input stream, and samples payload and valid). The directions of port members above are from the perspective of the transmitter component, as required by amaranth.lib.wiring. The values of every member must be fixed or change according to the same clock domain.

Data is transferred via the stream according to the following rules:

  1. On each cycle where both valid and ready are asserted, a transfer is performed: the contents of payload is conveyed from the transmitter to the receiver.
  2. Once the transmitter asserts valid, it must not deassert it until a transfer is performed.
  3. As an exception to rule (2), when the transmitter is reset it must deassert valid, unless it ties valid to Const(1) in the interface object.
  4. Once the transmitter asserts valid, it must not change the contents of payload until a transfer is performed.
  5. The transmitter must not wait for ready to be asserted before asserting valid. Any form of feedback from ready that causes valid to go from deasserted to asserted is prohibited.
  6. Once the receiver asserts ready it may deassert it at any time.
  7. The receiver may wait for valid to be asserted before asserting ready. Combinatorial feedback from valid to ready is allowed.

These rules ensure that transmitters and receivers can be developed independently yet safely used together, without unduly restricting the application-specific conditions that determine assertion of valid and ready.

Some transmitters and receivers may be designed in a way that requires them to perform a transfer on every cycle when they are not reset. Such transmitters and receivers may (but are not required to) tie valid to Const(1). Similarly, some transmitters and receivers may be designed without support for backpressure. Such transmitters and receivers may (but are not required to) tie ready to Const(1).

If these control signals are tied to Const(1), then amaranth.lib.wiring.connect ensures that only compatible streams are connected. For example, if the transmitter does not support backpressure (ready tied to Const(1)), it can only be connected to receivers that do not support backpressure. However, receivers that do not support backpressure can be connected to any transmitter, since the receiver would appear as an always-ready one to a transmitter that does support backpressure. Similar logic applies to valid when it is tied to Const(1).

Reference-level explanation

A new amaranth.lib.stream module is added, defining two classes: Signature and Interface:

  • amaranth.lib.stream.Signature(payload_shape, *, always_valid=False, always_ready=False)
    • with members:
      • payload: Out(payload_shape)
      • valid: Out(1)
      • ready: In(1)
    • with properties:
      • always_valid: bool
      • always_ready: bool
    • with methods:
      • __eq__(other): requires isinstance(other, amaranth.lib.stream.Signature) and all three of payload_shape, always_valid, always_ready to match
      • create(): constructs an amaranth.lib.stream.Interface
  • amaranth.lib.stream.Interface(signature, *, path=None, src_loc_at=0)
    • with attributes:
      • .payload = Signal(payload_shape)
      • If signature.always_valid == False: .valid = Signal()
      • If signature.always_valid == True: .valid = Const(1)
      • If signature.always_ready == False: .ready = Signal()
      • If signature.always_ready == True: .ready = Const(1)
    • with properties:
      • p: alias of payload

Like other amaranth.lib modules, it is intended to be imported with the from amaranth.lib import stream statement and the classes be used with their qualified names, stream.Signature and stream.Interface.

There is purposefully no amaranth.lib.stream.Signature.payload_shape property. It is expected that a future RFC will enable construction and introspection of complex streams, and the provision of any introspection of the payload is deferred until then.

The amaranth.lib.fifo.FIFOInterface class is extended with properties:

  • r_stream: stream.Interface: interface adapter with payload = .r_data, valid = .r_rdy, ready = .r_en.
  • w_stream: stream.Interface: interface adapter with payload = .w_data, valid = .w_en, ready = .r_rdy.

Drawbacks

This proposal errs heavily on the side of minimalism, making it less broadly applicable.

This proposal locks in two major design decisions:

  • That payload is a port member, not an interface member.
  • That the stream signature always has exactly these three members.

If this turns out to be a mistake, existing code relying on the guarantees provided by these decisions will break.

Rationale and alternatives

A: Scope of this proposal

Streams are one of the most highly coveted planned features. While we could choose to not provide them at all (as an external library implementation is possible), this will make Amaranth less competitive and perpetuate the status quo of every complex downstream project implementing their own, incompatible, version of streams.

This module is described as "minimal" because it is highly limited in scope. This has the desirable qualities that it is easier to implement, document, and teach; that it is more widely compatible with existing code using streams; and that it is amenable to further gradual expansion.

  • The payload is an opaque (to the amaranth.lib.stream module) shape that is not given further meaning.
  • The rules of data transfer are very restrictive; in particular rules (5) and (7) ensure that the flow control is performed by the transmitter and the receiver independently.
  • No interconnect components are proposed; only a minimal viable extension for the standard FIFOs, which is likely to be used in most designs.

The scope has been chosen to provide a useful implementation without delaying further work that relies on streams until every detail involved in defining fully functional streams can be agreed upon. Although it largely avoids delving into such detail, it does make some choices that will impact further work (see the Drawbacks section). We could decide to reject this proposal in favor of one with a broader scope and make a choice informed by further design and prototyping, but this is likely to unacceptably delay other work.

B: Always-valid and always-ready streams

Although, in general, a transmitter may produce a payload only on some cycles (communicated by valid) and a receiver may accept a payload only on some cycles (communicated by ready), there are important cases where dynamic flow control on either endpoint is undesirable, such as:

  • A SerDes/transceiver block would typically produce a symbol and consume a symbol on each cycle, with no ability to pause transmission or reception without losing the link.
  • Similarly, a parallel ADC will produce a code on each cycle, and a parallel DAC will accept a code on each cycle.
  • When interfacing with such I/O devices, there is no need for flow control, and it should be excluded from the interconnect as it can cause significant overhead. This especially applies to the ready signal, which can form long combinatorial chains through the interconnect, pessimizing delay. The valid signal is registered, pessimizing area alone.
  • Digital signal processing blocks often perform computations at a constant rate; for example, a pipelined multiplier may accept a pair of operands each cycle, and produce a result each cycle, with a fixed latency of 5. In such blocks, accounting for bubbles in the pipeline can be complex and error-prone, while stopping the entire pipeline if the inputs are not valid can cause deadlocks.

It appears essential to support endpoints that always assert valid and/or ready. There are several possible approaches to implementing them:

  1. Do nothing special. Assign valid and/or ready to 1 at all times.
  2. Remove valid and/or ready from the signature of such streams, and treat the four kinds of streams entirely separately.
  3. Remove valid and/or ready from the signature of such streams, and use subclasses to unify the four kinds of streams.
  4. Set the valid and/or ready attributes to Const(1) and rely on amaranth.lib.wiring.connect() to enforce well-formedness of connections.
    • This is the option used in this proposal.

Option (B1) is not very useful: streams have no way to indicate an error, so data being pushed into a non-ready stream from an always-valid one will get discarded, and an always-ready stream will pull nonsense data from a non-valid stream.

Option (B2) is not very useful either: since there is no way to treat the four kinds of streams generically, even basic interconnect (e.g. a FIFO queue) will in effect have 16 possible instantiations, which is too high of a burden to implement and test.

Option (B3) would, at first glance, require the use of a complex diamond inheritance pattern (below) and adaptation functions converting one type of interface into another. Unfortunately, even that cannot be made to work, since the subtyping relationship does not capture directionality. A payload+ready+valid output stream can be connected to a payload+valid (always ready) input stream, but not vice versa; similarly, a payload+ready output stream (always valid) can be connected to a payload+ready+valid input stream, but not vice versa.

a diagram showing node 'payload+ready+valid' subtyping node 'payload+ready', node 'payload+valid', and node 'payload'; and both node 'payload+ready' and node 'payload+valid' subtyping node 'payload'

Thus, option (B4) is the only feasible one: it does not require interface adaptation and avoids complex inheritance hierarchies in favor of a one-class solution while at the same time capturing the complex and directional subtyping relationship through the use of amaranth.lib.wiring.connect(). Also, since connect() can connect multiple streams, it is possible to broadcast a stream (connect a single transmitter to multiple receivers) with no interconnect, provided that none of the receivers require backpressure.

C: Payload shape

There are three options for the payload member that are naturally possible with lib.wiring:

  1. Unrestricted payload member: a shape (port) or a signature (interface) are all valid, with no restrictions on the interface.
  2. payload member restricted to a shape (port) or a signature (interface) with only Out members.
  3. payload member restricted to a shape (port) only.
    • This is the option used in this proposal.

Option (C1) is not viable as it allows bidirectional communication to happen through the payload member, in contradiction to the goals of this proposal. Among other reasons, it makes streams no longer possible to pass through an async FIFO for clock domain crossing, which drastically reduces their usefulness.

Option (C2) does have the advantage of splitting the payload into individual signals, which are more visible in waveform diagrams and on module boundaries in Verilog. However, it has a serious drawback, which is that amaranth.lib.wiring.connect() will not connect a single member to multiple members. This means that streams can no longer be directly connected to the three signals made available by the existing FIFOs in amaranth.lib.fifo, requiring adaptation.

Option (C3) affords the same flexibility in the payload as option (2), without requiring stream-specific FIFOs; instead, an existing FIFO with its [rw]_ack, [rw]_rdy, [rw]_data signals can be connected to a stream endpoint provided that the same signals are put into an amaranth.lib.wiring.PureInterface, as long as the [rw]_data signal has the right width.

D: Omitted features

This proposal intentionally omits the following features:

  1. packetization (often implemented using first and/or last control signals)
  2. multiple lanes (often implemented using data[n] data signal coupled with stb[n] control signal)
  3. sub-streams (often implemented using id and dest sideband signals)
  4. unstructured metadata (often implemented using user sideband signal)

Based on the prior art examined and preliminary design work, the author of this proposal believes that all of these features may be implemented in a backward-compatible manner, by embedding all of the associated information in the payload port member and enabling extraction of the features and their configuration from the signature of the stream. This has the advantage that not all interconnect needs to be aware of such features, and interconnect that has little ability to be enhanced by them (e.g. an async FIFO) will be compatible with them without any changes.

There is no payload_shape accessor on amaranth.lib.stream.Signature to allow flexibility for future expansion.

Prior art

The two main influences on this proposal are AMBA AXI4-Stream protocol and LiteX stream functionality.

AMBA AXI-Stream

The AMBA AXI-Stream protocol is specified in the openly available ARM IHI 0051B document and is similar in some respects to this proposal. The protocol described in this proposal is not compliant with the AMBA Specification nor is it intended to be compliant with the AMBA Specification. The AMBA specification is merely referenced here as a point of discussion.

The AMBA AXI-Stream protocol is both more specialized and more constrained than this proposal. To compare them:

  1. AXI-Stream signal TDATA must be an integer number of bytes (a multiple of 8 wide) and is recommended to be a power of 2 and cannot be zero-width. This proposal makes no such restrictions.
  2. AXI-Stream allows, though does not recommend, the omission of TREADY and TVALID signals. This proposal mandates their inclusion but allows tie-off to constant 1.
  3. The rules for asserting TREADY and TVALID in AXI-Stream are the same as the rules for asserting ready and valid in this proposal, except for the deassertion of valid during reset.
  4. AXI-Stream separates the optional ancillary signals TSTRB, TKEEP, TLAST, TID, TDEST, TUSER from the primary TDATA signal. This proposal includes all of these signals under the umbrella payload port. Note that the AXI-Stream handshake covers both TDATA and all of the ancillary signals that are present (see figures 2-1, 2-2, 2.3); as such, it is similar to this proposal in that their treatment is similarly uniform.
  5. AXI-Stream includes complex rules for merging, packing, upsizing, downsizing, interleaving, and ordering, as well as position bytes and null bytes, which are not present in this proposal and are not in its scope.
  6. AXI-Stream mandates that transfers happen synchronously to the rising edge of ACLK, and specifies ARESETn to be an active low reset (synchronous or asynchronous). This proposal differs in that it allows any clock and reset expressible as an Amaranth clock domain. It is similar in that it mandates valid to be driven low during reset, but has a carve-out for tying valid to 1.
  7. AXI5-Stream includes a TWAKEUP signal for power management. This signal is associated with a stream but is not subject to handshaking; it is not directly a part of the stream, even if it influences the behavior of the stream and can cause a deadlock.

Although the protocol in this proposal and the AXI-Stream protocols are not interoperable, it is possible and straightforward to define components that are functionally compliant (without exceptions) with both the protocol in this proposal, making use of a subset of it, and the AMBA AXI4-Stream or AXI5-Stream protocols. Such components will require an adapter to match the AXI-Stream protocols, but the adapter will not require any logic gates.

The AXI4-Stream protocol is pervasively used in the industry and well regarded, and the ability to define components functionally compatibile with it is highly desirable. At the same time, some of the technical features of the AXI-Stream protocols (most importantly the restrictions on the TDATA signal, which prevent the use of arbitrary data/payload shapes), as well as the license under which it is distributed, make it unsuitable for use as-is in the Amaranth ecosystem.

Avalon-ST

The Avalon-ST protocol is specified in the openly available Intel 683091(2022.09.26) document (section 5) and is similar in some respects to this proposal. The Avalon-ST specification is merely referenced here as a point of discussion.

The Avalon-ST protocol is similar to this proposal, but includes some additional features. Note that "practically" below means "formally the wording may be different but it is not expected that this will ever cause any incompatibility in practical use". To compare them:

  1. Avalon-ST signal data can carry 1 to 8192 bits, not restricted to a power of 2 or a multiple of 8, and can be omitted. Avalon-ST includes a provision for bytes, but the byte size can be any number from 1 to 512 bits. This is practically identical to this proposal.
  2. Avalon-ST does not require inclusion of any of the signals, even ready and valid. This proposal mandates their inclusion but allows tie-off to constant 1.
  3. The rules for asserting ready and valid in Avalon-ST when the components are configured with readyLatency = readyAllowance = 0 are practically the same as rules for asserting ready and valid in this proposal. Some of the behavior in Avalon-ST is implicitly specified; the valid signal is required to be registered at the source, which defines its behavior during reset (that matches this proposal). However, the readyLatency > 0 or readyAllowance > 0 configuration has no equivalent to this proposal (or the other stream interfaces being compared).
  4. Avalon-ST separates the optional ancillary signals channel, error, empty, startofpacket, endofpacket from the primary data signal. This proposal includes all of these signals under the umbrella payload port. Note that the Avalon-ST handshake covers both data and all of the ancillary signals that are present per the description of the valid signal in Table 17; as such, it is similar to this proposal in that their treatment is similarly uniform.
  5. Avalon-ST optionally includes fairly simple routing and packetization interfaces, which are not present in this proposal and are not in its scope.
  6. Avalon-ST mandates that transfers happen synchronously to the rising edge of the associated clock sink, and that the logic is reset by the associated reset sink. This proposal differs in that it allows any clock and reset expressible as an Amaranth clock domain. Avalon reset sinks are as expressive as Amaranth clock domain resets. In both this proposal and Avalon-ST, valid will be either tied off to 1 (in which case it's omitted from Avalon-ST) or driven low during reset.
  7. Avalon-ST includes an unusual error signal that allows the source signal an error to the sink. Importantly, it is not useful for signaling protocol errors (e.g. overflow due to an error in ready signal handling by the source), since the sink either drives only a ready signal or nothing.

The protocol in this proposal and the Avalon-ST protocol are interoperable if the Avalon-ST interface is configured with parameters readyLatency = readyAllowance = 0 and includes data, ready, and valid signals only (i.e. beats, packets, or channels are not used). In addition, data must be renamed to payload and a posedge clock domain must be used in Amaranth.

The Avalon-ST protocol is widely used in the industry, especially in the Altera (Intel (Altera)) ecosystem, and the ability to define components interoperable with it is highly desirable. While it could be used as-is in the Amaranth ecosystem, it is valuable to reconsider whether the inclusion of some of the rarely used features is worth the support and compatibility burden, since all generic interconnect would have to be aware of them. Splitting of data into symbols or bytes seems particularly unnecessary.

The readyLatency and readyAllowance parameters allow a more efficient use of FPGA resources (registers) and while adding them at this stage seems premature, it is a useful feature and should be considered for future work. Since connecting interfaces with mismatched readyLatency and readyAllowance is disastrous (results in silent data loss), this would likely require support for matching interface parameters to amaranth.lib.wiring.connect(), which is not currently available. Such support must be able to take into account that interfaces are compatible if a parameter of the source is equal or less than of the same parameter on the sink, which is a complex relation that would require significant design work.

LiteX streams

The LiteX stream protocol does not have a specification. It is described in a very short wiki page as "LiteX's streams are a simplified compromise between AXI-4/Avalon-ST" and is similar in some respects to this proposal. There is also an implementation that may be used to attempt to understand the protocol.

The LiteX stream protocol is very similar to this proposal, but includes some additional features. To compare them:

  1. LiteX stream payload signal can carry unrestricted structured data, similarly to the payload port in this proposal. However, since it is a full Migen Record, it carries the same flaw as the option (C1), and it is easy to misuse it.
  2. LiteX streams always include all of the defined signals: valid, ready, first, last, payload, and param, handling always-valid/always-ready streams the same way as option (B1), and always including options (D1) and (D4). This proposal includes only valid, ready, and payload.
  3. The rules for assertion of ready and valid are not documented but (given the references to AXI-Stream and Avalon-ST) may be assumed to be entirely or mostly compatible with these two protocols, and consequently this proposal.
  4. LiteX streams separates ancillary signals first, last, and param from the primary payload signal. This proposal includes all of these signals under the umbrella payload signal, if they are implemented. The flow control rules for first and last are the same as for the payload signal in LiteX, but the flow control rules for param are different: param must be constant for the entire duration of a packet. (The flow control rules for param reference the flow control users for TUSER in AXI-Stream, but this is actually incorrect: unlike param in LiteX, TUSER in AXI-Stream specifies ancillary data per-byte or per-transfer, not per-packet).
  5. LiteX would appear, from the examination of the signals, to include a mandatory packetization scheme, but this is not the case. Rather, any sources, sinks, or interconnect that do not support packetization ignore first and last, and those of them which do support packetization may support exclusively first or exclusively last. There is no way to indicate any of these choices mechanically.
  6. LiteX streams and this proposal both reference transfers to a clock domain. However, Migen only supports posedge clocks and synchronous active-high reset.

The protocol in this proposal and the LiteX stream protocol cannot be readily described as interoperable or not due to the lack of formal description and general scarcity of documentation of the LiteX stream protocol. However, so long as packetization is not involved, and the LiteX param record is empty, they are probably interoperable.

The LiteX stream protocol is used exclusively in the LiteX ecosystem. Due to the rich availability of ready-made components in this ecosystem, the ability to define components interoperable with it is desirable. However, this is challenged by the difficulty of determining the feature set supported by a particular LiteX component. The flow control rules for the LiteX param signal are also unusual and may require an adapter with logic gates to reliably ensure compliance of an arbitrary Amaranth stream with the LiteX rules.

Due to the fact that LiteX endpoints and interconnect often arbitrarily decide to implement or leave unimplemented any subset of the first and last signals without necessarily documenting this choice, it is easy to run into data loss, deadlocks, and other confusing behavior with LiteX streams, especially as a newcomer to the ecosystem. The author of this RFC has had LiteX streams described to her as "frustrating", "a real source of difficulty", or in one case "traumatizing". This was the driving force behind the decision to not include either first or last signals in this proposal. It was also one of the chief motivations behind amaranth.lib.wiring refusing to connect interfaces except in a highly restrictive manner where signals may not be arbitrarily excluded at the point of connection.

Unresolved questions

None.

Future possibilities

  • A new module with FIFO queues can be added (e.g. amaranth.lib.queue) with largely the same functionality that are built as components and are stream-only.
    • This has the advantage of being less constraining. Since all of the functionality of the existing amaranth.lib.fifo module as of Amaranth 0.5 will be provided in it, a clean migration path is available.
  • Streams can be extended with a mechanism to specify complex payload shape that can be introspected by interconnect.
  • Interconnect components that operate on and process such complex payloads can be added via the RFC process, such as:
    • Lane converters (up-converter, down-converter).
      • RFC 56 almost but not quite enables existing FIFO queues to serve as such.
    • Packetizers/de-packetizers.
    • Packet based queues that allow accepting or discarding a complete packet, or discarding incomplete or corrupted packets.
    • Stream routers based on destination ID.
    • Stream aligners that ensure a packet always starts on the 0th lane, or each Nth lane (e.g. each 4th 8-bit lane, for 32-bit alignment).
  • AXI3 or AXI4 interfaces may be added to Amaranth SoC, as these protocols are designed as a bundle of streams (address channels, data channels, and completion channel).
  • The readyLatency and readyAllowance configuration parameters of Avalon-ST may be further investigated and potentially added to streams if they turn out to be broadly useful.
  • The amaranth.lib.io library may be extended to add a pair of always-ready, always-valid stream interfaces to FFBuffer and DDRBuffer (one for input, one for output). In this way, the same paradigm, multi-lane bit streams, may be used to communicate at data rates anywhere from 1 kilobit/s to 1 terabit/s.

Stream combinators

This proposal references many desirable stream features (primarily multiple lanes and packetization) to a future RFC that will extend the existing design. In the interest of convincing the reader that such an RFC is feasible, a sketch of how such extension may look like follows.

The stream protocol is extended with "combinators", a composable mechanism of defining the shape and behavior of the payload members. The payload argument of the amaranth.lib.stream.Signature(...) constructor may receive a combinator, which is a shape-castable object (usually a data.Struct subclass):

  1. payload=Lanes(4, lane_shape)
    • causes the payload member to contain a lane: ArrayLayout(lane_shape, 4) field
    • an up/down-converter interconnect may, by introspection, determine whether the input and output streams are compatible and what the ratio of lanes is
  2. payload=Lanes(4, lane_shape, en=True)
    • causes the payload member to contain a lane: ArrayLayout(lane_shape, 4) field and a en: 4 field
    • by introspection, the endpoints and the interconnect is aware that some of the lanes may not contain meaningful data and discard such data during up/down-conversion or upon receipt
  3. payload=Packet(data_layout, first=True, last=True)
    • causes the payload member to contain a data: data_layout field, as well as first: 1 and last: 1 fields
    • by introspection, the components are aware that each individual transfer may begin and/or end the packet, with packet data being uninterpreted
  4. payload=Packet(Lanes(4, lane_shape), first=True, last=True)
    • causes the payload member to contain a data: StructLayout({"lane": ArrayLayout(lane_shape, 4)}) field, as well as first: 1 and last: 1 fields
    • by introspection, the components are aware that each individual transfer may begin and/or end the packet, and that each packet consists of four individual symbols
  5. payload=Lanes(4, Packet(data_shape, first=True, last=True))
    • causes the payload member to contain a lane: ArrayLayout(StructLayout({"data": data_shape, "first": 1, "last": 1}), 4) field
    • by introspection, the components are aware that each individual transfer consists of up to four individual packets, and that packets may begin or end at any symbol

Please note that the degree of configurability in the examples is illustrative of the potential of the proposed functionality and do not necessarily reflect best practices to be established. That said, example (4) follows a real-world example where a 1024-bit wide bus used in a high-throughput PCIe interconnect implementation requires support for multiple packets per transfer to meet its efficiency target.

Stream combinators can be defined in code downstream to Amaranth, and streams employing user-defined combinators remain usable with some standard interconnect; e.g. an async FIFO does not introspect the payload at all, and an up/down-converter only "unwraps" the outermost combinator, expecting to find the amaranth.lib.stream.Lanes combinator there, and treating the lane_shape shaped element as opaque.

The fact that amaranth.lib.wiring.connect() will connect any two port members with a matching name and width and compatible flows without regard to the shape of the member is concerning in light of the importance of the shape of the payload member of a stream. There are multiple options in handling this issue, including:

  1. Reconsidering the behavior of amaranth.lib.wiring.connect() so that the shape of a port member is taken into account, either to emit a warning or to raise an error.
  2. Introducing additional behavior to amaranth.lib.wiring.connect() so that a function attached to a port member is called to check its compatibility with another port member.
  3. Relying on the fact that adding a stream combinator essentially always changes the width of the payload member and therefore the existing width check is sufficient to catch most errors.

The MemoryData class

Summary

A new class, amaranth.hdl.MemoryData, is added to represent the data and identity of a memory. It is used to reference the memory in simulation.

Motivation

It is commonly useful to access a memory in a simulation testbench without having to create a special port for it. This requires storing some kind of a reference to the memory on the elaboratables.

Currently, the object used for this is of a private MemoryIdentity class. It is implicitly created by lib.memory.Memory constructor, and passed to the private _MemorySim{Read|Write} objects when __getitem__ is called. This has a few problems:

  • the Memory needs to be instantiated in the constructor of the containing elaboratable; combined with its mutability and the occasional need to defer memory port creation to elaborate, this results in elaboratables that break when elaborated more than once
  • amaranth.sim currently requires a gross hack to recognize Memory objects in traces
  • occasionally, it is useful to have Signals that are not included in the design proper, but are used to communicate between simulator processes; it could be likewise useful with memories, but it cannot work with the current code (since the MemoryIdentity that the simulator gets doesn't have enough information to actually create backing storage for the memory)
  • MemoryIdentity nor MemoryInstance don't contain information about the element shape, which would require further wrappers on lib.Memory to perform shape conversion in post-RFC 36 world

The proposed MemoryData class:

  • replaces MemoryIdentity and serves as the reference point for the simulator
  • encapsulates the memory's shape, depth, and initial value (so the simulator can use it to create backing storage)
  • in the common scenario, is created by the user in elaboratable constructor, stored as an attribute on the elaboratable, then passed to Memory constructor in elaborate

Guide-level explanation

If the memory is to be accessible in simulation, the code to create a memory changes from:

m.submodules.memory = memory = Memory(shape=..., depth=..., init=...)
port = memory.read_port(...)

to:

# in __init__
self.mem_data = MemoryData(shape=..., depth=..., init=...)
# in elaborate
m.submodules.memory = memory = Memory(self.mem_data)
port = memory.read_port(...)

The my_component.mem_data object can then be used in simulation to read and write memory:

addr = 0x1234
row = sim.get(mem_data[addr])
row += 1
sim.set(mem_data[addr], row)

The old way of creating memories is still supported, though somewhat less flexible.

Reference-level explanation

Two new classes are added:

  • amaranth.hdl.MemoryData(*, shape: ShapeLike, depth: int, init: Iterable[int | Any], name=None): represents a memory's data storage. name, if not specified, defaults to the variable name used to store the MemoryData, like it does for Signal.
    • __getitem__(self, addr: int) -> MemoryData._Row | ValueCastable: creates a MemoryData._Row object; if self.shape is a ShapeCastable, the MemoryData._Row object constructed is immediately wrapped via ShapeCastable.__call__
  • amaranth.hdl.MemoryData._Row (subclass of Value): represents a single row of MemoryData, has no public constructor nor operations (other than ones derived from Value), can only be used in simulator processes and testbenches

The MemoryData class allows access to its constructor arguments via read-only properties.

The lib.memory.Memory.Init class is moved to amaranth.hdl.MemoryData.Init. It is used for the init property of MemoryData.

The Memory constructor is changed to:

  • amaranth.lib.memory.Memory(data: MemoryData = None, *, shape=None, depth=None, init=None, name=None)

    • either data, or all three of shape, depth, init need to be provided, but not both
    • if data is provided, it is used directly, and stored
    • if shape, depth, init (and possibly name) are provided, they are used to create a MemoryData, which is then stored

The MemoryData object is accessible via a new read-only data property on Memory. The existing shape, depth, init properties become aliases for data.shape, data.depth, data.init.

MemoryInstance constructor is likewise changed to:

  • amaranth.hdl.MemoryInstance(data: MemoryData, *, attrs={})

The sim.memory_read and sim.memory_write methods proposed by RFC 36 are removed. Instead, the new Memory._Row simulation-only value is introduced, which can be passed to get/set/changed like any other value. Masked writes can be implemented by set with a slice of MemoryData._Row, just like for signals.

MemoryData and MemoryData._Row instances (possibly wrapped in ShapeCastable for the latter) can be added to the traces argument when writing a VCD file with the simulator.

Using MemoryData._Row within an elaboratable results in an immediate error, even if the design is only to be used in simulation. The only place where MemoryData._Row is valid is within an argument to sim.get/sim.set/sim.changed and similar functions.

sim.edge remains restricted to plain Signal and single-bit slices thereof. MemoryData._Row is not supported.

Drawbacks

None.

Rationale and alternatives

MemoryData having shape, depth, and init is necessary to allow the simulator to create the underlying storage if the memory is not included in the design hierarchy, but is used to communicate between simulator processes.

Prior art

MemoryData is conceptually equivalent to a 2D Signal, for simulation purposes. It thus follows similar rules.

Unresolved questions

None.

Future possibilities

A MemoryData.Slice class could be added, allowing a whole range of memory addresses to be get/set at once, monitored for changes with changes, or added to traces.

Support for __getitem__(Value) could be added (currently it would be blocked on CXXRTL capabilities).

Remove amaranth.lib.coding

Summary

Remove amaranth.lib.coding and all classes in it.

Motivation

This module has been essentially inherited from Migen and doesn't meet the bar for inclusion in Amaranth standard library. Most of the functionality included is so simple that it's essentially easier to just inline an implementation. The rest of it would be better served by a function than a module.

Guide-level explanation

The module amaranth.lib.coding and all classes in it are removed. To continue using it, copy the contents of the module into your own project.

Reference-level explanation

All classes within amaranth.lib.coding are deprecated in Amaranth 0.5 and removed (along with the module) in Amaranth 0.6. The Gray encoder is moved to lib.fifo as a private implementation detail.

Drawbacks

  • Churn.

Rationale and alternatives

  • This module is out of place in the standard library.
  • It has not seen much use and is trivially implemented outside of it.
  • Downstream consumers tend to inline the logic anyway.

Unresolved questions

None.

Future possibilities

The functionality could be brought back at a future point with a more suitable lightweight interface (as functions instead of modules), when the core language is flexible enough to support that.

Special formatting for structures and enums

Summary

Extend Format machinery to support structured description of aggregate and enumerated data types.

Motivation

When a lib.data.Layout-typed signal is included in the design, it is often useful to treat it as multiple signals for debug purposes:

  • in pysim VCD output, it is useful to have each field as its own trace
  • in RTLIL output, it is useful to include a wire for each field (in particular, for CXXRTL simulation purposes)

Likewise, lib.enum.Enum-typed signals benefit from being marked as enum-typed in RTLIL output.

Currently, both of the above usecases are covered by the private ShapeCastable._value_repr interface. This interface has been added in a rush for the Amaranth 0.4 release as a stopgap measure, to ensure switching from hdl.rec to lib.data doesn't cause a functionality regression (amaranth-lang/amaranth#790). Such forbidden coupling between lib and hdl via private interfaces is frowned upon, and the time has come to atone for our sins and create a public interface that can be used for all sorts of aggregate and enumerated data types.

Since both needs relate to presentation of shape-castables, we propose piggybacking the functionality on top of ShapeCastable.format machinery. At the same time, we propose implementing formatting for lib.data and lib.enum.

Guide-level explanation

Shape-castables implementing enumerated types can return a Format.Enum instance instead of a Format from their format method:

class MyEnum(ShapeCastable):
    ...

    def format(self, obj, spec):
        assert spec == ""
        return Format.Enum(Value.cast(obj), {
            0: "ABC",
            1: "DEF",
            2: "GHI",
        })

For formatting purposes, this is equivalent to:

class MyEnum(ShapeCastable):
    ...

    def format(self, obj, spec):
        assert spec == ""
        return Format(
            "{:s}",
            Mux(Value.cast(obj) == 0, int.from_bytes("ABC".encode(), "little"),
            Mux(Value.cast(obj) == 1, int.from_bytes("DEF".encode(), "little"),
            Mux(Value.cast(obj) == 2, int.from_bytes("GHI".encode(), "little"),
            int.from_bytes("[unknown]".encode(), "little")
            )))
        )

with the added benefit that any MyEnum-shaped signals will be automatically marked as enums in RTLIL output.

Likewise, shape-castables implementing aggregate types can return a Format.Struct instance instead of a Format:

class MyStruct(ShapeCastable):
    ...

    def format(self, obj, spec):
        assert spec == ""
        return Format.Struct({
            # Assume obj.a, obj.b, obj.c are accessors that return the struct fields as ValueLike.
            "a": Format("{}", obj.a),
            "b": Format("{}", obj.b),
            "c": Format("{}", obj.c),
        })

For formatting purposes, this is equivalent to:

class MyStruct(ShapeCastable):
    ...

    def format(self, obj, spec):
        assert spec == ""
        return Format("{{a: {}, b: {}, c: {}}}", obj.a, obj.b, obj.c)

with the added benefit that any MyStruct-shaped signal will automatically have per-field traces included in VCD output and per-field wires included in RTLIL output.

Implementations of format are added as appropriate to lib.enum and lib.data, making use of the above features.

Reference-level explanation

Three new classes are added:

  • amaranth.hdl.Format.Enum(value: Value, /, variants: EnumType | dict[int, str])
  • amaranth.hdl.Format.Struct(value: Value, /, fields: dict[str, Format])
  • amaranth.hdl.Format.Array(value: Value, /, fields: list[Format])

Instances of these classes can be used wherever a Format can be used:

  • as an argument to Print, Assert, ...
  • included within another Format via substitution
  • returned from ShapeCastable.format
  • as a field format within Format.Struct or Format.Array

When used for formatting:

  • Format.Enum will display as whichever string corresponds to current value of value, or as "[unknown]" otherwise.
  • Format.Struct will display as "{a: <formatted field a>, b: <formatted field b>}".
  • Format.Array will display as "[<formatted field 0>, <formatted field 1>]"

Whenever a signal is created with a shape-castable as its shape, its format method is called with spec="" and the result is stashed away.

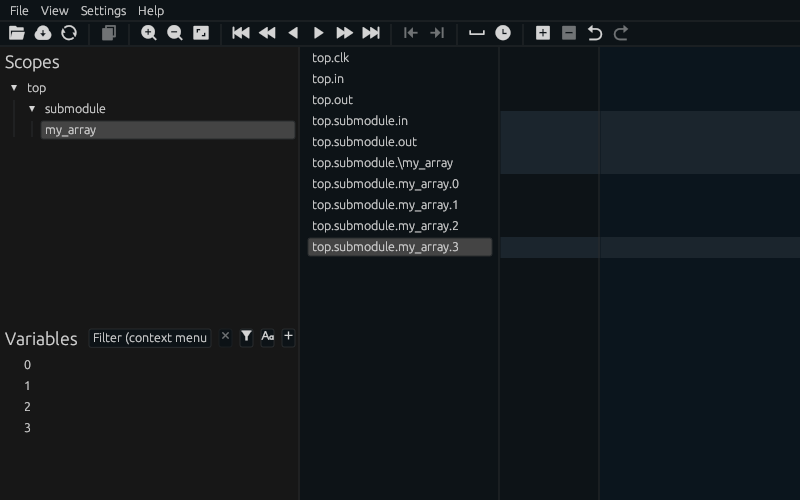

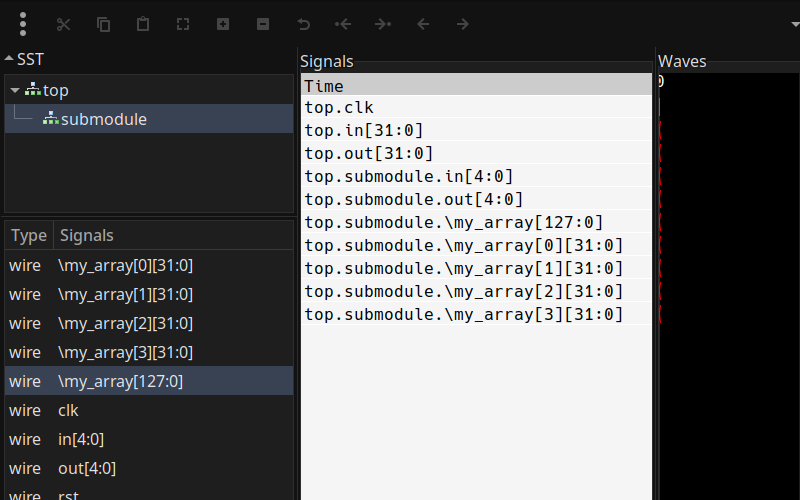

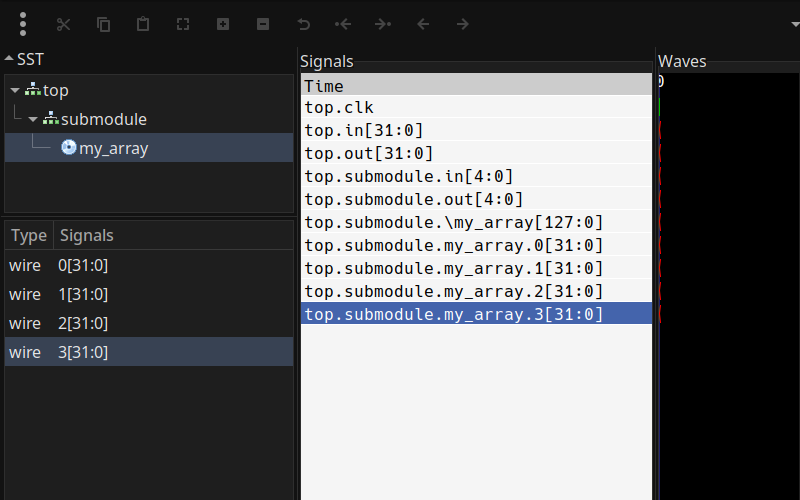

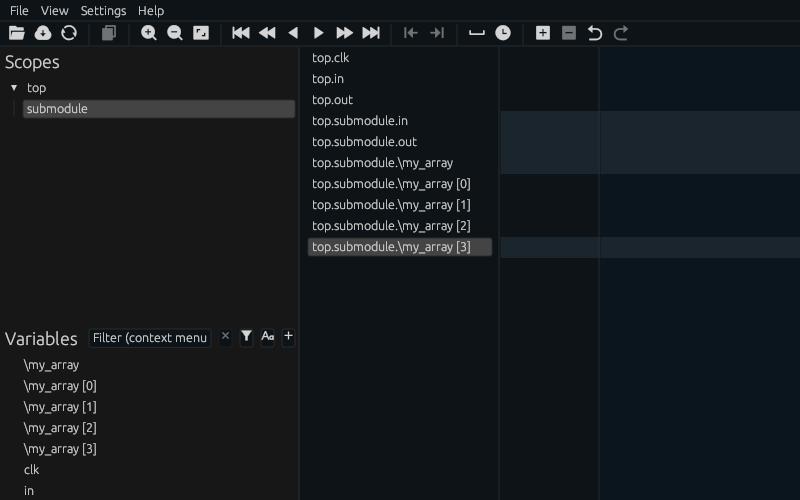

VCD output is done as follows:

  1. When a signal or field's format is just Format("{}", value): value is emitted as a bitvector to VCD.
  2. Otherwise, when a signal or field's custom format is not Format.Struct nor Format.Array: the format is evaluated every time the value changes, and the result is emitted as a string to VCD
  3. When the custom format is Format.Struct or Format.Array:
    • the value as a whole is emitted as a bitvector
    • each field is emitted recursively (as a separate trace, perhaps with subtraces)

RTLIL output is done as follows:

  1. When a signal or field's format is a plain Format and contains exactly one format specifier: a wire is created and assigned with the specifier's value.
  2. When a signal or field's format is a plain Format that doesn't conform to the above rule: no wire is created.
  3. When a signal or field's format is a Format.Enum: a wire is created and assigned with the format's value. RTLIL attributes are emitted on it, describing the enumeration values.
  4. When a signal or field's format is a Format.Struct or Format.Array: a wire is created and assigned with the format's value, representing the struct as a whole. For every field of the aggregate, the rules are applied recursively.

Drawbacks

More language complexity.

A shape-castable using Format.Struct to mark itself as aggregate is forced to use the fixed Format.Struct display when formatted.

Rationale and alternatives

This design ties together concerns of formatting with structural description. An alternative would be to have separate hooks for those, like the current _value_repr interface.

Prior art

None.

Unresolved questions

None.

Future possibilities

The current decoder interface on Signal could be deprecated and retired.

Simulation time

Summary

Add a type for representing time durations (including clock periods) and simulator methods to query the elapsed time.

Motivation

In RFC #36, there were a plan to introduce a .time() method to query the current simulation time, but it got deferred due to the lack of a suitable return type.

Internally simulation time is an integer number of femtoseconds, but exposing that directly is not ergonomic and making it a float of seconds sacrifices precision the longer a simulation runs.

Also, to quote @whitequark: Time is not a number.

Guide- and reference-level explanation

A new type Period is introduced. It is exported from amaranth.hdl and also re-exported from amaranth.sim. It is immutable and has a constructor accepting at most one named argument, giving the following valid forms of construction:

  • Period()
    • Constructs a zero period.
  • Period(s: numbers.Real)
  • Period(ms: numbers.Real)
  • Period(us: numbers.Real)
  • Period(ns: numbers.Real)
  • Period(ps: numbers.Real)
  • Period(fs: numbers.Real)
    • The argument will be scaled according to its SI prefix and used to calculate the closest integer femtosecond representation.
  • Period(Hz: numbers.Real)
  • Period(kHz: numbers.Real)
  • Period(MHz: numbers.Real)
  • Period(GHz: numbers.Real)
    • The argument will be scaled according to its SI prefix and its reciprocal used to calculate the closest integer femtosecond representation.
    • A value of zero will raise ZeroDivisionError.
    • A negative value will raise ValueError.

To convert it back to a number, the following properties are available:

  • .seconds -> float
  • .milliseconds -> float
  • .microseconds -> float
  • .nanoseconds -> float
  • .picoseconds -> float
  • .femtoseconds -> int

To calculate the reciprocal frequency, the following properties are available:

  • .hertz -> float
  • .kilohertz -> float
  • .megahertz -> float
  • .gigahertz -> float
    • Accessing these properties when the period is zero will raise ZeroDivisionError.
    • Accessing these properties when the period is negative will raise ValueError.

The following operators are defined:

  • .__lt__(other: Period) -> bool
  • .__le__(other: Period) -> bool
  • .__eq__(other: Period) -> bool
  • .__ne__(other: Period) -> bool
  • .__gt__(other: Period) -> bool
  • .__ge__(other: Period) -> bool
  • .__hash__() -> int
  • .__bool__() -> bool
  • .__neg__() -> Period
  • .__pos__() -> Period
  • .__abs__() -> Period
  • .__add__(other: Period) -> Period
  • .__sub__(other: Period) -> Period
  • .__mul__(other: numbers.Real) -> Period
  • .__rmul__(other: numbers.Real) -> Period
  • .__truediv__(other: numbers.Real) -> Period
  • .__truediv__(other: Period) -> float
  • .__floordiv__(other: Period) -> int
  • .__mod__(other: Period) -> Period
    • Operators on Periods are performed on the underlying femtosecond values.
    • Operators involving numbers.Real operands have the result rounded back to the closest integer femtosecond representation.
    • Operators given unsupported operand combinations will return NotImplemented.
  • .__str__() -> str
    • Equivalent to .__format__("")
  • .__format__(format_spec: str) -> str
    • The format specifier format is [width][.precision][ ][unit].
    • An invalid format specifier raises ValueError.
    • If width is specified, the string is left-padded with space to at least the requested width.
    • If precision is specified, the requested number of decimal digits will be emitted. Otherwise, duration units will emit as many digits required for an exact result, while frequency units will defer to default float formatting.
    • If a space is present in the format specifier, the formatted string will have a space between the number and the unit.
    • unit can be specified as any of the argument names accepted by the constructor. If a unit is not specified, the largest duration unit that has a nonzero integer part is used. Formatting frequency units have the same restrictions and exception behavior as accessing frequency properties.

SimulatorContext have an .elapsed_time() -> Period method added that returns the elapsed time since start of simulation.

These methods that has a period argument currently taking seconds as a float are updated to take a Period:

  • Simulator.add_clock()
  • SimulatorContext.delay()

These methods that has a frequency argument currently taking Hz as a float are updated to take a Period:

  • ResourceManager.add_clock_constraint()
  • Clock.__init__()

The ability to pass seconds or Hz directly as a float is deprecated and removed in a future Amaranth version.

The Clock.period property is updated to return a Period and the Clock.frequency property is deprecated.

Consequently, Platform.default_clk_frequency() is also deprecated and replaced with a new method Platform.default_clk_period() -> Period.

Drawbacks

  • Deprecating being able to pass seconds or Hz directly as a float creates churn.

Rationale and alternatives

  • .add_clock() is usually passed the reciprocal of a frequency, so being able to construct a Period from a frequency instead of a duration is useful.

    • We could add a separate Frequency type, but in practice it would likely almost exclusively be used to calculate the reciprocal Period.

  • Accepting a numbers.Real when we're converting from a number lets us pass in any standard suitable number type.

  • The supported set of operators are the ones that have meaningful and useful semantics:

    • Comparing, adding and subtracting time periods makes sense.
    • Multiplying a time period with or dividing it by a real number scales the time period.
    • Dividing time periods gives the ratio between them.
    • Modulo of time periods is the remainder and thus still a time period. Potentially useful to calculate the phase offset between a timestamp and a clock period.
    • Reflected operators that only accept Period operands are redundant and omitted.

  • .elapsed_time() is only available from within a testbench/process, where it is well defined.

  • Instead of named constructor arguments, we could use a classmethod for each SI prefix. This was proposed in an earlier revision of this RFC.

  • Instead of returning float, we could return fractions.Fraction to ensure no precision loss when the number of femtoseconds is larger than the float significand. This was proposed in an earlier revision of this RFC.

    • Rounding to integer femtoseconds is already lossy and a further precision loss from converting to a float is negligible in most real world use cases. For any applications requiring an exact conversion of a Period, the .femtoseconds property is always exact.

Prior art

None.

Unresolved questions

None.

Future possibilities

None.

Add a lib.io.PortLike object usable in simulation

Summary

A new library I/O port object lib.io.SimulationPort is introduced that can be used to simulate lib.io.Buffer and lib.io.FFBuffer components.

Motivation

End-to-end verification of I/O components requires simulating lib.io.Buffer, lib.io.FFBuffer, or lib.io.DDRBuffer objects, which is currently not possible because all defined library I/O ports (lib.io.SingleEndedPort, lib.io.DifferentialPort) require the use of unsimulatable core I/O values. Simulating these buffers can be done by adding a new library I/O port object with separate i, o, oe parts represented by normal Signals, and modifying the lowering of lib.io buffer components to drive the individual parts. Simulation models could then be written using code similar to (for SPI):

await ctx.set(cipo_port.o, cipo_value)
_, copi_value = await ctx.posedge(sck_port.i).sample(copi_port.i)

This functionality is one of the last pieces required to build a library of reusable I/O interfaces, and the need for it became apparent while writing reusable I/O blocks for the Glasgow project.

Guide-level explanation

Let's consider an I/O component, such as below, which takes several ports as its constructor argument:

class SPIController(wiring.Component):
    o_data: stream.Signature(8)
    i_data: stream.Signature(8)

    def __init__(self, sck_port, copi_port, cipo_port):
        self._sck_port  = sck_port
        self._copi_port = copi_port
        self._cipo_port = cipo_port

        super().__init__()

    def elaborate(self, platform):
        m = Module()

        m.submodules.sck  = sck_buffer  = io.FFBuffer("o", self._sck_port)
        m.submodules.copi = copi_buffer = io.FFBuffer("o", self._copi_port)
        m.submodules.cipo = cipo_buffer = io.FFBuffer("i", self._cipo_port)

        # ... wire it up to self.[io]_data...

        return m

To simulate such a component, instantiate lib.io.SimulationPort objects for each of the ports, and use their .o, .oe, and .i signals to verify the functionality:

sck_port  = io.SimulationPort("o", 1)
copi_port = io.SimulationPort("o", 1)
cipo_port = io.SimulationPort("i", 1)

dut = SPIController(sck_port, copi_port, cipo_port)

async def testbench_peripheral(ctx):
    """Simulates behavior of an SPI peripheral. Simplified for clarity: ignores chip select."""
    for copi_fixture, cipo_fixture in zip([0,1,0,1,0,1,0,1], [1,0,1,0,1,0,1,0]):
        await ctx.negedge(sck_port.o)
        ctx.set(cipo_port.i, cipo_fixture)
        _, copi_driven, copi_value = await ctx.posedge(sck_port.o).sample(copi_port.oe, copi_port.o)
        assert copi_driven == 0b1 and copi_value == copi_fixture

async def testbench_controller(ctx):
    """Issues commands to the controller."""
    await stream_put(ctx, dut.o_data, 0x55)
    assert (await stream_get(ctx, dut.i_data)) == 0xAA

sim = Simulator(dut)
sim.add_clock(1e-6)
sim.add_testbench(testbench_peripheral)
sim.add_testbench(testbench_controller)
sim.run()

Note that the peripheral testbench not only checks that the right values are being output by the I/O component, but that the port is driven (not tristated) at the time when values are sampled.

Note also that e.g. copi_port.oe is a multi-bit signal, with the same width as the port itself. This is unlike the lib.io buffers, whose oe port member is always 1-bit wide. This means that for multi-wire ports that are always fully driven or fully undriven, it is necessary to compare them with 0b00..0 or 0b11..1, according to the width of the port.

Reference-level explanation

The amaranth.lib.io module is expanded with a new subclass of PortLike, SimulationPort(direction, width, *, invert=False):

  • i, o, oe are read-only properties each containing a new Signal(width);
  • invert is a property equal to the invert parameter normalized to a tuple of width elements;
  • direction is a property equal to the direction parameter normalized to Direction enum;
  • len(port) returns width;
  • port[...] returns a new SimulationPort whose i, o, oe properties are slices of port.i, port.o, port.oe respectively;
  • ~port returns a new SimulationPort whose i, o, oe properties are the same as for port and the invert property has each value inverted;
  • port + other, where other is a SimulationPort, returns a new SimulationPort whose i, o, oe properties are concatenations of the respective properties of port and other.

Since this is a third PortLike with a compatible __add__ implementation, and it is weird to have slicing but not concatenation, the __add__ method is added to the PortLike signature, with a deprecation warning in 0.5.1 and a hard requirement in 0.6.0.

The amaranth.lib.io.Buffer component is changed to accept SimulationPorts and performs the following connections (with the direction checks omitted for clarity):

m.d.comb += [
    buffer.i.eq(Cat(Mux(oe, o, i) for oe, o, i in zip(port.oe, port.o, port.i))),
    port.o.eq(buffer.o),
    port.oe.eq(buffer.oe.replicate(len(port))),
]

The amaranth.lib.io.FFBuffer component is changed to accept SimulationPorts and performs the following connections (with the direction checks omitted for clarity):

m.d[buffer.i_domain] += [
    buffer.i.eq(Cat(Mux(oe, o, i) for oe, o, i in zip(port.oe, port.o, port.i))),
]
m.d[buffer.o_domain] += [
    port.o.eq(buffer.o),
    port.oe.eq(buffer.oe.replicate(len(port))),
]

The amaranth.lib.io.DDRBuffer component is not changed.

None of the get_io_buffer functions in the vendor platforms are changed. Thus, SimulationPort is not usable with any vendor platform that implements get_io_buffer.

To improve the health of the Amaranth standard I/O library (which will make heavy use of simulation port objects), the changes are back-ported to the 0.5.x release branch.

Drawbacks

  • Bigger API surface.
  • Another concept to keep track of.

Rationale and alternatives

Alternatives:

  • The signature of the SimulationPort() constructor is designed to closely resemble that of SingleEndedPort() and DifferentialPort(). However, SimulationPort() is intended to be only constructed by the designer, and the latter two almost never are. Is it a good idea to make direction optional, in this case? Specifying the direction provides additional checks that are valuable for verification.
    • Alternative #0: SimulationPort(width, *, invert=False, direction=Direction.Bidir). This alternative is a near-exact match to the other port-like objects, with the exception of io replaced by width.
    • Alternative #1: SimulationPort(width, *, invert=False, direction). This alternative minimally changes the signature, but requires lengthy direction= at every call site. Currently in the RFC text.
    • Alternative #2: SimulationPort(width, direction, *, invert=False). This alternative is a slightly less minimal change, but does not match the ordering of arguments of signature of Buffer(direction, port).
    • Alternative #3: SimulationPort(direction, width, *, invert=False). This alternative differs significantly from SingleEndedPort() etc, but matches Buffer() most closely.
  • It would be possible to make SimulationPort an interface object. Although the opportunities for connecting it are limited (since the signals are only synchronized to each other and not to any clock domains in the design), one can foresee the addition of a component that implements end-to-end or multi-drop buses using simulation-compatible logic, for example, to simulate multiple Amaranth components accessing a common SPI or I2C bus. In this context connect would be valuable.
    • This functionality could be prototyped out-of-tree (by wrapping SimulationPort or simply setting its signature property) and added upstream later if it proves to be useful.
  • It would be possible to add o_init, i_init, oe_init to the signature for a minor usability improvement in cases where the port is never driven in simulation, but the benefit seems low and the signature becomes much more cluttered.
    • It is no longer possible since Amaranth 0.5 to directly set .init attribute of signals, so without these arguments the initial value will always be 0.

Rejected alternatives:

  • Multi-bit oe signal is a radical departure from the rest of Amaranth, where oe is always single-bit. However, note the proposed RFC #68, which suggests making oe optionally multi-bit for io.Buffer etc.
    • It would be possible to make oe a single-bit signal and to forbid slicing of SimulationPort objects. However, the PortLike interface does not currently allow this, and it would have to be changed, with generic code having to be aware of this new error.
    • It would also be possible to make oe a choice of multi-bit or single-bit signal during construction, similar to RFC #68.
    • Without multibit oe it is not possible to concatenate ports.

Prior art

We have previously had, and deprecated, the amaranth.lib.io.Pin object, which is essentially the same triple of i, o, oe. However, in terms of its intended use (notwithstanding how it was actually used), the Pin object was closest to the interface created by io.Buffer.Signature.create(). The newly introduced SimulationPort is intended to represent data on the other side of the buffer than Pin does.

Resolved questions

  • What should the signature of SimulationPort() be?
    • Alternative #3 (matching io.Buffer, etc) was decided.

Future possibilities

  • Add DDRBuffer support by using port.o.eq(Mux(ClockSignal(), self.o[1], self.o[0])).
    • It is not yet clear if this can be safely used, or should be used, in simulations.
  • Make SimulationPort an interface object.
  • Add a EndToEndBus (naming TBD) class connecting pairs of ports to each other and ensuring that no wire is driven twice.
  • Add a OpenDrainBus (naming TBD) class connecting a set of ports to each other and providing a "pull-up resistor" equivalent functionality.

Unify the naming of MemoryMap resources and windows

Summary

  • Use a MemoryMap.Name class to represent resource and window names.
  • Assign window names in MemoryMap.add_window() instead of MemoryMap.__init__().

Motivation

In a MemoryMap, resources (e.g. registers of a peripheral) and windows (nested memory maps) are added with similar methods: MemoryMap.add_resource() and .add_window().

However, their names are handled differently:

  • a resource name is a tuple of strings, assigned as a parameter to MemoryMap.add_resource().
  • a window name is a string, assigned at the creation of the window itself (as a parameter to MemoryMap.__init__()).

These differences add needless complexity to the API:

  • the name of a window is only relevant from the context of the memory map to which it is added.
  • window names may also benefit from being split into tuples, in order to let consumers of the memory map (such as a BSP generator) decide their format.

Additionally, support for integers in resource and window names is needed to represent indices. A BSP generator may choose to format them in a specific way (e.g. "foo[1]").

Guide-level explanation

Resource and window names are instances of MemoryMap.Name, a subclass of tuple which can only contain non-empty strings and non-negative integers.

Some examples:

>>> MemoryMap.Name(("rx", "status"))
Name('rx', 'status')
>>> MemoryMap.Name(("uart", 0))
Name('uart', 0)
>>> MemoryMap.Name(MemoryMap.Name(("uart", 0))
Name('uart', 0)
>>> MemoryMap.Name("foo")
Name('foo',)

Assigning resource names

The name of a resource is given by the name parameter of MemoryMap.add_resource(). For the sake of brevity, users can pass a tuple which is implicitly cast to a MemoryMap.Name.

This example shows how names are assigned to the registers of an UART peripheral:

from amaranth import *
from amaranth.lib import wiring
from amaranth.lib.wiring import In, Out

from amaranth_soc import csr
from amaranth_soc.memory import MemoryMap


class UART(wiring.Component):
    class RxConfig(csr.Register, access="rw"):
        enable: csr.Field(csr.action.RW, 1)

    class RxStatus(csr.Register, access="rw"):
        ready: csr.Field(csr.action.R,    1)
        error: csr.Field(csr.action.RW1C, 1)

    class RxData(csr.Register, access="r"):
        def __init__(self):
            super().__init__(csr.Field(csr.action.R, 8))

    csr_bus: In(csr.Signature(addr_width=10, data_width=32))

    def __init__(self):
        super().__init__()

        memory_map = MemoryMap(addr_width=10, data_width=32)
        memory_map.add_resource(self.RxConfig(), size=1, name=("rx", "config"))
        memory_map.add_resource(self.RxStatus(), size=1, name=MemoryMap.Name(("rx", "status")))
        memory_map.add_resource(self.RxData(),   size=1, name=("rx", "data"))
        memory_map.freeze()

        self.csr_bus.memory_map = memory_map

    def elaborate(self, platform):
        m = Module()
        # ...
        return m

Assigning window names

Similarly, the name of a window is given by the name parameter of MemoryMap.add_window(). Unlike resource names, window names are optional.

This example shows how names are assigned to two UART peripherals, as their memory maps are added as windows to a bus decoder memory map:

class Decoder(wiring.Component):
    csr_bus: In(csr.Signature(addr_width=20, data_width=32))

    def __init__(self):
        super().__init__()
        self._subs = dict()
        self.csr_bus.memory_map = MemoryMap(addr_width=20, data_width=32)

    def add(self, sub_bus, *, name=None, addr=None):
        self._subs[sub_bus.memory_map] = sub_bus
        return self.csr_bus.memory_map.add_window(sub_bus.memory_map, name=name, addr=addr)

    def elaborate(self, platform):
        m = Module()

        with m.Switch(self.csr_bus.addr):
            for window, name, (pattern, ratio) in self.csr_bus.memory_map.window_patterns():
                sub_bus = self._subs[window]
                with m.Case(pattern):
                    pass # ... drive the subordinate bus interface

        return m


uart_0 = UART()
uart_1 = UART()

decoder = Decoder()
decoder.add(uart_0.csr_bus, name=("uart", 0))
decoder.add(uart_1.csr_bus, name=MemoryMap.Name(("uart", 1)))

In a MemoryMap hierarchy, each resource is identified by a path. The path of a resource is a tuple ending with its name, preceded by the name of each window that contains it:

>>> for res_info in decoder.csr_bus.memory_map.all_resources():
...     print(res_info.path)
(Name('uart', 0), Name('rx', 'config'))
(Name('uart', 0), Name('rx', 'status'))
(Name('uart', 0), Name('rx', 'data'))
(Name('uart', 1), Name('rx', 'config'))
(Name('uart', 1), Name('rx', 'status'))
(Name('uart', 1), Name('rx', 'data'))

Reference-level explanation

The following changes to the amaranth_soc.memory module are made:

  • Add a MemoryMap.Name(name, /) class. It is a subclass of tuple, where:

    • name must either be a string or a tuple of strings and non-negative integers. If name is a string, it is implicitly converted to (name,).

  • The following changes to MemoryMap are made:

    • The optional name parameter of MemoryMap() is removed.
    • The MemoryMap.name property is removed.
    • The name parameter of MemoryMap.add_resource() must be a MemoryMap.Name.
    • An optional name parameter is added to MemoryMap.add_window(), which must be a MemoryMap.Name.
    • The yield values of MemoryMap.windows() are changed to window, name, (start, end, ratio).
    • The yield values of MemoryMap.window_patterns() are changed to window, name, (pattern, ratio).

  • The following changes to ResourceInfo are made:

    • The path parameter of ResourceInfo() must be a tuple of MemoryMap.Name objects.

As a consequence of this proposal, the following changes are made to other modules:

  • amaranth_soc.csr.bus and amaranth_soc.wishbone.bus:

    • The optional name parameter of Decoder() is moved to Decoder.add().

  • amaranth_soc.csr.reg:

    • The optional name parameter of Builder() is removed.

  • amaranth_soc.csr.wishbone:

    • The optional name parameter of WishboneCSRBridge() is assigned to csr_bus.memory_map (instead of wb_bus.memory_map).

Drawbacks

  • This will break codebases that make use of window names.

Rationale and alternatives

  • Providing a MemoryMap.Name class for resource and window names facilitates their validation and documentation.
    • Alternative #1: do not add a class, and use standard tuples instead. Names will have to be validated by other means.
    • Alternative #2: use MemoryMap.Name for resource names only. Window names remain limited to strings.

Prior art

  • Resource names became tuples of strings as a consequence of RFC 16. However, array indices defined with csr.Builder.Index() were cast to strings when .as_memory_map() was called.

Resolved questions

  • Should we require the presence of at least one string in MemoryMap.Name ?
    • Empty names are forbidden and transparent windows (i.e. without names) must use None instead. Further validation is deferred to consumers of the memory map (e.g. a BSP generator).
  • Should we specify the order between strings and integers ? In csr.Builder, array indices precede cluster and register names (e.g. ('bar', 0, 'foo') could be formatted as "bar.foo[0]").
    • No, this decision is left out to consumers of the memory map. They may interpret a name differently depending on what it is assigned to.

Future possibilities

None.

EnumView.matches

Summary

A matches method is added to EnumView, performing a similar function to Value.matches.

Motivation

Amaranth currently has Value.matches, which checks whether a value matches any of the given patterns. An obvious application of such a feature is using it with an enumerated value. However, as it stands, EnumView doesn't provide a corresponding method natively, requiring a cast to Value. Additionally, casting the EnumView to Value erases the enumeration type, providing no protection against matching with values from the wrong type.

This RFC proposes to fill that gap by adding a type-safe EnumView.matches method.

Guide-level explanation

The EnumView.matches method can be used to check whether an enumerated value belongs to a given set:

class Color(enum.Enum, shape=3):
    BLACK = 0
    RED = 1
    GREEN = 2
    BLUE = 4
    WHITE = 7

s = Signal(Color)
m.d.comb += is_grayscale.eq(s.matches(Color.BLACK, Color.WHITE))

Reference-level explanation

The following method is added:

  • EnumView.matches(*values): equivalent to self.as_value().matches(*values), but requires all values to be a member of the same enum as the EnumView, raising a TypeError otherwise

Drawbacks

  • more moving parts in the language
  • more general pattern matching facilities have been requested on multiple occasions, which this facility could end up redundant with

Rationale and alternatives

The proposed functionality is an obvious extension of Value.matches to the EnumView class. The proposed typechecking is consistent with current EnumView behavior.

Prior art

Value.matches, Rust matches!().

Unresolved questions

None.

Future possibilities

None for EnumView. However, there have been discussions of having more advanced pattern matching facilities in the language in general.

Stricter connections

Summary

Make it possible for lib.wiring.connect() to reject connections between ports with shapes that despite having equal widths are incompatible.

Motivation

The primary motivating use case is to be able to prevent connecting stream interfaces with incompatible payload shapes.

Guide-level explanation

lib.stream defines a basic stream interface with ready, valid and payload members. Additional metadata signals can be added by making the payload shape an aggregate. This has the advantage that such streams can be passed through standard components like FIFOs without them having to know or care about these signals.

Consider how we can make a byte-wide packetized stream by defining the payload shape as StructLayout({"data": 8, "last": 1}). The data field contains the data byte and the last field is a flag indicating that the current byte is the last in the packet.

This is not the only common way to make a packetized stream. Instead of (or in addition to) the last flag, the payload could have a first flag, indicating that the current byte is the first in the packet. Both are valid options with different semantics for different usecases.

The problem is that lib.wiring.connect() currently only checks that port members have matching widths, so a connection between a stream interface with last semantics and a stream interface with first semantics will not be rejected, despite being incompatible.

Currently, lib.data.View.eq() does no checks on the passed value and immediately forwards to self.as_value().eq(), making this legal:

>>> a = Signal(StructLayout({"data": 8, "last": 1}))
>>> b = Signal(StructLayout({"data": 8, "first": 1}))
>>> a.eq(b)
(eq (sig a) (sig b))

This RFC proposes adding a check to View.eq() that would reject direct assignments from another aggregate data structure with a non-identical layout. If such an assignment is desired, the other aggregate data structure can be explicitly passed through Value.cast() first.

Currently lib.wiring.connect() passes every signal through Value.cast() before assigning them. This results in a ValueCastable's .eq() not being called, and thereby bypassing the check proposed above.

This RFC proposes removing the Value.cast() so a ValueCastable's .eq() will be called directly.

This RFC proposes updating lib.enum.EnumView in the same manner, for the same reason, as lib.data.View.

Reference-level explanation

Modify lib.wiring.connect() to not pass port members through Value.cast(), so that a ValueCastable's .eq() will be called, allowing it to perform compatibility checks.

  • If a ValueCastable doesn't define .eq(), reject the assignment.

Modify lib.data.View.eq(other) to add the following checks:

  • If other is a ValueCastable, do Layout.cast(other.shape())
    • If a valid Layout is returned, reject the assignment if it doesn't match self.shape().
    • If Layout.cast() raises, reject the assignment.
  • Otherwise, proceed as normal.

Modify lib.enum.EnumView.eq(other) to add the following checks:

  • If other is a ValueCastable, reject the assignment if other.shape() doesn't match self.shape().
  • Otherwise, proceed as normal.

Rejected assignments are a warning in Amaranth 0.6 and becomes a hard error in Amaranth 0.7.

Drawbacks

  • Increased language complexity.

  • This will add an implied requirement for a ValueCastable to implement .eq() to be usable with lib.wiring. Currently a ValueCastable is not required to implement .eq() at all.

    • We could fall back to Value.cast().eq() when .eq() is not defined.

Rationale and alternatives

  • Signals like first and last could be added as separate ports in the stream signature, preventing incompatible connections.
    • This was already discussed in RFC 61 and decided against.
  • An explicit hook for checking compatibility between interfaces could be added, instead of relying on .eq().
    • This RFC proposes picking the low-hanging fruits first, making use of already existing mechanisms. If this is not enough, another RFC can propose an explicit hook later.

Prior art

RFC 61 already discussed the need to eventually make lib.wiring.connect() stricter to prevent the connection of stream interfaces with incompatible payloads.

Unresolved questions

None.

Future possibilities

  • A hook can still be added to allow a signature/interface to perform an explicit compatibility check, for cases where signatures have identical members but still have metadata indicating they are incompatible.
    • This hook could also allow overriding the existing checks, allowing connections where interfaces are compatible despite differences in members.
